SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing And Gear Assembly (II SSM)

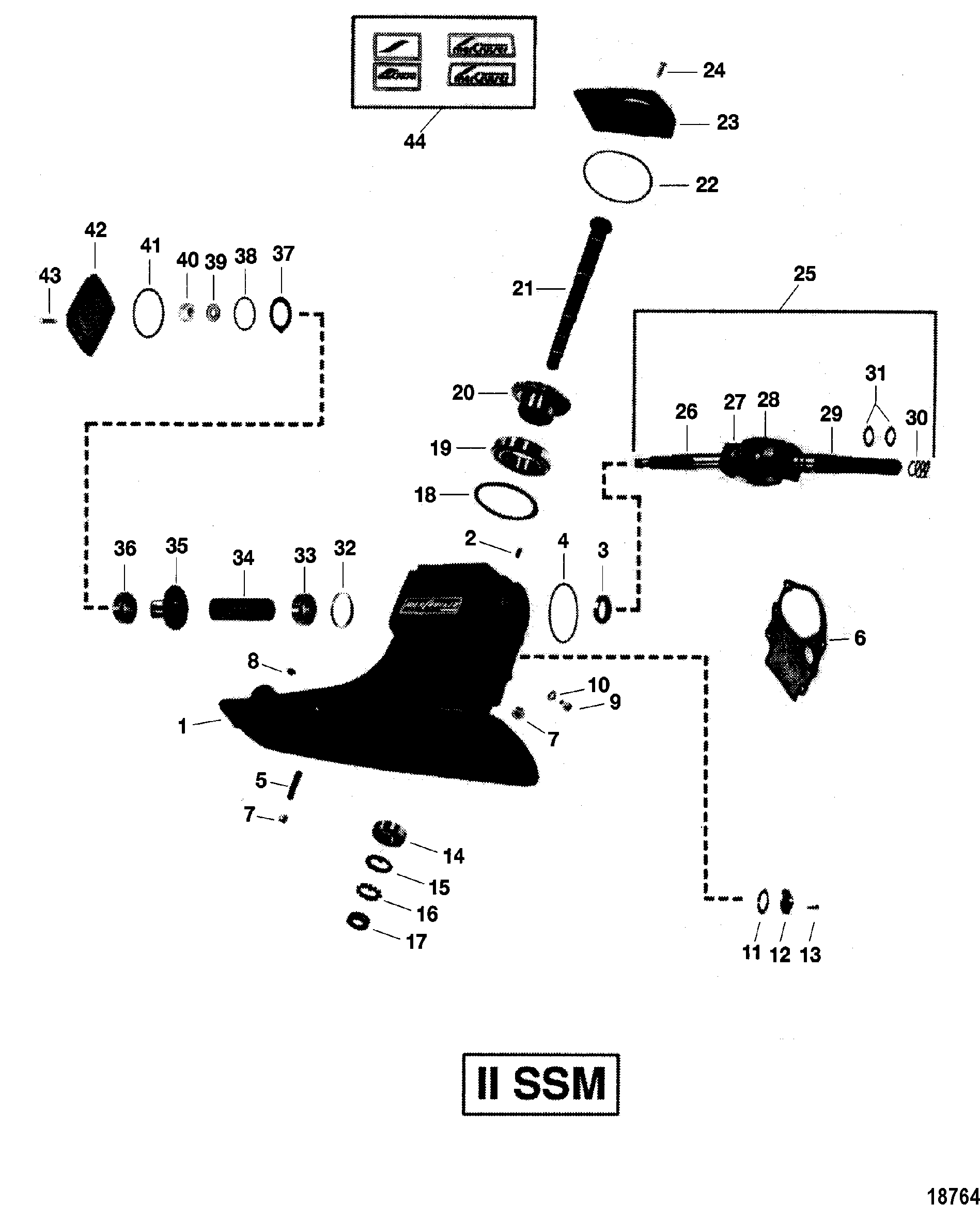

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 1571-4847A5 | HOUSING ASSEMBLY, Driveshaft | 1 | This Part is No Longer Available | ||||||
| 2 | 10-21934 | SCREW, (.375-16 x .500) | 1 | This Part is No Longer Available | ||||||
| 3 | 26-62818 | SEAL, Oil | 1 | 1 | ||||||
| 4 | 25-62817 | O-RING | 1 | 1 | ||||||
| 5 | 16-57984 | STUD (.437-20 x 2.500) | 2 | 16-34816 | ||||||
| 5 | 16-57921 | STUD, (.437-14/.437-20 x 4.00) | 4 | |||||||
| 6 | 71945 | PLATE, Bell Housing To Driveshaft Housing | 1 | This Part is No Longer Available | ||||||
| 7 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 6 | ||||||
| 8 | 19-47579 | 700-21890 | PLUG | 1 | ||||||
| 9 | 10-79953Q04 | SCREW, (.375-16 x .250) | 1 | 10-79953 | ||||||
| 10 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | |||||
| 11 | 27-669251 | GASKET | 1 | 1 | ||||||
| 12 | 89818 | COVER | 1 | This Part is No Longer Available | ||||||
| 13 | 10-55515 | SCREW, (#10-32 x .750) | 3 | This Part is No Longer Available | ||||||
| 14 | 31-38356A1 | 676-9-75108 | 700-21630 or | 700-16630 | BEARING SET, Driveshaft | 1 | ||||
| 15 | 12-62795 | WASHER, Tab | 1 | This Part is No Longer Available | ||||||
| 16 | 13-62788 | LOCKWASHER | 1 | No longer made, limited availability 1 | ||||||
| 17 | 11-41527T | NUT | 1 | No longer made, limited availability | ||||||
| 18 | 15-846353A1 | SHIM SET | AR | 15-32061A1 | ||||||
| 19 | 31-62799A1 | BEARING SET, Drive Gear | 1 | |||||||
| 20 | 43-62879T1 | GEAR, Driven, Driven (2:1 Ratio) | 1 | 43-62879T | ||||||
| 21 | 45-62793T | DRIVESHAFT | 1 | This Part is No Longer Available | ||||||
| 22 | 25-67202 | O-RING | 1 | This Part is No Longer Available 1 | ||||||
| 23 | 62911T | COVER | 1 | This Part is No Longer Available | ||||||
| 24 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 4 | |||||||
| 25 | 62782A8 | UNIVERSAL JOINT ASSEMBLY | 1 | This Part is No Longer Available (FEMALE YOKE) | ||||||
| 25 | 62782A4 | UNIVERSAL JOINT ASSEMBLY | 1 | This Part is No Longer Available (MALE YOKE) | ||||||
| 26 | 62782A6 | STUB ASSEMBLY (Gear End) | 1 | |||||||
| 27 | 75832T | 676-9-72404 | CROSS AND BEARING | 2 | 75832A2 | 1 | ||||
| 28 | 393831 | SOCKET, Center, Double | 1 | 39383T | ||||||
| 29 | 62784A1 | STUB ASSEMBLY | 1 | (COUPLING END-FEMALE YOKE) | ||||||
| 29 | 57749A1 | YOKE ASSEMBLY | 1 | (COUPLING END-MALE YOKE) | ||||||
| 30 | 24-62727 | SPRING | 1 | (COUPLING END-FEMALE YOKE) | ||||||
| 31 | 25-25439 | 676-9-76505 | O-RING, (.862 x .103) | 2 | (COUPLING END-MALE YOKE) | |||||
| 32 | 15-62833A1 | SHIM SET | AR | |||||||
| 33 | 31-38356A1 | 676-9-75108 | 700-21630 or | 700-16630 | BEARING SET, Universal Joint | 1 | ||||
| 34 | 23-62789 | SPACER | 1 | This Part is No Longer Available | ||||||
| 35 | 43-62878 | GEAR, Pinion (2:1 Ratio) | 1 | 43-62878T | 1 | |||||
| 36 | 31-54038A1 | BEARING ASSEMBLY, Tapered Roller, Pinion Gear | 1 | |||||||
| 37 | 12-62786 | WASHER, Thrust | 1 | This Part is No Longer Available | ||||||
| 38 | 15-55499A1 | SHIM ASSEMBLY | AR | |||||||
| 39 | 12-48912 | WASHER | 1 | This Part is No Longer Available 1 | ||||||
| 40 | 11-82671327 | NUT (1.00-14) | 1 | 11-90068T | 1 | |||||
| 41 | 25-39695 | O-RING | 1 | 1 | ||||||
| 42 | 62785T | COVER | 1 | This Part is No Longer Available | ||||||
| 43 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 4 | |||||||
| 44 | 37-14489A90 | DECAL SET | 1 | 37-14489A87 | 1 | |||||
| - | 1571-8945A2 | REBUILD KIT | 1 | This Part is No Longer Available |
