SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (II SSM)

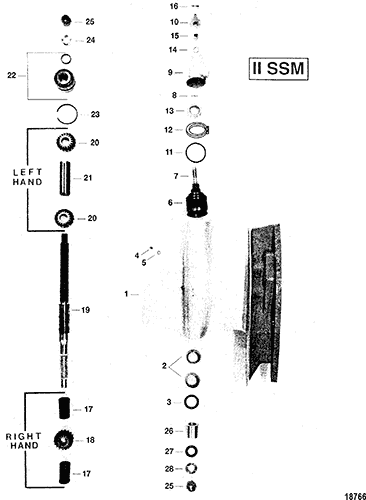

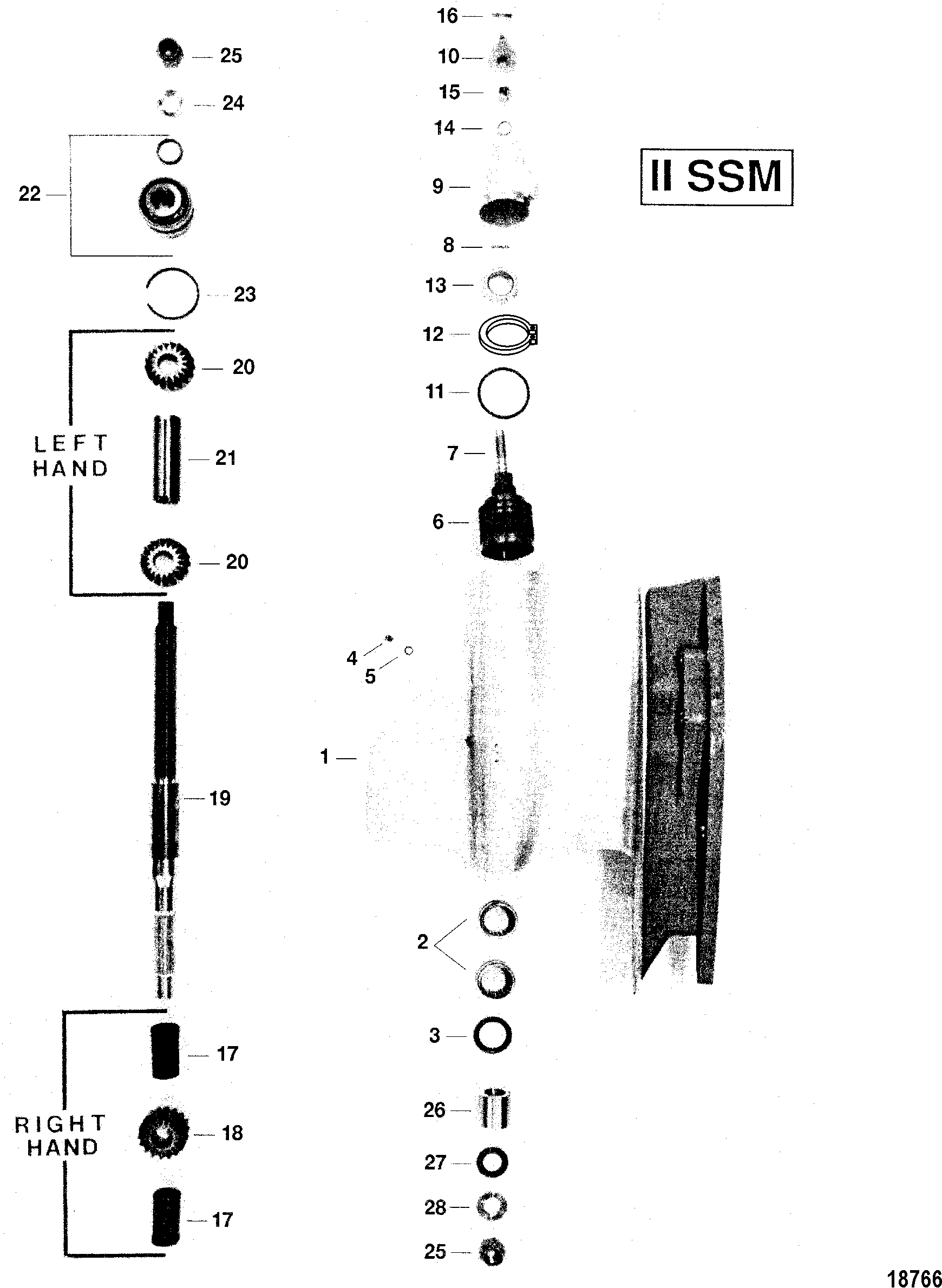

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1633-5455A5 | GEAR HOUSING ASSEMBLY (BASIC) | 1 | This Part is No Longer Available | |||||
| 2 | 31-39832T | BEARING, Roller | 2 | 31-39832 | |||||
| 3 | 26-19473 | SEAL, Oil | 3 | 1 | |||||
| 4 | 10-79953Q04 | SCREW, (.375-16 x .250) | 1 | 10-79953 | |||||
| 5 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | |||||
| 6 | 68067 | SUPPORT, Bearing | 1 | This Part is No Longer Available | |||||
| 7 | 16-97156 | STUD | 1 | This Part is No Longer Available | |||||
| 8 | 17-58998 | PIN, Roll | 1 | ||||||
| 9 | 97155 | NOSE CONE | 1 | This Part is No Longer Available | |||||
| 10 | 980361 | CAP, Nose Cone | 1 | This Part is No Longer Available | |||||
| 11 | 25-68068 | O-RING | 2 | This Part is No Longer Available 1 | |||||
| 12 | 68069 | LOCK RING | 1 | This Part is No Longer Available | |||||
| 13 | 11-68519 | NUT | 1 | This Part is No Longer Available | |||||
| 14 | 23-49539 | BUSHING | 1 | This Part is No Longer Available 1 | |||||
| 15 | 11-47379 | NUT, (.625-18) Stainless Steel | 1 | 1 | |||||
| 16 | 65700 | PLUG, Nose Cone Screw | 1 | 1 | |||||
| 17 | 68065 | SPACER (Short) | 2 | This Part is No Longer Available | |||||
| 18 | 43-68066A1 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (RH - 1.00:1 RATIO) | |||||
| 18 | 43-95041A1 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (RH - 1.125:1 RATIO) | |||||
| 19 | 44-96985 | PROPELLER SHAFT | 1 | This Part is No Longer Available | |||||
| 20 | 43-68060A2 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (LH - 1.00:1 RATIO) | |||||
| 20 | 43-95040A2 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (LH - 1.125:1 RATIO) | |||||
| 21 | 68061 | SPACER (Long) | 1 | This Part is No Longer Available | |||||
| 22 | 31-70838A2 | BEARING ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 23 | 53-68063108 | RING, Snap | AR | This Part is No Longer Available (.108 THICK) | |||||
| 23 | 53-68063109 | RING, Snap | AR | (.109 THICK) | |||||
| 23 | 53-68063110 | RING, Snap | AR | (.110 THICK) No longer made, limited availability | |||||
| 23 | 53-68063111 | RING, Snap | AR | (.111 THICK) No longer made, limited availability | |||||
| 23 | 53-68063112 | RING, Snap | AR | (.112 THICK) | |||||
| 23 | 53-68063113 | RING, Snap | AR | This Part is No Longer Available (.113 THICK) | |||||
| 23 | 53-68063114 | RING, Snap | AR | (.114 THICK) | |||||
| 23 | 53-68063115 | RING, Snap | AR | (.115 THICK) No longer made, limited availability | |||||
| 23 | 53-68063116 | RING, Snap | AR | (.116 THICK) No longer made, limited availability | |||||
| 23 | 53-68063117 | RING, Snap | AR | (.117 THICK) | |||||
| 23 | 53-68063118 | RING, Snap | AR | (.118 THICK) No longer made, limited availability | |||||
| 24 | 12-68064 | WASHER | 1 | 1 | |||||
| 25 | 11-82671127 | NUT (1.00-14) | 2 | 11-39907 | 1 | ||||
| 26 | 23-87753T | SPACER | AR | 23-87753 | This Part is No Longer Available | ||||
| 27 | 12-39820 | WASHER, Splined | 1 | 1 | |||||
| 28 | 12-39817 | WASHER, Special - Stainless Steel | 1 | 1 | |||||
| - | 1633-5455T13 | REBUILD KIT | 1 | 1633-5455A13 | This Part is No Longer Available |
