SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assy (Propshaft) (Alpha One-Ss)

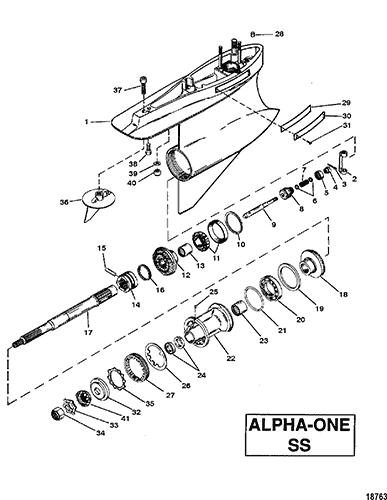

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1647-9559T5 | GEAR HOUSING ASSEMBLY (BASIC) | 1 | 1647-9559A5 | This Part is No Longer Available | ||||
| 2 | 76865 | 676-9-78132 | 700-11040 | CRANK, Shift | 1 | ||||
| 3 | 18-469501 | COTTON PIN | 1 | 18-89212 | |||||
| 4 | NSS | NOT SOLD SEPARATE, Sleeve | 1 | This Part is not sold separately (Order 19755A2) | |||||
| 5 | NSS | NOT SOLD SEPARATE, Retainer | 1 | This Part is not sold separately (Order 19755A2) | |||||
| 6 | NSS | NOT SOLD SEPARATE, Washer | 2 | This Part is not sold separately (Order 19755A2) | |||||
| 7 | NSS | NOT SOLD SEPARATE, Spring | 1 | This Part is not sold separately (Order 19755A2) | |||||
| 8 | NSS | NOT SOLD SEPARATE, Spool | 1 | This Part is not sold separately (Order 19755A2) | |||||
| 9 | NSS | NOT SOLD SEPARATE, Shaft | 1 | This Part is not sold separately (Order 19755A2) | |||||
| 10 | 15-47397A1 | 700-23220 | SHIM SET | AR | |||||
| 11 | 31-35928T1 | 676-9-75120 | 700-21590 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-35928A1 | |||
| 12 | 43-878087A4 | 700-11312 | GEAR SET | 1 | 43-17064A3 | (INCLUDES PINION & FORWARD GEARS) | |||
| 13 | 31-30895T | 676-9-75111 | 700-11420 | BEARING, Needle | 1 | 31-30895 | |||
| 14 | 52-853594T | 676-9-73474 | 700-11060 | CLUTCH | 1 | 52-66063 | |||
| 15 | 17-30632 | 676-9-78111 | 700-21131 | PIN, Cross | 1 | No longer made, limited availability | |||
| 16 | 24-30893 | 676-9-78135 | 700-11050 | SPRING | 1 | ||||
| 17 | 44-824110 | 676-9-72450 | PROPELLER SHAFT | 1 | 44-66060 | ||||
| 18 | 43-824109A1 | GEAR, Reverse | 1 | 43-42934 | |||||
| 19 | 681001 | 676-9-78106 | RING, Thrust | 1 | |||||
| 20 | 30-88957T | 676-9-75114 | 700-21620 | BEARING, Ball, Ball | 1 | 30-88957A1 | |||
| 21 | 25-31534 | 676-9-76544 | 525-25-31534 | O-RING | 1 | 1 | |||
| 22 | 73020A14 | 676-9-72601 | 700-11405 | CARRIER ASSEMBLY, Bearing | 1 | ||||
| 23 | 31-30956T | 676-9-75112 | 700-11410 | BEARING, Needle | 1 | 31-30956 | |||
| 24 | 26-76868 | 676-9-76202 | SEAL, Oil | 2 | (WITHOUT CUTTER SEAL) 1 | ||||
| 24 | 26-14077 | 676-9-76119 | 700-85130 | SEAL, Oil | 1 | (INSIDE) (WITH CUTTER SEAL) | |||
| 24 | 26-12224 | 676-9-76101 | 700-85700 | SEAL, Oil | 1 | (OUTSIDE) (WITH CUTTER SEAL) | |||
| 25 | 28-30281 | 700-11080 | KEY | 1 | |||||
| 26 | 14-79447 | 700-11380 | TAB WASHER | 1 | |||||
| 27 | 8M2011027 | 700-21120 | 525-8M2011027 | RETAINER | 1 | 79448 | |||
| 28 | 22-13820 | PIPE PLUG | 1 | ||||||
| 29 | 25-39695 | O-RING | 2 | ||||||
| 30 | 12144 | COVER, Water Passage | 2 | This Part is No Longer Available | |||||
| 31 | 10-87926 | SCREW, (#10-32 x .500) | 8 | ||||||
| 32 | 12-835467Q01 | 700-21301 | THRUST HUB | 1 | 13171 | ||||
| 33 | 14-816629Q | 700-21200 | TAB WASHER | 1 | 14-31210 | ||||
| 34 | 11-52707Q1 | 700-21230 | PROP NUT KIT, (.750-16) | 1 | 11-52707A1 | ||||
| 35 | 13-423511 | LOCKWASHER, Toothed | 1 | ||||||
| 36 | 822777Q1 | 700-12680 | TRIM TAB ASSEMBLY | 1 | 46399A1 | ||||
| 37 | 10-32470 | 700-21740 | SCREW, (.437-14 x 1.75) | 1 | |||||
| 38 | 10-30206 | 700-22430 | SCREW, (.375-16 x 1.00) Stainless Steel | 1 | |||||
| 39 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | |||||
| 40 | 11-859116 | 700-21170 | NUT, (.4375-20) | 2 | 11-134391 | ||||
| 41 | 12-31211Q03 | 700-21360 | WASHER, Splined | 1 | 12-31211A2 | ||||
| - | 26-33144A2 | 676-9-74304 | 700-87510 | SEAL KIT | 1 |
