SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Driveshaft) (II SSM)

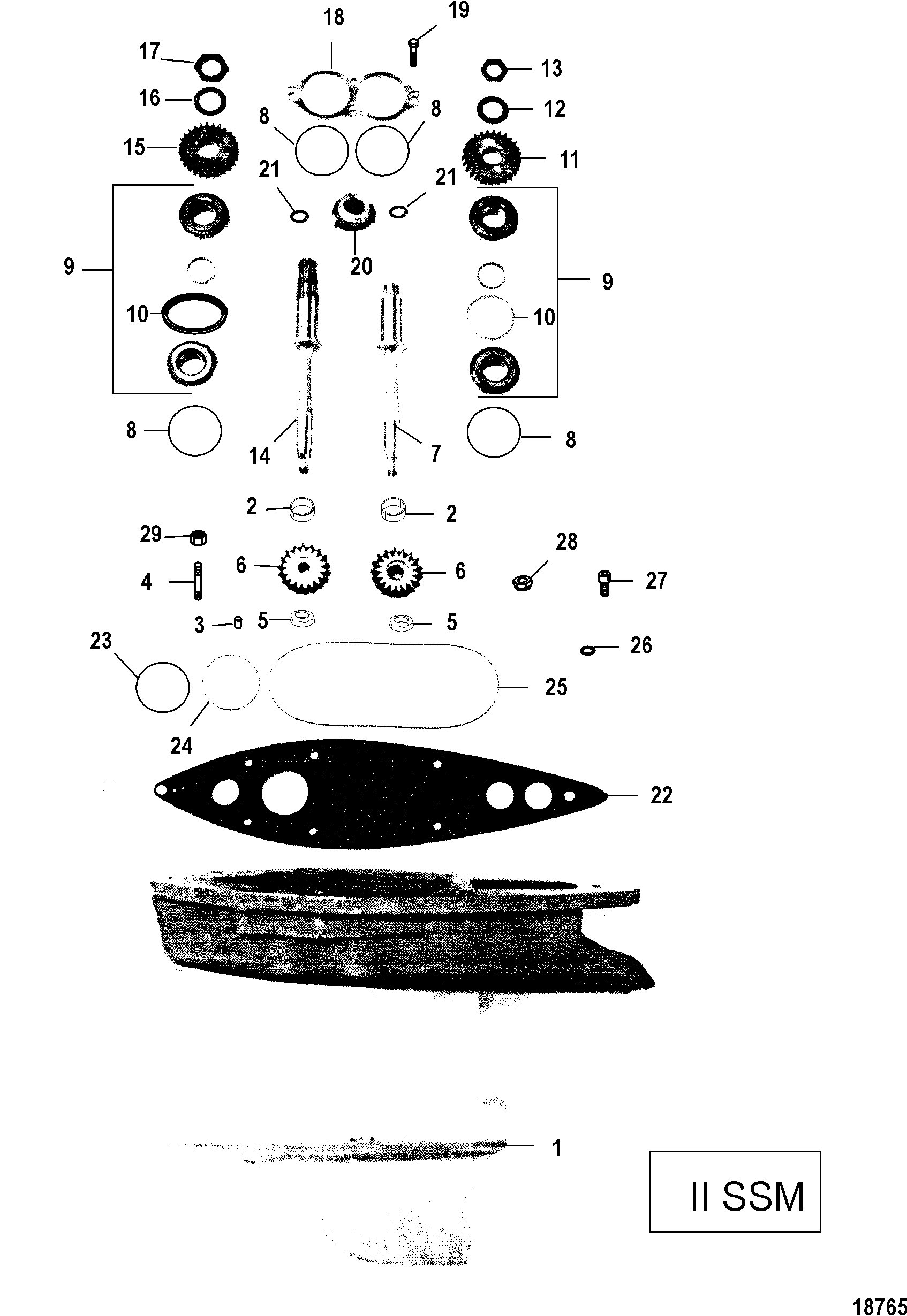

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1633-5455A5 | GEAR HOUSING ASSEMBLY | 1 | This Part is No Longer Available (BASIC) | |||||
| 2 | 31-68460 | BEARING, Needle | 2 | 1 | |||||
| 3 | 17-25104 | PIN, Dowel | 2 | This Part is No Longer Available | |||||
| 4 | 16-54674 | STUD, (.437-14/.437-20 x 2.250) | 1 | ||||||
| 5 | 11-35921 | 676-9-78103 | 700-11190 | NUT, (.625-18) | 2 | 1 | |||
| 6 | 43-68066A1 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (RH - 1.00:1 RATIO) | |||||
| 6 | 43-68060A2 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (LH - 1.00:1 RATIO) | |||||
| 6 | 43-95041A1 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (RH - 1.125:1 RATIO) | |||||
| 6 | 43-95040A2 | GEAR SET | 1 | This Part is No Longer Available (PINION AND DRIVE) (LH - 1.125:1 RATIO) | |||||
| 7 | 45-99159 | DRIVESHAFT | 1 | This Part is No Longer Available | |||||
| 8 | 15-39808A1 | SHIM ASSEMBLY | AR | No longer made, limited availability | |||||
| 9 | 31-35990A2 | BEARING ASSEMBLY, Roller | 2 | ||||||
| 10 | 23-39816 | SPACER | 2 | ||||||
| 11 | 43-68081 | GEAR, Spur (Rear) | 1 | This Part is No Longer Available | |||||
| 12 | 12-56042 | WASHER | 1 | 1 | |||||
| 13 | 11-53062 | NUT (Special) | 1 | 1 | |||||
| 14 | 45-99158 | DRIVESHAFT | 1 | This Part is No Longer Available | |||||
| 15 | 43-68079 | GEAR, Spur (Front) | 1 | This Part is No Longer Available | |||||
| 16 | 12-39820 | WASHER | 1 | 1 | |||||
| 17 | 11-53063 | NUT (Special) | 1 | 1 | |||||
| 18 | 68077 | PLATE | 1 | This Part is No Longer Available | |||||
| 19 | 10-35386 | SCREW, (.312-18 x 1.00) | 4 | 1 | |||||
| 20 | 68075A1 | COUPLING ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 21 | 53-68076 | RING, Retaining | 2 | This Part is No Longer Available | |||||
| 22 | 68072 | PLATE | 1 | This Part is No Longer Available | |||||
| 23 | 25-54029 | O-RING, (2.800 x .103) | 1 | 1 | |||||
| 24 | 25-54030 | O-RING, (2.987 x .103) | 1 | 1 | |||||
| 25 | 25-68073 | O-RING | 1 | This Part is No Longer Available 1 | |||||
| 26 | 25-68074 | O-RING | 1 | This Part is No Longer Available 1 | |||||
| 27 | 10-47557 | SCREW, (.500-13 x 1.500) | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 28 | 11-35053 | NUT, (.437-20) | 2 | 1 | |||||
| 29 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 5 | 1 | ||||
| - | 1633-5455T13 | REBUILD KIT | 1 | 1633-5455A13 | This Part is No Longer Available |
