SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing And Gear Assy (IIIa SSM)

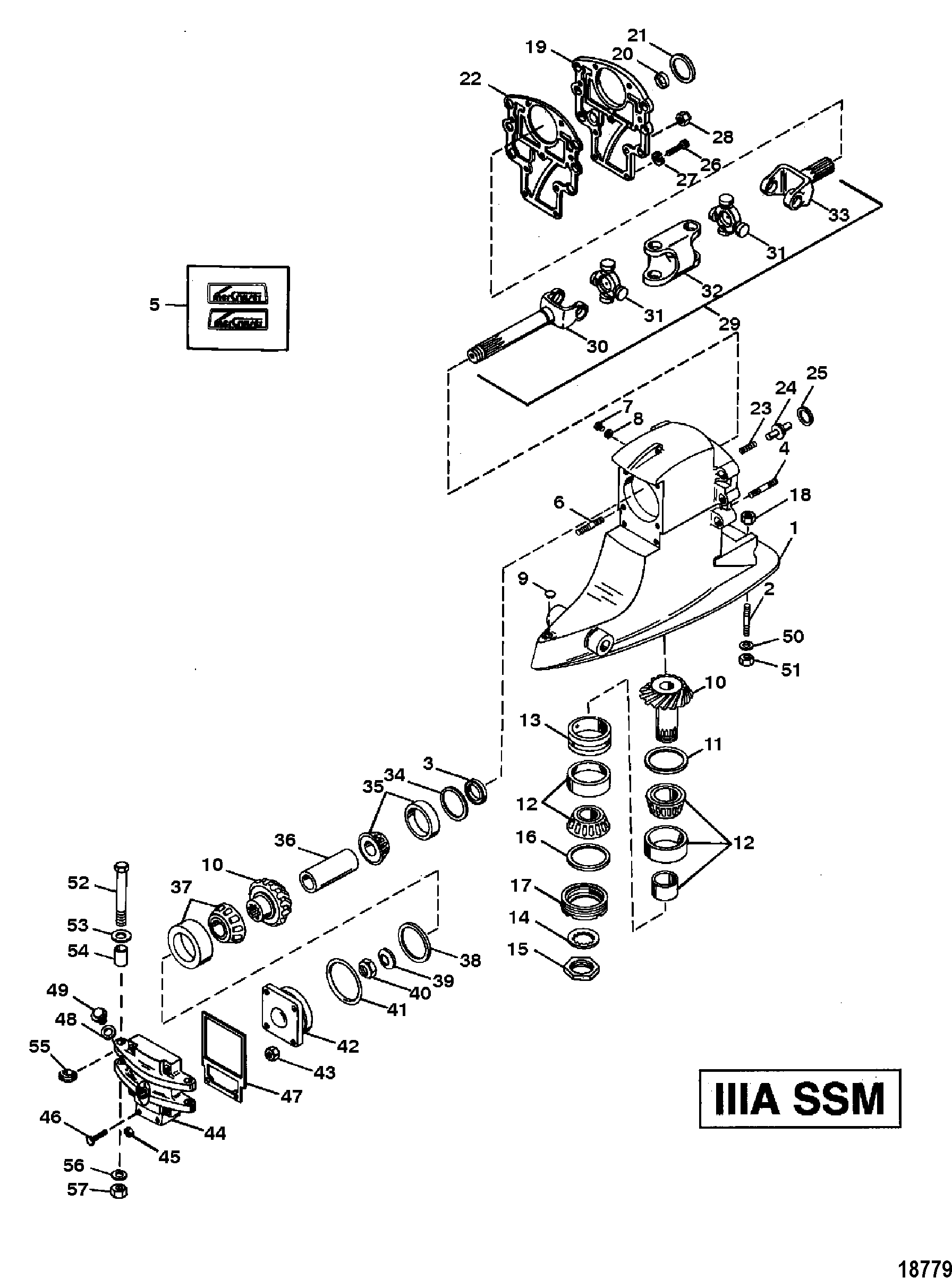

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1567-817092A12 | HOUSING ASSEMBLY, Driveshaft | 1 | This Part is No Longer Available | |||||
| 2 | 16-57985 | STUD (2.810) | 6 | ||||||
| 3 | 26-38105 | SEAL, Oil | 1 | 1 | |||||
| 4 | 16-57932 | STUD, (.375-16/.375-24 x 1.750) | 7 | ||||||
| 5 | 37-14489A90 | DECAL SET | 1 | 1 | |||||
| 6 | 16-57984 | STUD, (.437-14/.437-20 x 2.380) | 2 | ||||||
| 6 | 16-57983 | STUD (.437-14 x 2.875) | 2 | ||||||
| 7 | 22-8M0058389 | 700-21731 | 525-22-8M0058389 | SCREW, Magnetic, Vent (.375-16) | 1 | 22-67892 | 1 | ||
| 8 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | 1 | |||
| 9 | 19-47579 | 700-21890 | PLUG | 1 | |||||
| 10 | 43-818653A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (1.00:1 RATIO) | |||||
| 10 | 43-818654A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (1.18:1 RATIO) | |||||
| 10 | 43-818655A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (1.25:1 RATIO) | |||||
| 10 | 43-847823A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (1.31:1 RATIO) New forgings from Mercury prints | |||||
| 10 | 43-818656A2 | GEAR SET (Pinion and Drive) | 1 | 43-818656A1 | This Part is No Longer Available (1.33:1 RATIO) | ||||
| 10 | 43-818657A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (1.40:1 RATIO) | |||||
| 10 | 43-847825A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (1.44:1 RATIO) | |||||
| 10 | 43-848150T1 | GEAR SET (Pinion and Drive) | 1 | 43-848150A1 | This Part is No Longer Available (1.50:1 RATIO) | ||||
| 11 | 15-19032A1 | SHIM SET | AR | (.002 THRU .035 THICK) | |||||
| 11 | 15-19032A2 | SHIM SET | AR | (.036 THRU .048 THICK) | |||||
| 12 | 31-19182T2 | BEARING ASSEMBLY, Roller | 1 | 31-19182A2 | 1 | ||||
| 13 | 23-18998 | SPACER | 1 | ||||||
| 14 | 12-817303 | WASHER | 1 | no longer made, limited availability 1 | |||||
| 15 | p-43821-nut-mercruiser-11-19039.aspx | NUT (Special) | 1 | 1 | |||||
| 16 | 23-18997 | SPACER | 1 | ||||||
| 17 | 816230 | RETAINER | 1 | This Part is No Longer Available | |||||
| 18 | 11-47302 | NUT, (.562-18) Stainless Steel | 1 | ||||||
| 19 | 58619A1 | COVER ASSEMBLY (Front) | 1 | This Part is No Longer Available | |||||
| 20 | 26-48443 | SEAL, Oil | 1 | 1 | |||||
| 21 | 25-26722 | 700-82240 | O-RING | 1 | 1 | ||||
| 22 | 27-48407 | GASKET | 1 | ||||||
| 23 | 24-48442 | SPRING | 1 | ||||||
| 24 | 20-48219 | CHECK VALVE | 1 | ||||||
| 25 | 25-48452 | QUAD RING | 1 | 1 | |||||
| 26 | 10-90042 | SCREW, (.437-14 x 1.500) Stainless Steel | 2 | no longer made, limited availability | |||||
| 27 | 13-47659 | LOCKWASHER, (.437) | 2 | ||||||
| 28 | 11-826709113 | NUT, (.375-24) | 7 | 11-34863 | |||||
| 29 | 44253A1 | UNIVERSAL JOINT ASSEMBLY | 1 | ||||||
| 30 | 44271 | YOKE (Gear End) | 1 | This Part is No Longer Available | |||||
| 31 | 48153 | CROSS AND BEARING ASSEMBLY | 2 | ||||||
| 32 | 63575T | SOCKET | 1 | 63575 | This Part is No Longer Available | ||||
| 33 | 44253 | YOKE (Coupling End) | 1 | This Part is No Longer Available | |||||
| 34 | 15-36178A02 | SHIM SET | AR | 15-36178A1 | |||||
| 35 | 31-39908T1 | BEARING ASSEBMLY, Tapered Roller | 1 | 31-39908A1 | 1 | ||||
| 36 | 8M0050924 | SPACER | 1 | 23-47305 | |||||
| 37 | 31-34804T3 | BEARING ASSEMBLY, Tapered Roller | 1 | 31-34804A3 | 1 | ||||
| 38 | 15-34822A1 | SHIM SET | AR | ||||||
| 39 | 12-53212 | WASHER | 1 | 1 | |||||
| 40 | 11-82671327 | NUT (1.00-14) | 1 | 11-90068T | 1 | ||||
| 41 | 25-47291 | O-RING | 1 | 1 | |||||
| 42 | 47314 | RETAINER | 1 | This Part is No Longer Available | |||||
| 43 | v | NUT, (.437-20) | 4 | 1 | |||||
| 44 | 951061 | BRACKET, Back Cover | 1 | This Part is No Longer Available | |||||
| 45 | 11-35053 | NUT, (.437-20) | 4 | 1 | |||||
| 46 | 10-842787 | SCREW, (.375-16 x 2.00) | 2 | 10-47432 | |||||
| 47 | 27-53058 | GASKET | 1 | 1 | |||||
| 48 | 25-90196 | O-RING, (.921 x .139) | 1 | 1 | |||||
| 49 | 22-320181 | PLUG | 1 | 22-32018 | 1 | ||||
| 50 | 12-180451 | WASHER | 6 | ||||||
| 51 | 11-47302 | NUT, (.562-18) Stainless Steel | 6 | ||||||
| 52 | 10-677551 | SCREW, (.500-20 x 4.500) | 2 | ||||||
| 53 | 12-540121 | WASHER, (.530 x .880 x .104) 630 Stainless Steel | 2 | ||||||
| 54 | 23-85322 | SPACER | 2 | This Part is No Longer Available | |||||
| 55 | 23-840229 | SPACER | 2 | 23-85321 | |||||
| 56 | 12-24501 | WASHER | 2 | ||||||
| 57 | 11-35000 | NUT, (.500-20) Stainless Steel | 2 | ||||||
| - | 1567-817092T11 | REBUILD KIT | 1 | 1567-817092A11 | This Part is No Longer Available |
