SSM II-III-IV-V 1982-1995 - All Serials - Reservior Bottle-Standoff Box

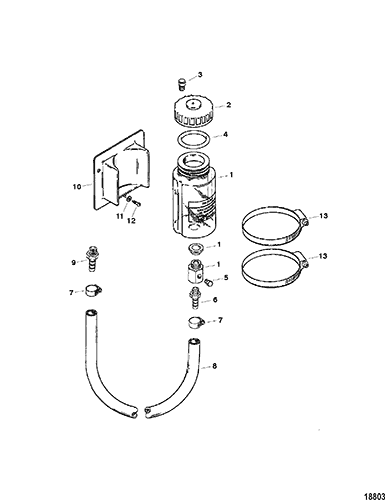

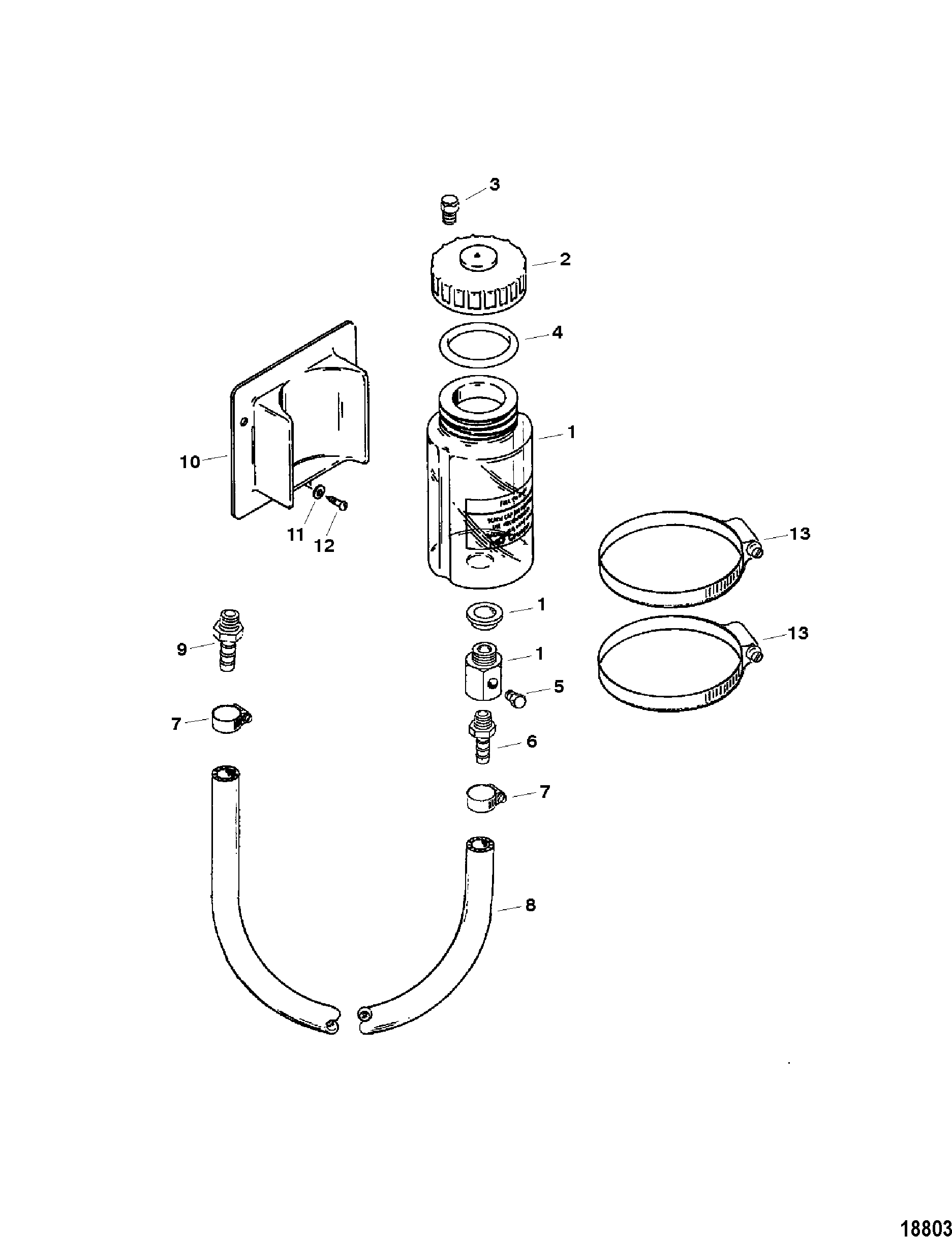

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 69622A12 | BOTTLE ASSEMBLY, Reservior | 1 | ||||||
| 2 | 21-67909A2 | VALVE KIT, Reservior | 1 | ||||||
| 3 | 22-328022 | PLUG, Pipe (.125-27) | 1 | 22-32802 | |||||
| 4 | 27-69620 | GASKET | 1 | ||||||
| 5 | 22-328022 | PLUG, Pipe (.125-27) | 1 | 22-32802 | |||||
| 6 | 22-89772 | CONNECTOR, (.125-27) | 1 | ||||||
| 7 | 54-815504104 | CLAMP, Worm Gear | 2 | ||||||
| 8 | 32-688941 | HOSE, (48.00 Inches Bulk) (48.00 In.) | 1 | ||||||
| 9 | 22-70834 | CONNECTOR, (.375-18) Straight - Brass | 1 | ||||||
| 10 | 67896 | BRACKET, Reservior | 1 | ||||||
| 11 | 12-58198 | WASHER, (.188 x .438 x .050) | 3 | ||||||
| 12 | 10-22793 | SCREW, (#9-14 x .875), Wood | 3 | ||||||
| 13 | 54-815504456 | CLAMP, Worm Gear | 2 |
