SSM II-III-IV-V 1982-1995 - All Serials - Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)

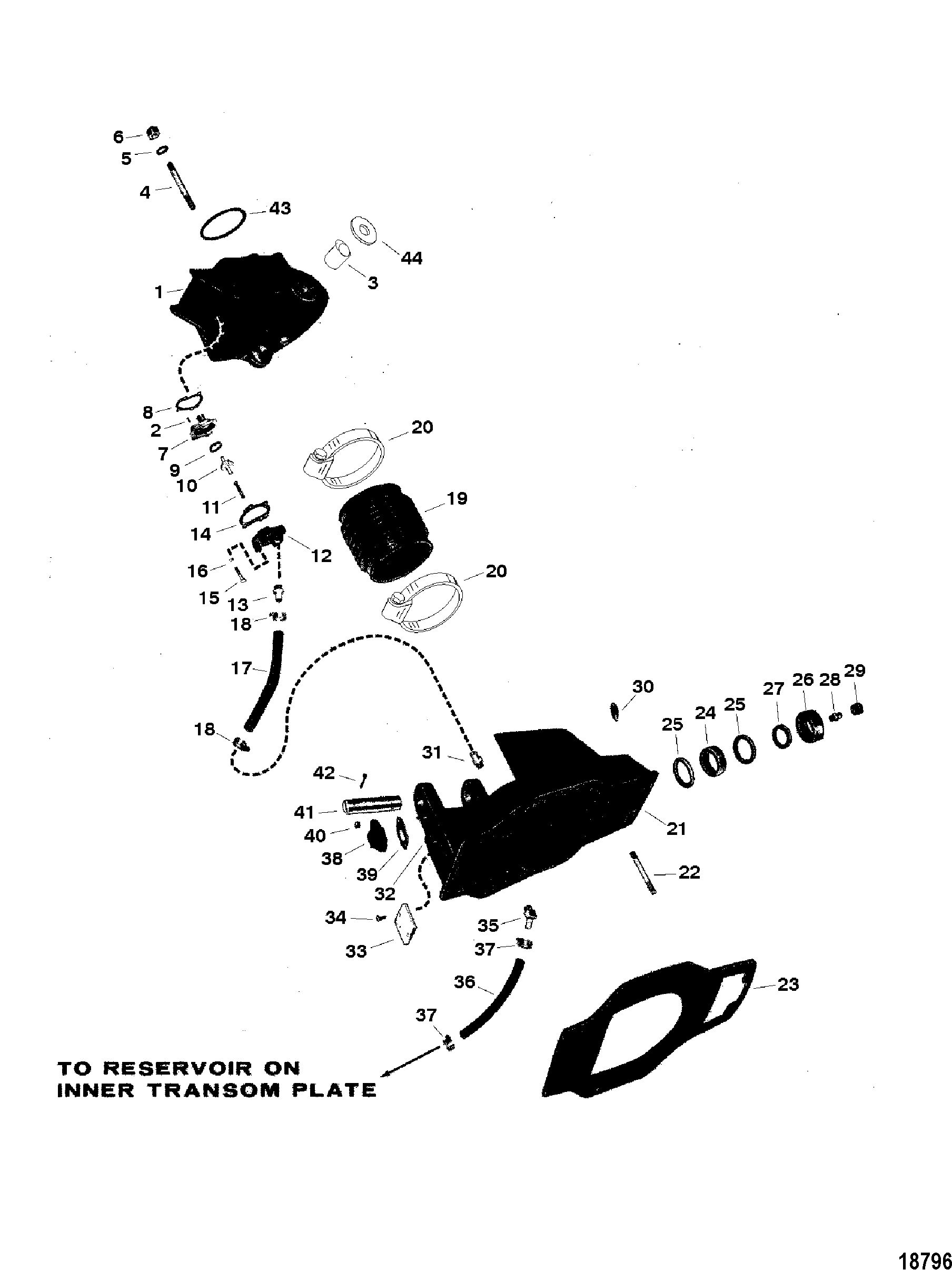

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 814452T6 | BELL HOUSING ASSEMBLY | 1 | 814452A6 | |||||
| 2 | 17-48450 | PIN, Dowel | 2 | ||||||
| 3 | 23-814649 | BUSHING, Hinge Pin | 2 | 23-814641 | |||||
| 4 | 16-57987 | STUD (.625-18 x 4.310) | 6 | ||||||
| 5 | 12-47428 | WASHER, (.660 x 1.120 x .141) Stainless Steel | 6 | ||||||
| 6 | 11-47379 | NUT, (.625-18) Stainless Steel | 6 | ||||||
| 7 | 48124 | GUIDE, Valve | 1 | This Part is No Longer Available | |||||
| 8 | 27-48363 | GASKET, Valve Guide | 1 | ||||||
| 9 | 25-48452 | QUAD RING | 1 | ||||||
| 10 | 20-48219 | CHECK VALVE | 1 | ||||||
| 11 | 24-48442 | SPRING | 1 | ||||||
| 12 | 48163A1 | COVER ASSEMBLY, Valve Guide | 1 | ||||||
| 13 | 22-47841 | FITTING, (.375-18 x .500 ) | 1 | ||||||
| 14 | 27-48363 | GASKET, Valve Guide | 1 | ||||||
| 15 | 10-69067 | SCREW, (.250-20 x 1.375) | 4 | ||||||
| 16 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 17 | 32-48458 | HOSE | 1 | ||||||
| 18 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 19 | 47370A1 | BELLOWS | 1 | ||||||
| 20 | 54-815504388 | CLAMP, Worm Gear | 2 | ||||||
| 21 | 815228T19 | HOUSING ASSEMBLY, Gimbal | 1 | 815228A19 | This Part is No Longer Available | ||||
| 22 | 16-57988 | STUD (.500 x 5.375) | 8 | ||||||
| 23 | 27-47366T | GASKET, Gimbal Housing | 1 | 27-47366 | |||||
| 24 | 31-30457 | BEARING (Lower) | 1 | This Part is No Longer Available No longer made, limited availability | |||||
| 25 | 26-31851 | SEAL, Oil | 2 | ||||||
| 26 | 31-21638 | BEARING (Upper) | 1 | ||||||
| 27 | 26-32121 | SEAL, Oil | 1 | ||||||
| 28 | 22-74036 | FITTING, Grease | 1 | ||||||
| 29 | 19-77633Q | LUBRICAP | 1 | 19-77633 | |||||
| 30 | 37-1368211 | DECAL | 1 | ||||||
| 31 | 22-47841 | FITTING, (.375-18 x .500 ) | 1 | ||||||
| 32 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 2 | ||||||
| 33 | 34762A1 | PLATE ASSEMBLY | 1 | ||||||
| 34 | 10-34763 | SCREW, (#12-24 x .750) | 2 | ||||||
| 35 | 22-38565 | FITTING, (.375-18) | 1 | ||||||
| 36 | 32-8M0062669 | HOSE (20.500 In.) | 1 | 32-9331512 | |||||
| 37 | 54-180761 | CLAMP, Worm Gear | 2 | ||||||
| 38 | 47347 | CONNECTOR | 1 | ||||||
| 39 | 27-476441 | GASKET | 1 | ||||||
| 40 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 41 | 17-814646 | PIN, Swivel | 1 | ||||||
| 42 | 18-47381 | COTTER PIN | 1 | ||||||
| 43 | 25-31534 | O-RING | 1 | ||||||
| 44 | 12-814640 | WASHER, Hinge Pin | 2 |
