SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (IV SSM)

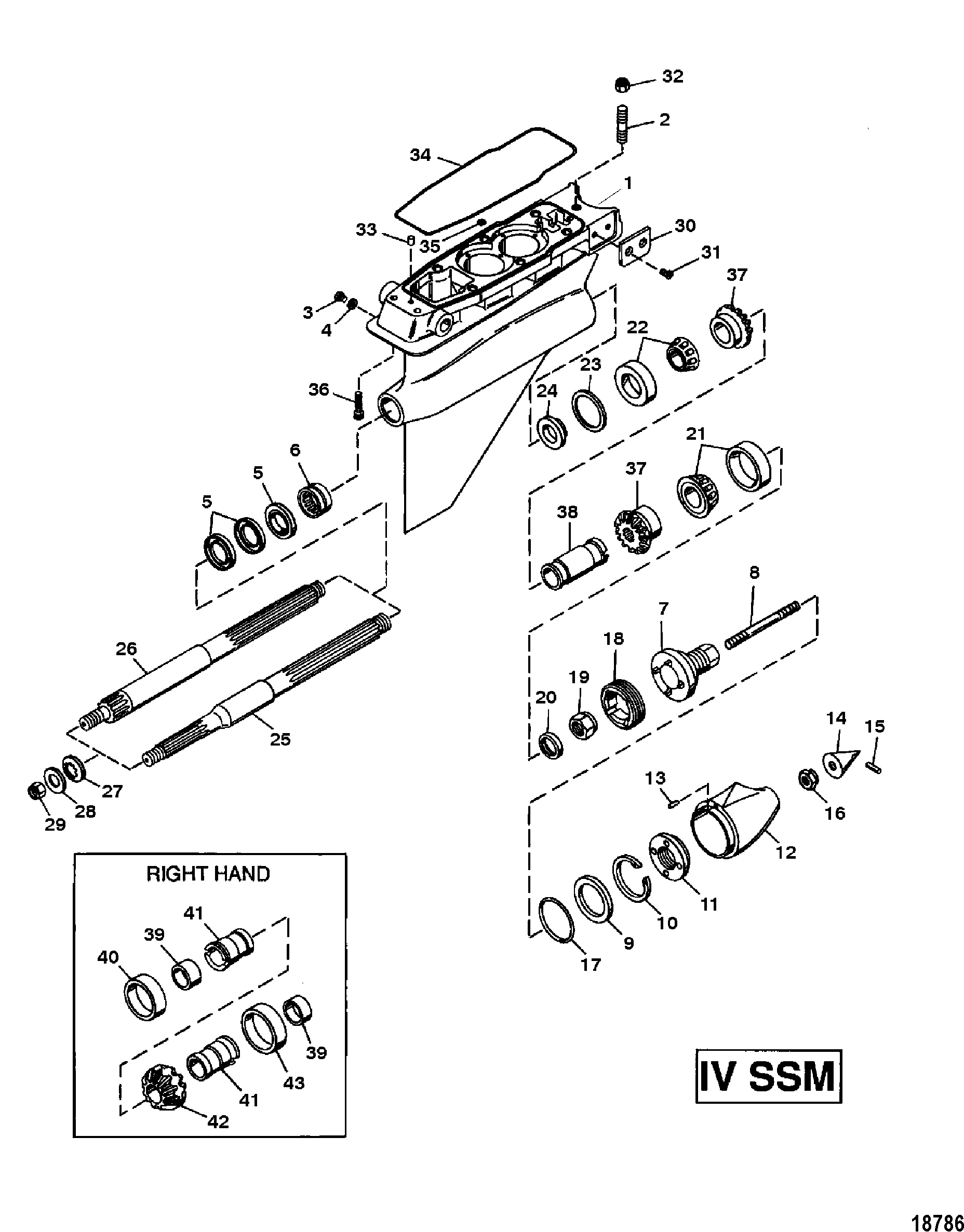

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1673-812422A4         GEAR HOUSING ASSEMBLY 1 1664-9295A5 This Part is No Longer Available (BASIC)
2 16-57985         STUD (2.810) 1 16-579861
3 10-79953Q04         SCREW, (.375-16 x .250), Vent 1 10-79953
4 12-191833       525-12-191833 WASHER, Fiber 1 12-19183
5 26-19473         SEAL, Oil 3
1
6 31-39832T         BEARING, Roller 1 31-39832 1
7 53061         ANCHOR, Stud 1   This Part is No Longer Available
8 16-530641         STUD (7.280) 1   This Part is No Longer Available
9 12-39821         WASHER 1   This Part is No Longer Available
10 53-35128         RING, Retaining 1

11 39803         COVER 1   This Part is No Longer Available
12 11353         NOSE CONE 1

13 17-30282         PIN 1

14 98036         CAP, Nose Cone 1

15 65700         PLUG 1
1
16 11-22339

700-28360 525-11-22339 NUT, (.625-18) 1

17 25-39828         O-RING 1
1
18 11-53060         NUT 1

19 11-39825         NUT (1.250-12) 1
1
20 23-846409         WASHER 1 12-42262 1
21 31-39772T1         BEARING, Roller 1 31-39772A1
22 31-39770T1         BEARING, Roller 1 31-39770A1
23 15-39809A1         SHIM SET AR

24 12-39818         WASHER 1   This Part is No Longer Available
25 44-85187T         PROPELLER SHAFT (1.370 OD) 1 44-85187 This Part is No Longer Available
26 44-12049         PROPELLER SHAFT (1.750 OD) 1   This Part is No Longer Available
27 12-39820         WASHER 1
1
28 12-39817         WASHER, Special - Stainless Steel 1
1
29 11-82671127         NUT (1.00-14) 1 11-39907 1
30 113931         WEAR PAD 2   This Part is No Longer Available
31 10-11601         SCREW, (.312-18 x .750) Stainless Steel 4

32 11-47302         NUT, (.562-18) Stainless Steel 1
1
33 17-43044         PIN, Dowel, Locating 2 17-20033
34 25-120001         O-RING 1
1
35 25-36390         O-RING 6
1
36 10-873702         SCREW, (.500-13 x 3.00) 2

37 43-16768A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (LH - 1.00:1 RATIO)
37 43-78095A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (LH - 1.125:1 RATIO)
38 23-53070         SPACER 1
(LH GEAR SET)
39 23-53067         SPACER 2   This Part is No Longer Available (RH GEAR SET)
40 23-53068         SPACER 1   This Part is No Longer Available (RH GEAR SET)
41 91846         SPACER 2
(RH GEAR SET)
42 43-16769A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (RH - 1.00:1 RATIO)
42 43-78096A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (RH - 1.125:1 RATIO)
43 23-53066         SPACER 1   This Part is No Longer Available (RH GEAR SET)
- 1664-8509A13         REBUILD KIT 1   This Part is No Longer Available
