SSM II-III-IV-V 1982-1995 - All Serials - Hydraulic Pump And Brackets (III-IV-V) (Oildyne)

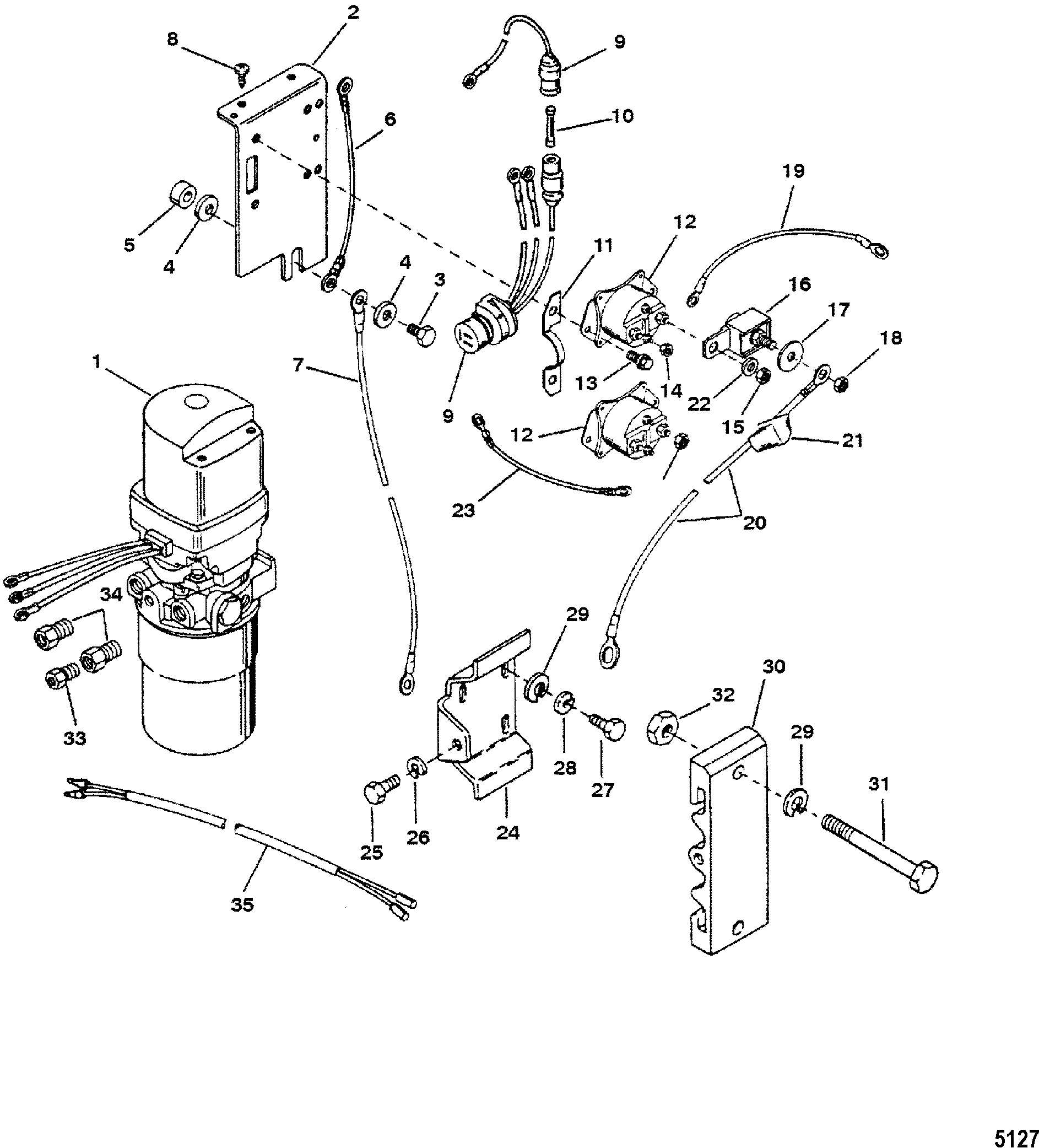

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 846859A4 | PUMP ASSEMBLY, Hydraulic (COMPLETE) | 1 | ||||||
| 1 | 8M0051203 | PUMP ASSEMBLY, Hydraulic | 1 | 818161A4 | |||||
| 2 | 818567 | BRACKET | 1 | ||||||
| 3 | 10-38837 | SCREW, (.312-18 x 1.12) | 1 | ||||||
| 4 | 12-57792 | WASHER | 2 | ||||||
| 5 | 23-34948 | SPACER | 1 | ||||||
| 6 | 84-65999A12 | CABLE ASSEMBLY, Ground | 1 | ||||||
| 7 | 84-79138A9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative | 1 | ||||||
| 8 | 10-92051 | SCREW, (10-16 x .75) | 2 | ||||||
| 9 | 84-79147A5 | HARNESS ASSEMBLY | 1 | ||||||
| 10 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 11 | 88075 | RETAINER | 1 | ||||||
| 12 | 89-853654A1 | SOLENOID | 2 | ||||||
| 13 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 4 | ||||||
| 14 | 11-20110 | NUT, (#10-32) | 4 | ||||||
| 15 | 11-26484 | NUT, (.312-18) | 4 | ||||||
| 16 | 88-79023T10 | FUSE ASSEMBLY, 110 Ampere | 1 | 79023A10 | |||||
| 17 | 12-96457 | WASHER, Phenolic (.27 x .81 x .062) | 1 | ||||||
| 18 | 11-21825 | NUT, (.250-28) | 1 | ||||||
| 19 | 84-65999A11 | CABLE ASSEMBLY | 1 | ||||||
| 20 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive | 1 | ||||||
| 21 | 46265 | BOOT | 4 | ||||||
| 22 | 12-22753 | WASHER | 4 | ||||||
| 23 | 84-79139A26 | CABLE ASSEMBLY, Red (RED) | 1 | ||||||
| 24 | 87760T | MOUNTING PLATE | 1 | ||||||
| 25 | 10-39349 | SCREW, (.312-18 x .750) Stainless Steel | 1 | ||||||
| 26 | 13-26993 | LOCKWASHER, (.312) | 1 | ||||||
| 27 | 10-90271 | SCREW, (.375-16 x .62) | 2 | ||||||
| 28 | 13-58643 | LOCKWASHER, (.375) | 2 | ||||||
| 29 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 4 | ||||||
| 30 | 87762 | BRACKET | 1 | ||||||
| 31 | 10-63826 | SCREW, (.375-16 x 2.50) | 2 | ||||||
| 32 | 11-82670912 | NUT, (.375-16) Stainless Steel | 2 | ||||||
| 33 | 22-818200 | FITTING | 1 | ||||||
| 34 | 22-77366 | FITTING | 2 | ||||||
| 35 | 84-65017A14 | HARNESS ASSEMBLY | 1 |
