SSM II-III-IV-V 1982-1995 - All Serials - Transom Plate And Shift Cable (Alpha)

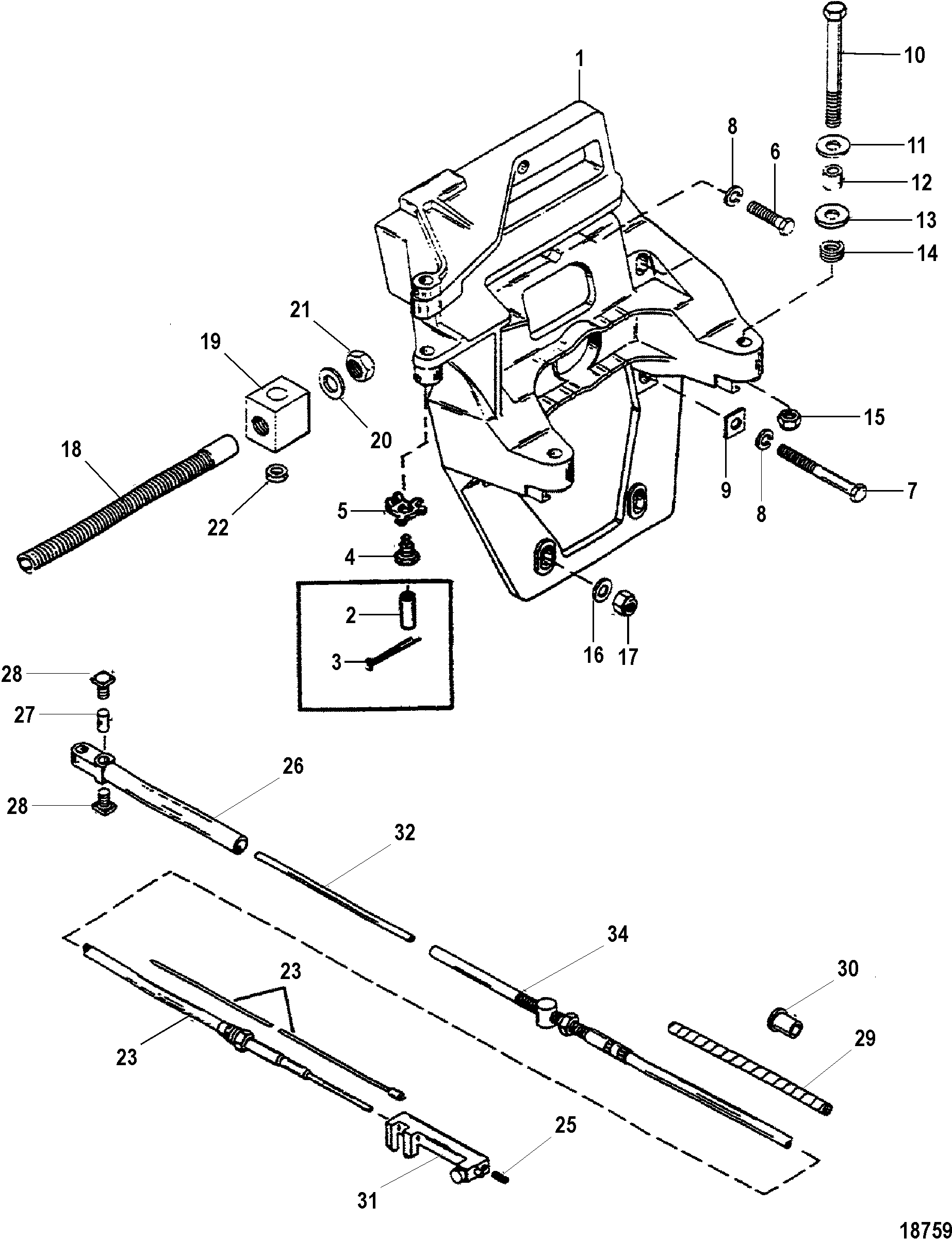

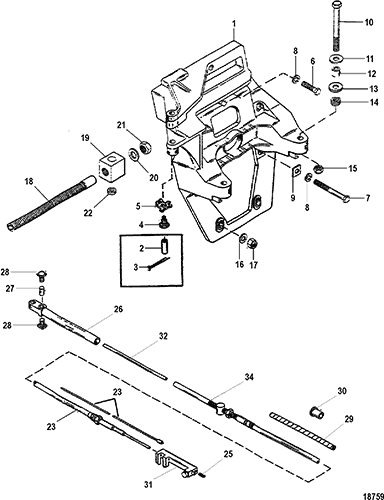

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 44117A8 | PLATE ASSEMBLY, Transom | 1 | ||||||
| 2 | 17-99938 | PIN, SWIVEL BLOCK (EARLY MODELS) | 2 | No longer made, limited availability | |||||
| 3 | 18-36377 | COTTER PIN, RETAINING PIN (EARLY MODELS) | 2 | no longer made, limited availability | |||||
| 4 | 10-42253 | BOLT, SWIVEL BLOCK (LATER MODELS) | 2 | ||||||
| 5 | 14-42254 | WASHER, PIVOT BOLT (LATER MODELS) | 2 | ||||||
| 6 | 10-37269 | SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING | 2 | ||||||
| 7 | 10-37268 | SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING | 2 | ||||||
| 8 | 13-32993 | LOCKWASHER, (.437), TRANSOM PLATE SCREW | 4 | ||||||
| 9 | 12-37271 | WASHER, SQUARE - TRANSOM PLATE SCREW | 2 | ||||||
| 10 | 10-97934 | 700-19310 | SCREW, (.500-20 x 5.370) Special, TRANSOM PLATE TO FLYWHEEL HOUSING | 2 | 4 | ||||
| 11 | 12-35777 | 700-19320 | WASHER, (.5156 x 1.375 x .125) Aluminium, TRANSOM PLATE SCREW | 2 | 4 | ||||
| 12 | 23-99299 | 700-19340 | SPACER, (.520 x .870 x .630), TRANSOM PLATE SCREW | 2 | 4 | ||||
| 13 | 12-32834 | 700-30020 | WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW (EARLY MODELS) | 2 | 4 | ||||
| 14 | 13-33734 | 700-19330 | LOCKWASHER, (.500), TRANSOM PLATE SCREW | 2 | 4 | ||||
| 15 | 11-863332 | 700-19350 | NUT, (.500-20), TRANSOM PLATE SCREW | 2 | 11-99298 | ||||
| 16 | 12-21900 | WASHER, GIMBAL HOUSING BOLT | 2 | ||||||
| 17 | 11-34087 | NUT, GIMBAL HOUSING BOLT | 2 | ||||||
| 18 | 96400 | TUBE, Steering (NON POWER STEERING) | 1 | ||||||
| 19 | 95846 | SWIVEL BLOCK (NON POWER STEERING) | 1 | ||||||
| 20 | 12-37985 | WASHER, STEERING TUBE (NON POWER STEERING) | 1 | This Part is No Longer Available | |||||
| 21 | 11-37984 | NUT, (.875-14), STEERING TUBE (NON POWER STEERING) | 1 | ||||||
| 22 | 23-95803 | BUSHING, BLOCK (NON POWER STEERING) | 2 | ||||||
| 23 | 865436A02 | 700-21451 | CABLE ASSEMBLY, Shift | 1 | 19543A8 | 11 | |||
| 25 | 10-31700 | 676-9-72152 | 700-21090 | SCREW, (.250-28 x .750), SHIFT CABLE | 1 | 11 | |||
| - | 43433A01 | GUIDE KIT | 1 | ||||||
| 26 | 43433 | 676-9-72150 | 700-21430 | GUIDE, SHIFT CABLE | 1 | 11 | |||
| 27 | 43436 | 700-21432 | ANCHOR, SHIFT CABLE | 1 | 11 | ||||
| 28 | 10-20518 | 676-9-72164 | 700-21433 | SET SCREW, (#8-32), ANCHOR | 2 | 11 | |||
| 29 | 38473 | 700-21462 | WRAPPING, Spiral, SHIFT CABLE | 1 | 11 | ||||
| 30 | 14705 | 700-21463 | INSERT, NYLON - SHIFT CABLE | 1 | 11 | ||||
| 31 | 8507522 | SLIDE, SHIFT CABLE | 1 | 8507521 | 11 | ||||
| 32 | 32-38377 | TUBE, SHIFT CABLE (EARLY MODELS ONLY) | 1 | ||||||
| - | 10-97934A1 | 700-21810 | BOLT KIT | 1 | |||||
| - | 865436A03 | CABLE KIT, Shift | 1 | 19543T1 |
