SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assy (Driveshaft) (Alpha One-Ss)

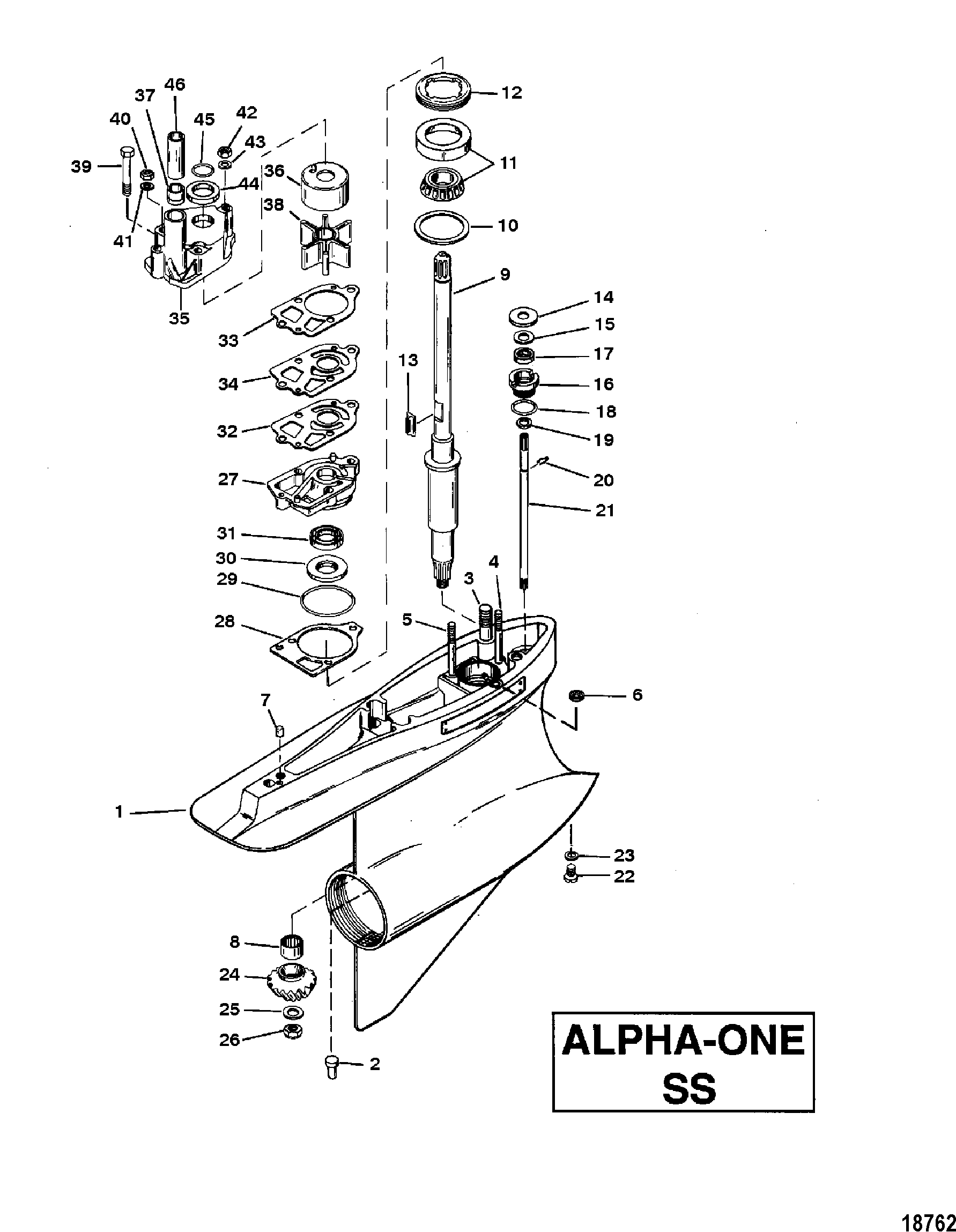

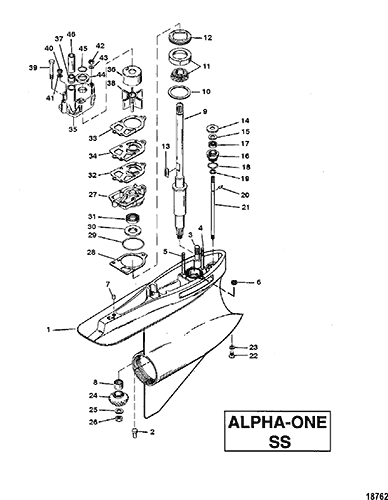

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1647-9559T5 | GEAR HOUSING ASSEMBLY (BASIC) | 1 | 1647-9559A5 | This Part is No Longer Available | ||||
| 2 | 17-379721 | PIN | 1 | ||||||
| 3 | 16-56298 | STUD (.437-14 x 1.970) | 2 | ||||||
| 4 | 16-56297 | STUD, (.312 x 3.38) | 1 | No longer made, limited availability | |||||
| 5 | 16-30667 | 676-9-78143 | STUD, (.250-20/.250-28 x 3.125) | 2 | |||||
| 6 | 26-455771 | 525-26-455771 | SEAL | 1 | 26-45577 | 1 | |||
| 7 | 17-43044 | PIN, Dowel | 2 | 17-20033 | |||||
| 8 | 31-42647A1 | 676-9-75121 | 700-21610 | BEARING ASSEMBLY, Roller | 1 | ||||
| 9 | 45-12618 | DRIVESHAFT | 1 | This Part is No Longer Available | |||||
| 10 | 15-8M0063267 | SHIM SET | AR | 15-42637A1 | |||||
| 11 | 31-36387A1 | 676-9-75107 | 700-21580 | BEARING, Roller | 1 | ||||
| 12 | 8245191 | 676-9-78126 | NUT | 1 | 11-42633 | ||||
| 13 | 8M0032834 | KEY | 1 | 28-56654 | |||||
| 14 | 12-29395 | 676-9-78137 | 700-21800 | WASHER, (.390 x 1.00 x .06) | 1 | ||||
| 15 | 12-31266 | 700-30010 | WASHER (Rubber) | 1 | 1 | ||||
| 16 | 23-30617A2 | 676-9-76133 | 700-21010 | BUSHING ASSEMBLY | 1 | 1 | |||
| 17 | 26-892361 | SEAL, Oil | 1 | 26-89236 | |||||
| 18 | 25-25439 | O-RING, (.862 x .103) | 1 | 1 | |||||
| 19 | 12-27880 | WASHER | 1 | ||||||
| 20 | 53-29641 | 700-21136 | CLIP, Cotter | 1 | 18-20233 | ||||
| 21 | 15099 | SHAFT, Shift | 1 | This Part is No Longer Available | |||||
| 22 | 22-8M0058389 | SCREW, (.735-16), Fill/Drain (Magnetic) | 1 | 10-14834 | |||||
| 23 | 12-191833 | WASHER, Fiber | 1 | 12-19183 | 1 | ||||
| 24 | 43-878087A4 | GEAR SET | 1 | 43-17064A3 | (INCLUDES PINION & FORWARD GEARS) | ||||
| 25 | 12-92721 | 676-9-78108 | 700-32800 | WASHER | 1 | ||||
| 26 | 11-35921 | 676-9-78103 | 700-11190 | NUT, (.625-18) | 1 | ||||
| 27 | 46-44292A3 | BASE ASSEMBLY, Water Pump | 1 | ||||||
| 28 | 27-426311 | GASKET | 1 | 1 | |||||
| 29 | 25-896523 | O-RING, (2.175 x .175) | AR | 25-90011 | 1 | ||||
| 29 | 25-38099 | O-RING (.139 x 2.109 ID) | AR | 1 | |||||
| 30 | 26-89238 | SEAL, Oil | 1 | 1 | |||||
| 31 | 26-16977 | SEAL, Oil | 1 | 1 | |||||
| 32 | 27-18051 | GASKET (Lower) | 1 | ||||||
| 33 | 27-858524 | GASKET (Upper) | 1 | 27-856091 | 1 | ||||
| 34 | 324351 | FACE PLATE | 1 | 32435 | |||||
| 35 | 46-96148T1 | BODY ASSEMBLY, Water Pump | 1 | 46-96148A1 | |||||
| 36 | 48752T | INSERT | 1 | 48752 | |||||
| 37 | 26-38970 | SEAL (Rubber) | 1 | ||||||
| 38 | 47-89984T4 | IMPELLER | 1 | 47-89984 | |||||
| 39 | 10-96411 | SCREW, (#14-8 x 2.25) | 1 | ||||||
| 40 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 41 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 2 | ||||||
| 42 | 11-13436 | NUT (.324-24) | 1 | ||||||
| 43 | 12-36001 | WASHER | 1 | ||||||
| 44 | 25-30271 | RING, Rubber (Rubber) | 1 | ||||||
| 45 | 25-30613 | O-RING | 1 | 1 | |||||
| 46 | 23-13235 | SLEEVE | 1 | ||||||
| - | 26-33144A2 | SEAL KIT | 1 |
