SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Driveshaft) (IIIa SSM)

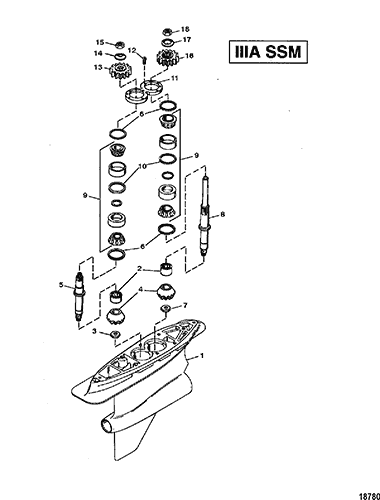

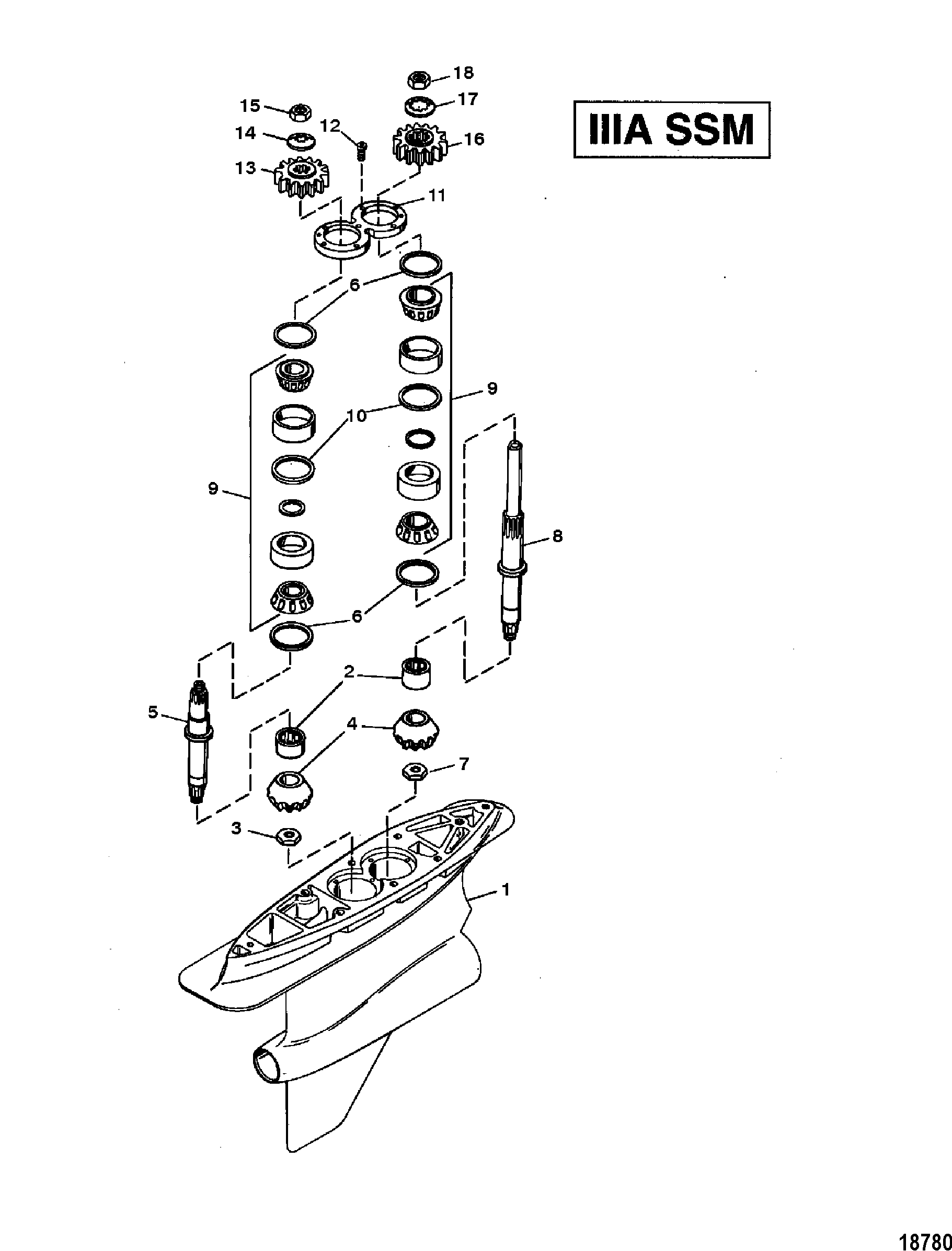

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1677-817090A13 | GEAR HOUSING ASSEMBLY | 1 | This Part is No Longer Available (BASIC) | |||||
| 2 | 31-19480T | BEARING, Roller | 2 | 31-19480 | 1 | ||||
| 3 | 11-19328 | NUT (Special) | 1 | 1 | |||||
| 4 | 43-19329A1 | GEAR SET (Pinion and Drive) | 2 | This Part is No Longer Available (RH - 1.00:1 RATIO) | |||||
| 4 | 43-19330A1 | GEAR SET (Pinion and Drive) | 2 | This Part is No Longer Available (LH - 1.00:1 RATIO) | |||||
| 4 | 43-816226A1 | GEAR SET (Pinion and Drive) | 2 | 43-19332A1 | This Part is No Longer Available (RH - 1.125:1 RATIO) | ||||
| 4 | 43-816227A1 | GEAR SET (Pinion and Drive) | 2 | 43-19333A1 | This Part is No Longer Available (LH - 1.125:1 RATIO) | ||||
| 5 | 45-816265T | DRIVESHAFT (Rear) | 1 | 45-816265 | This Part is No Longer Available | ||||
| 6 | 15-39808A1 | SHIM ASSEMBLY | AR | No longer made, limited availability | |||||
| 7 | 11-19327 | NUT (Special) | 1 | 1 | |||||
| 8 | 45-818552T | DRIVESHAFT (Front) | 1 | 45-818552 | This Part is No Longer Available | ||||
| 9 | 31-35990A2 | BEARING ASSEMBLY, Roller | 2 | 1 | |||||
| 10 | 23-39816 | SPACER | 2 | ||||||
| 11 | 19326T | RETAINER | 1 | 19326 | This Part is No Longer Available | ||||
| 12 | 10-39826 | SCREW, (.313-18 x 1.00) | 7 | 1 | |||||
| 13 | 43-18987 | GEAR, Spur (Rear) | 1 | ||||||
| 14 | 12-19479 | WASHER | 1 | 1 | |||||
| 15 | 11-61315 | NUT (Special) | 1 | 1 | |||||
| 16 | 43-18986 | GEAR, Spur (Front) | 1 | ||||||
| 17 | 12-817260 | WASHER | 1 | no longer made, limited availability | |||||
| 18 | 11-19475 | NUT (Special) | 1 | No longer made, limited availability 1 | |||||
| - | 1677-817090T10 | REBUILD KIT | 1 | 1677-817090A10 | This Part is No Longer Available |
