SSM II-III-IV-V 1982-1995 - All Serials - Hydraulic Pump Assembly (III-IV-V) (Oildyne)

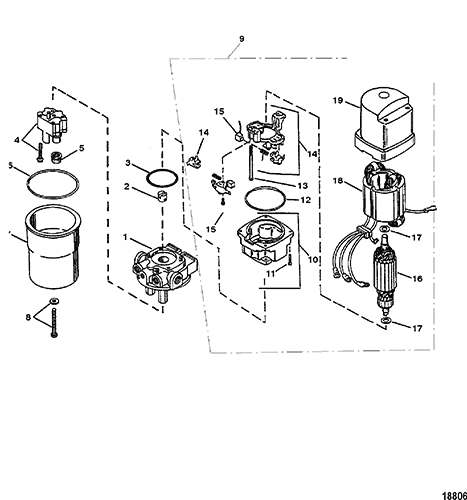

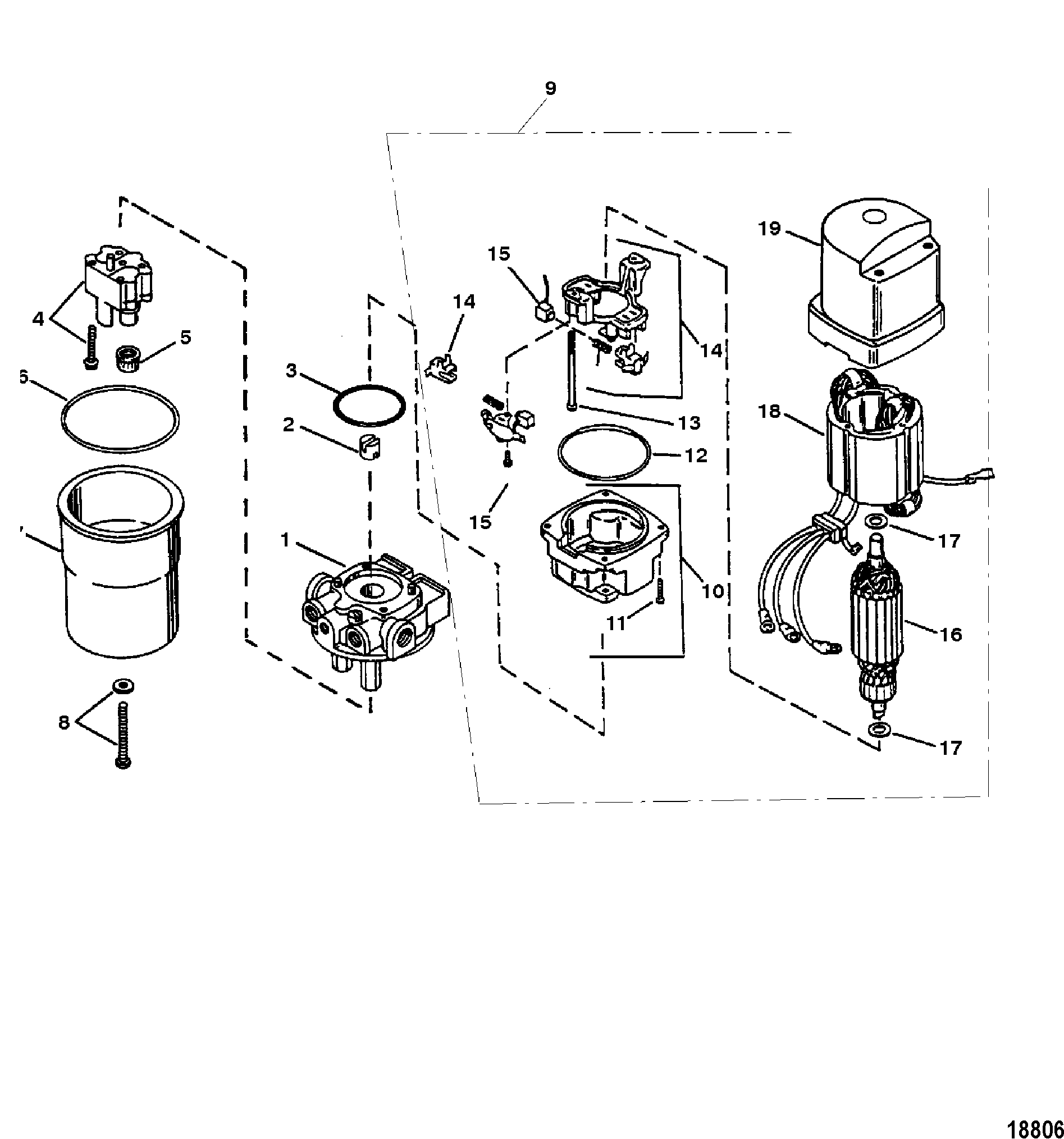

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0051203 | PUMP ASSEMBLY, Hydraulic | 1 | 818161A4 | (OILDYNE) | ||||
| 1 | 811491 | ADAPTOR | 1 | ||||||
| 2 | 803852 | COUPLING | 1 | 89493 | |||||
| 3 | 25-89498 | O-RING, Motor End | 1 | ||||||
| 4 | 811492T | PUMP (Includes Screws) | 1 | 811492 | |||||
| 5 | 35-89496 | FILTER | 2 | ||||||
| 6 | 25-89497 | O-RING, Reservoir End | 1 | ||||||
| 7 | 41219T | RESERVOIR | 1 | 41219 | |||||
| 8 | 10-811493 | SCREW KIT | 1 | ||||||
| 9 | 891736T | MOTOR | 1 | 17649 | |||||
| 10 | 891736T | END CAP ASSEMBLY (With Bearing) | 1 | 17632 | |||||
| 11 | 891736T | SCREW | 4 | 10-17626 | |||||
| 12 | 891736T | O-RING | 1 | 25-17625 | |||||
| 13 | 891736T | SCREW | 2 | 10-17621 | |||||
| 14 | 17633 | HOLDER KIT, Brush | 1 | No longer made, limited availability | |||||
| 15 | 891736T | BRUSH KIT | 1 | 17631A1 | |||||
| 16 | 17623 | ARMATURE | 1 | ||||||
| 17 | 891736T | WASHER, Thrust | 2 | 12-17653 | |||||
| 18 | 17624 | FIELD AND FRAME ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 19 | 891736T | COVER ASSEMBLY (With Bearing) | 1 | 17622 | |||||
| NS | 812498A1 | VALVE KIT, Relief, Pressure Relief | 1 |
