SSM II-III-IV-V 1982-1995 - All Serials - Driveshaft Housing Assembly (Alpha One-Ss)

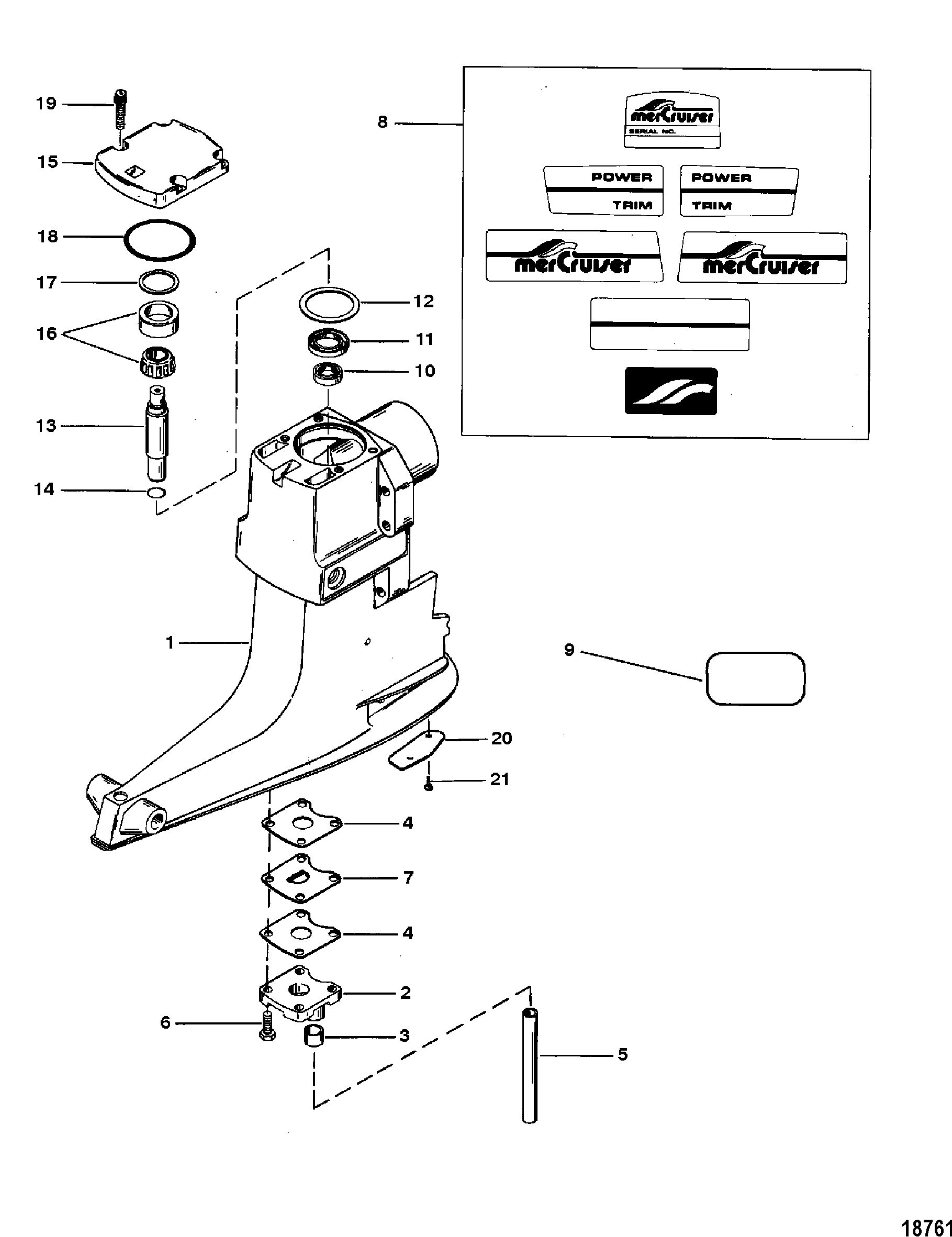

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 3500-9552A5 | HOUSING ASSEMBLY, Driveshaft | 1 | This Part is No Longer Available | ||||||
| 2 | 42724A4 | COVER ASSEMBLY | 1 | This Part is No Longer Available | ||||||
| 3 | 26-36557 | 700-85150 | SEAL, Water Inlet Tube | 1 | 1 | |||||
| 4 | 27-558101 | GASKET | 2 | 27-55810 | 1 | |||||
| 5 | 32-759146 | TUBE, Water | 1 | |||||||
| 6 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 4 | |||||
| 7 | 12774 | PLATE, Water Restrictor | 1 | |||||||
| 8 | 37-13682A90 | DECAL SET | 1 | |||||||
| 9 | 37-13722A10 | DECAL SET | 1 | This Part is No Longer Available (454 MAGNUM) (ALPHA ONE) | ||||||
| 9 | 37-16416A87 | DECAL | 1 | This Part is No Longer Available (320) (ALPHA ONE) | ||||||
| 10 | 26-965031 | SEAL, Oil | 1 | 26-96503 | 1 | |||||
| 11 | 26-32511 | SEAL, Oil | 1 | 1 | ||||||
| 12 | 15-36178A02 | SHIM SET | AR | 15-36178A1 | ||||||
| 13 | 45-55796 | 676-9-72462 or | 676-9-72461 | 700-11130 | DRIVESHAFT | 1 | ||||
| 14 | 25-55801 | 676-9-76568 | O-RING | 1 | ||||||
| 15 | 94998A4 | 676-9-78121 | 700-28400 | COVER ASSEMBLY, Top | 1 | 94998A2 | ||||
| 16 | 31-61100A1 | 700-21510 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 17 | 15-45691A1 | 700-23260 | SHIM | AR | ||||||
| 18 | 25-32546 | 676-9-76546 | 700-80420 | O-RING | 1 | 1 | ||||
| 19 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | ||||
| 20 | 14860 | WEAR PAD (PORT) | 1 | This Part is No Longer Available | ||||||
| 20 | 14861 | WEAR PAD (STARBOARD) | 1 | This Part is No Longer Available | ||||||
| 21 | 10-14862 | SCREW, (.250-20 x .625) | 4 | This Part is No Longer Available | ||||||
| - | 26-32511A1 | 676-9-74303 | 700-87500 | SEAL KIT | 1 |
