SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (V SSM)

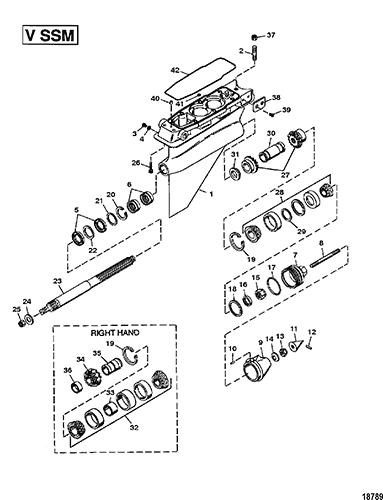

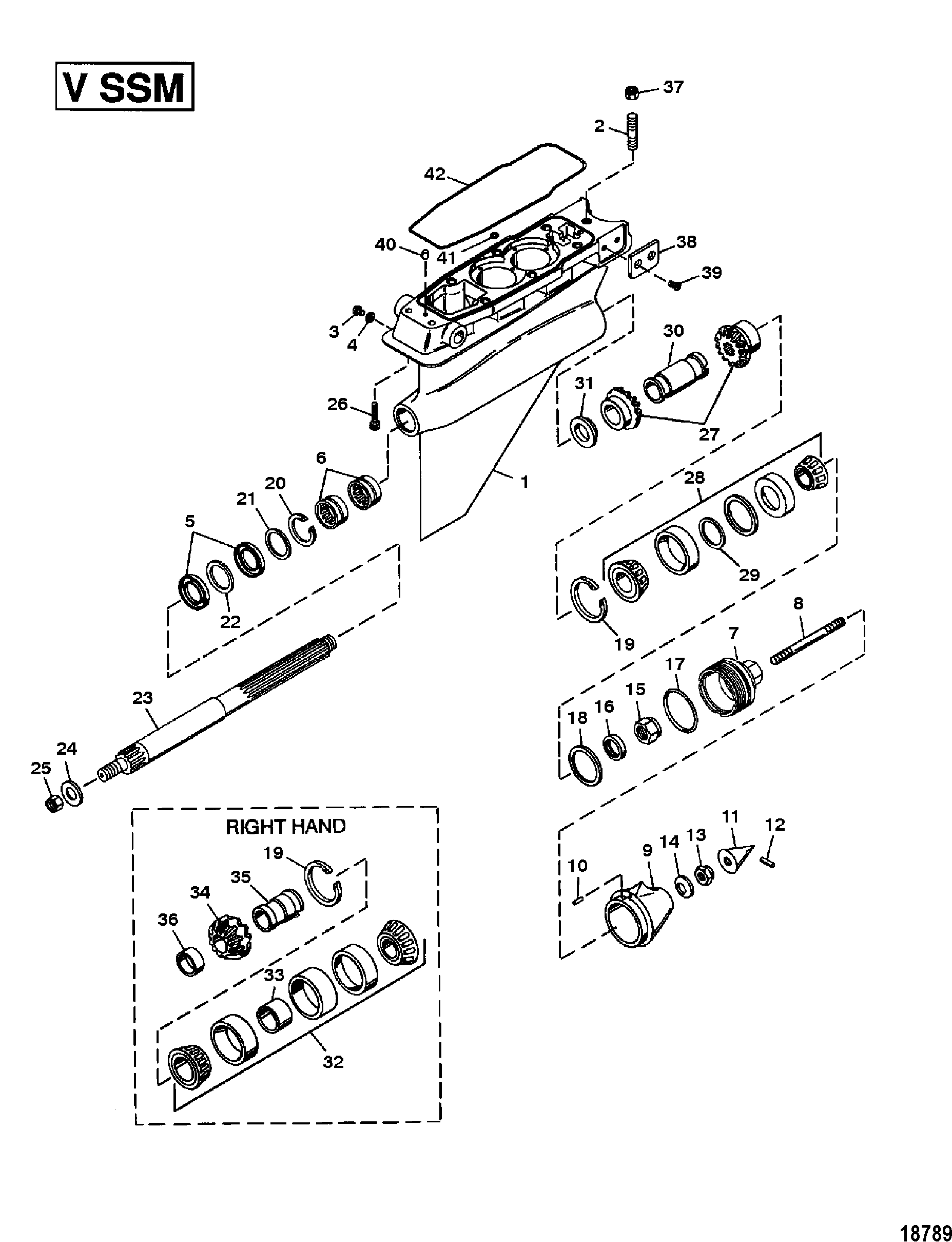

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1673-9849A9 | GEAR HOUSING ASSEMBLY | 1 | This Part is No Longer Available (BASIC) | |||||
| 2 | 16-57985 | STUD (2.810) | 1 | 16-579861 | |||||
| 3 | 22-8M0058389 | 700-21731 | 525-22-8M0058389 | SCREW, (.735-16), Vent (Magnetic) | 1 | 10-14834 | |||
| 4 | 12-191833 | 525-12-191833 | WASHER, Fiber | 1 | 12-19183 | ||||
| 5 | 26-19473 | SEAL, Oil | 3 | ||||||
| 6 | 31-39832T | BEARING, Roller | 2 | 31-39832 | |||||
| 7 | 18991 | ANCHOR, Stud | 1 | ||||||
| 8 | 16-530642 | STUD, Nose Cone | 1 | ||||||
| 9 | 11353 | NOSE CONE | 1 | ||||||
| 10 | 17-30282 | PIN | 1 | ||||||
| 11 | 98036 | CAP, Nose Cone | 1 | ||||||
| 12 | 65700 | PLUG | 1 | ||||||
| 13 | 11-47379 | NUT (.625-18) | 1 | 11-33002 | |||||
| 14 | 12-34961 | WASHER | 1 | ||||||
| 15 | 11-39825 | NUT (1.250-12) | 1 | ||||||
| 16 | 23-846409 | WASHER | 1 | 12-42262 | |||||
| 17 | 25-32507 | O-RING, (3.359 x .139) | 1 | ||||||
| 18 | 23-18995 | SPACER | 1 | ||||||
| 19 | 53-18994099 | RING, Snap (.099 Thick) | AR | ||||||
| 19 | 53-18994100 | RING, Snap (.100 Thick) | AR | This Part is No Longer Available | |||||
| 19 | 53-18994101 | RING, Snap (.101 Thick) | AR | ||||||
| 19 | 53-18994102 | RING, Snap (.102 Thick) | AR | This Part is No Longer Available | |||||
| 19 | 53-18994103 | RING, Snap (.103 Thick) | AR | ||||||
| 19 | 53-18994104 | RING, Snap (.104 Thick) | AR | This Part is No Longer Available | |||||
| 19 | 53-18994105 | RING, Snap (.105 Thick) | AR | ||||||
| 19 | 53-18994106 | RING, Snap (.106 Thick) | AR | This Part is No Longer Available | |||||
| 19 | 53-18994107 | RING, Snap (.107 Thick) | AR | ||||||
| 19 | 53-18994108 | RING, Snap (.108 Thick) | AR | This Part is No Longer Available | |||||
| 19 | 53-18994109 | RING, Snap (.109 Thick) | AR | ||||||
| 19 | 53-18994110 | RING, Snap (.110 Thick) | AR | This Part is No Longer Available | |||||
| 19 | 53-18994111 | RING, Snap (.111 Thick) | AR | ||||||
| 19 | 53-18994112 | RING, Snap (.112 Thick) | AR | This Part is No Longer Available | |||||
| 20 | 53-815353 | RING, Snap | 1 | ||||||
| 21 | 23-813637 | SPACER | 1 | No longer made, limited availability | |||||
| 22 | 23-813636 | SPACER | 1 | No longer made, limited availability | |||||
| 23 | 44-18989T | PROPELLER SHAFT (RH) | 1 | 44-18989 | This Part is No Longer Available | ||||
| 23 | 44-18988T | PROPELLER SHAFT (LH) | 1 | 44-18988 | This Part is No Longer Available | ||||
| 24 | 12-39817 | WASHER, Special - Stainless Steel | 1 | ||||||
| 25 | 11-82671127 | NUT (1.00-14) | 1 | 11-39907 | |||||
| 26 | 10-873702 | SCREW, (.500-13 x 3.00) | 2 | ||||||
| 27 | 43-19330A1 | GEAR SET (Pinion and Drive) | 2 | This Part is No Longer Available (LH - 1.00:1 RATIO) | |||||
| 27 | 43-816227A1 | GEAR SET (Pinion and Drive) | 2 | 43-19333A1 | This Part is No Longer Available (LH - 1.125:1 RATIO) | ||||
| 28 | 31-39772A2 | BEARING ASSEMBLY, Roller | 1 | This Part is No Longer Available (LH GEAR SET) | |||||
| 29 | 23-18993 | SPACER | 1 | (LH GEAR SET) | |||||
| 30 | 23-53070 | SPACER | 1 | (LH GEAR SET) | |||||
| 31 | 12-39818 | WASHER | 1 | This Part is No Longer Available (LH GEAR SET) | |||||
| 32 | 31-39772A3 | BEARING ASSEMBLY, Roller | 1 | (RH GEAR SET) no longer made, limited availability | |||||
| 33 | 23-19296 | SPACER | 1 | (RH GEAR SET) | |||||
| 34 | 43-19329A1 | GEAR SET (Pinion and Drive) | 1 | This Part is No Longer Available (RH - 1.00:1 RATIO) | |||||
| 34 | 43-816226A1 | GEAR SET (Pinion and Drive) | 1 | 43-19332A1 | This Part is No Longer Available (RH - 1.125:1 RATIO) | ||||
| 35 | 23-8M0050942 | SPACER | 1 | 23-18990 | (RH GEAR SET) | ||||
| 36 | 12-19180 | WASHER | 1 | (RH GEAR SET) | |||||
| 37 | 11-47302 | NUT, (.562-18) Stainless Steel | 1 | ||||||
| 38 | 113931 | WEAR PAD | 2 | This Part is No Longer Available | |||||
| 39 | 10-11601 | SCREW, (.312-18 x .750) Stainless Steel | 4 | ||||||
| 40 | 17-43044 | PIN, Dowel, Locating | 2 | 17-20033 | |||||
| 41 | 25-36390 | O-RING | 6 | ||||||
| 42 | 25-120001 | O-RING | 1 |
