SSM II-III-IV-V 1982-1995 - All Serials - Transom Plate (III-IIIa-IV-V)

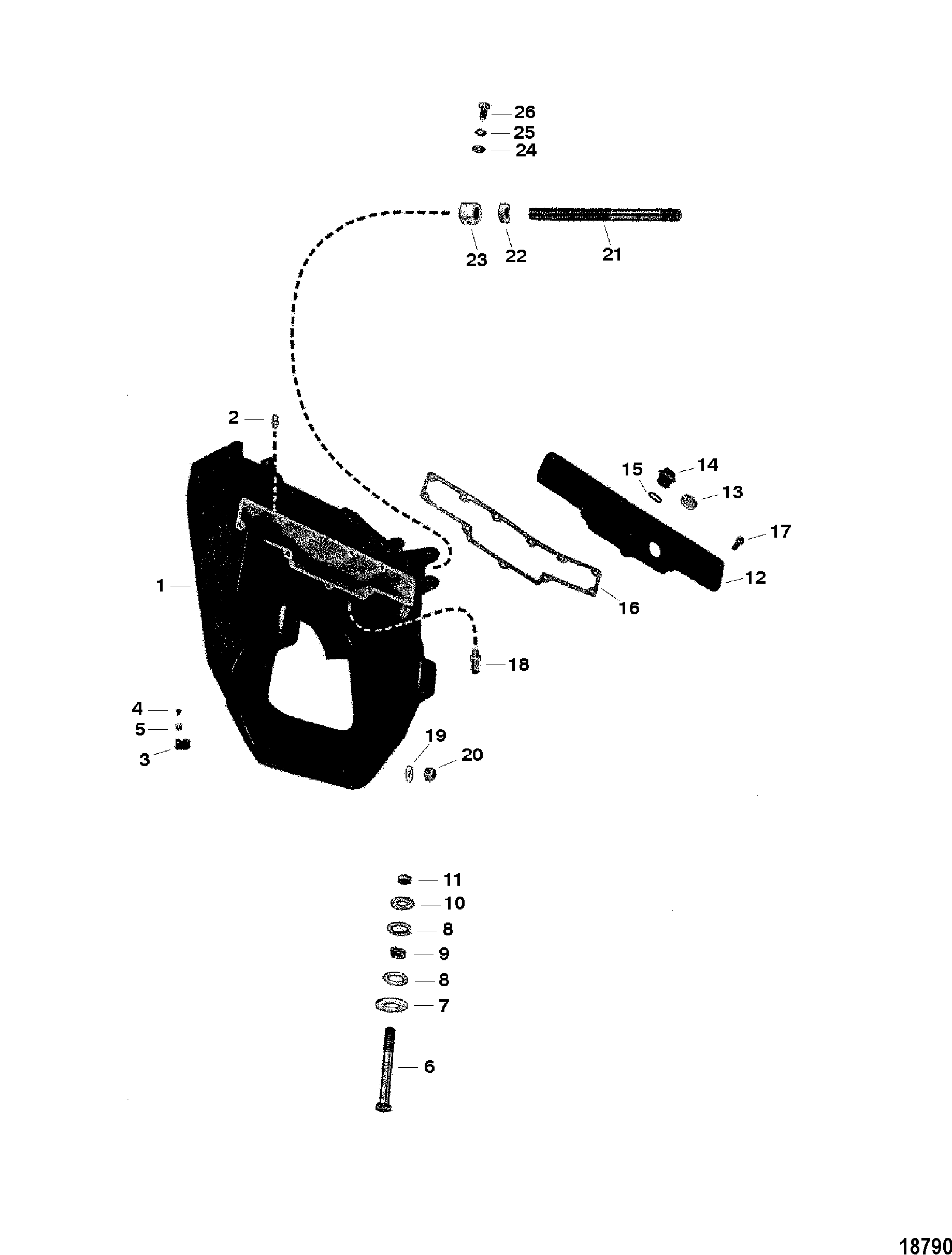

Section Drawing: (Hover or click to view larger)
