800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Audio Warning System

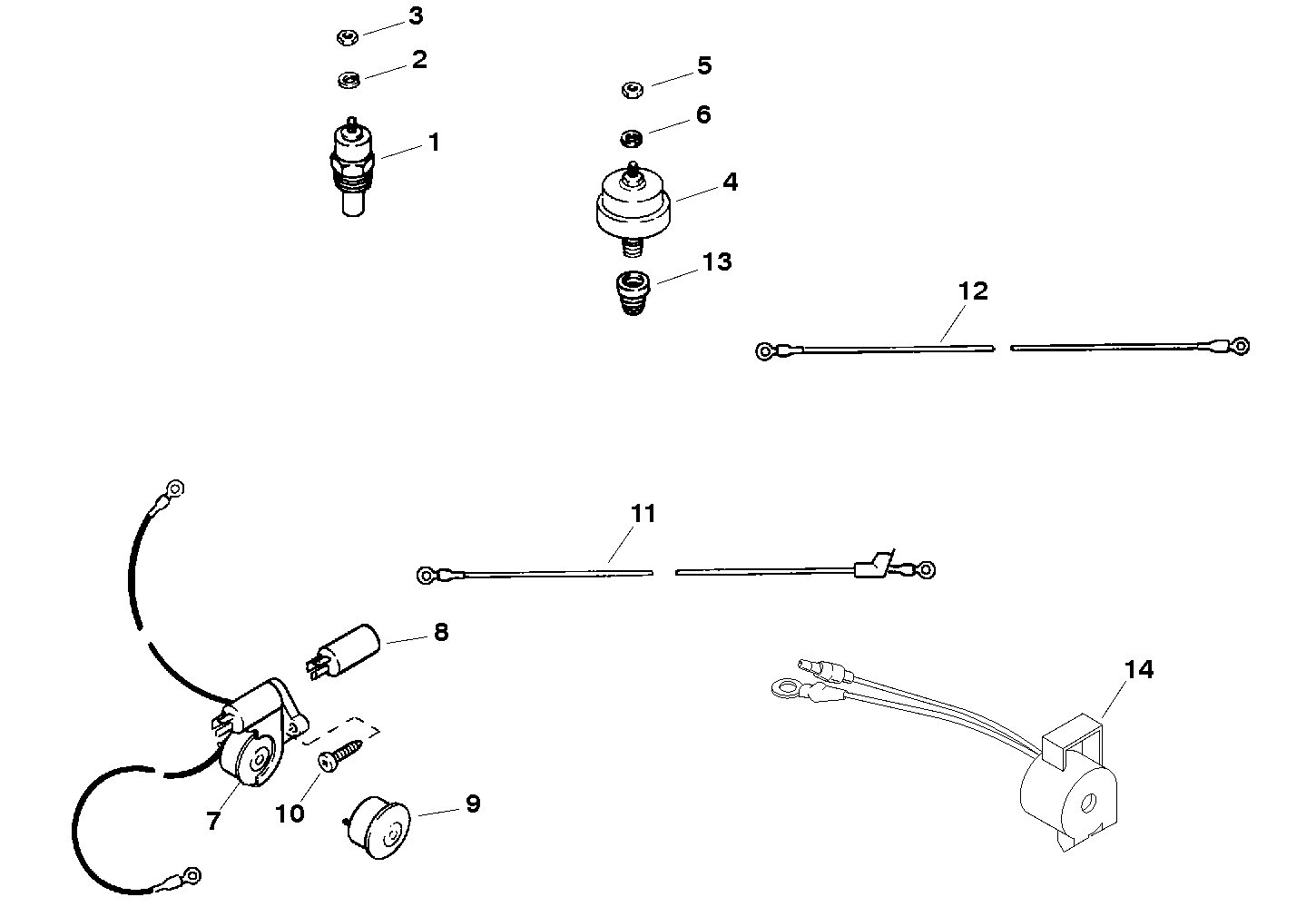

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SENDER ASSEMBLY-Water Temperature | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER (#10)-Temperature Switch | 1 | ||||||
| 3 | 11-68219 | NUT (#10-32)-Temperature Switch | 1 | ||||||
| 4 | 87-805605A1 | SWITCH ASSEMBLY-Pressure | 1 | ||||||
| 5 | 11-68219 | NUT (#10-32)-Pressure Switch Terminal | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 7 | 816492A14 | HOUSING KIT-Buzzer | 1 | 86047A11 | (WITH TWO RING CONNECTORS) Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER-Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY | 1 | No longer made, limited availability | |||||
| 10 | 10-69013 | SCREW (#10-16 x .875) | 2 | ||||||
| 11 | 84-86044A6 | CABLE ASSEMBLY (20.00 Ft.) (Tan/Blue) | 1 | This Part is No Longer Available (2 RINGS) | |||||
| 7 | 816492A14 | HOUSING KIT-Buzzer | 1 | 86047A16 | (WITH 1 RING - 1 SPADE CONNECTOR) Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER-Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY | 1 | No longer made, limited availability | |||||
| 11 | 84-86044A11 | CABLE ASSY (20.00 Ft.) (Tan/Blue) | 1 | This Part is No Longer Available (1 RING - 1 SPADE) | |||||
| 12 | 84-88032A6 | CABLE ASSEMBLY (30.00 In.) (Tan/Blue) | 1 | This Part is No Longer Available | |||||
| 12 | 84-86044A4 | CABLE ASSEMBLY (36.00 In.) (Tan/Blue) | 1 | This Part is No Longer Available | |||||
| 13 | 22-48556 | BUSHING-Reducer | 1 | ||||||
| 14 | 816492A6 | ALARM KIT-Audio Warning | 1 |
