800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Power Steering Components

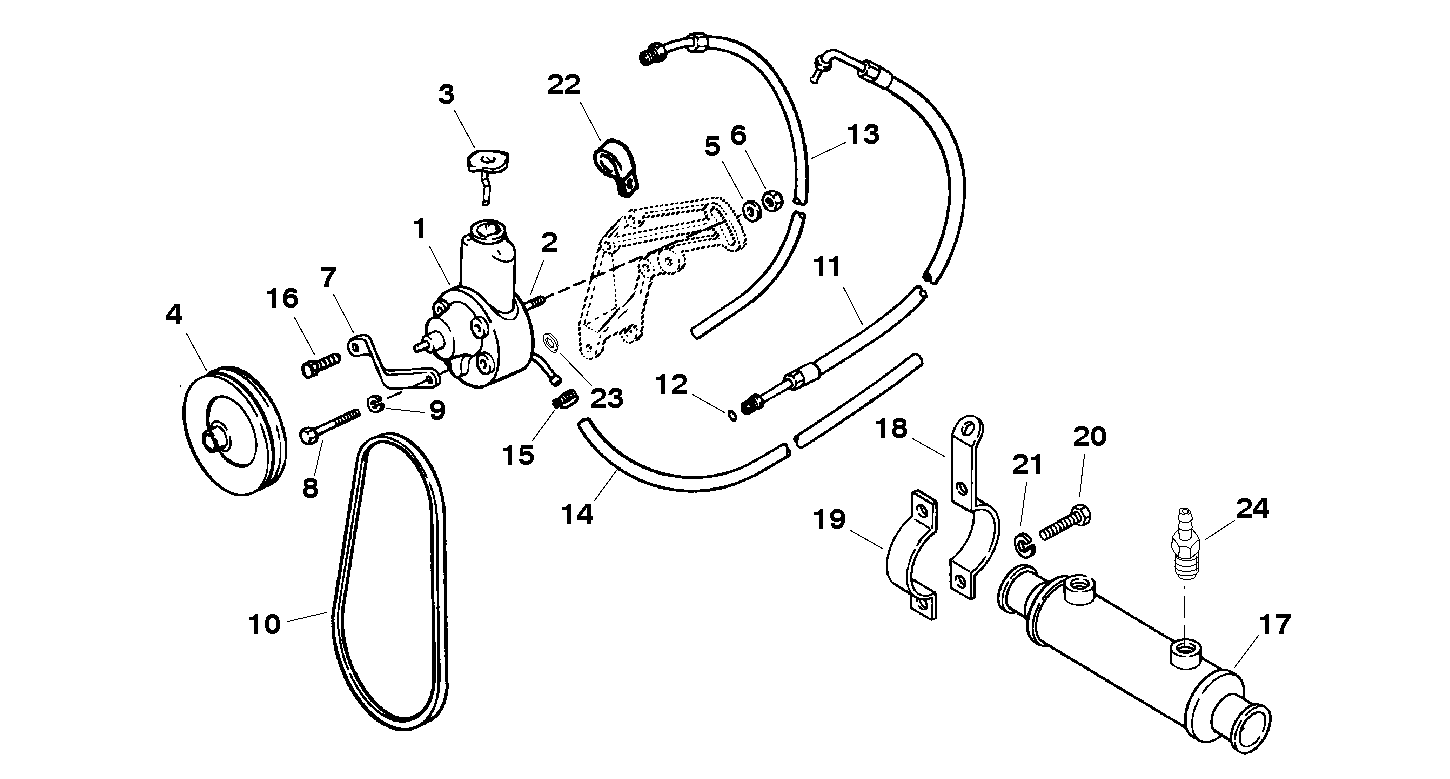

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16792A25         PUMP ASSEMBLY-Power Steering (BLUE) 1
2 16-41877         STUD 1
3 36-95805         CAP 1
4 738733         PULLEY (BLUE) 1   This Part is No Longer Available
5 12-34567         WASHER (BRACE SLOT) 3
6 11-90517         NUT 2
7 847765         BRACE 1
8 10-40001188         SCREW (M10 x 20) 1
9 13-400248         LOCKWASHER 1
10 57-821023Q         V BELT 1 57-821023
11 32-98494         HOSE (FITTINGS ON BOTH ENDS) 1
12 25-89879         O RING 1
13 32-9884339         HOSE (72.00 In. Bulk) (FITTINGS ON ONE END) 1   (CUT 48.00 IN.)
14 32-8M0062341         HOSE (53.00 In. Bulk) 1 32-5251914 (CUT 19.500 IN.)
15 54-180761         CLAMP 3
16 10-35047         SCREW (.375-16 x 1.250) 1
16 10-825427         SCREW (.437-14 x 1.250) 1 10-15942 3
17 99356A2         COOLER-Oil 1   (SERIAL # 0K000911 AND BELOW)
17 849291         COOLER-Oil 1   (SERIAL # 0L000186 & UP)
18 63820F3         BRACKET (LONG) 1 638203
19 563281         BRACKET (SHORT) 1
20 10-49668         SCREW (.250-20 x .750) 2
21 13-26992         LOCKWASHER (.250) 2
22 54-848183         J CLIP-Power Steering Hose 1
22 54-42553         J CLIP-Power Steering Hose to Valve Cover 2
23 12-20553         WASHER (Lower Pivot Stud-Pump To Bracket) 1
24 22-70834         CONNECTOR 1   (SERIAL # 0L000186 & UP)
- 844718A10         COMPONENT OF PARTIAL ENGINE -
