800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Starter And Alternator

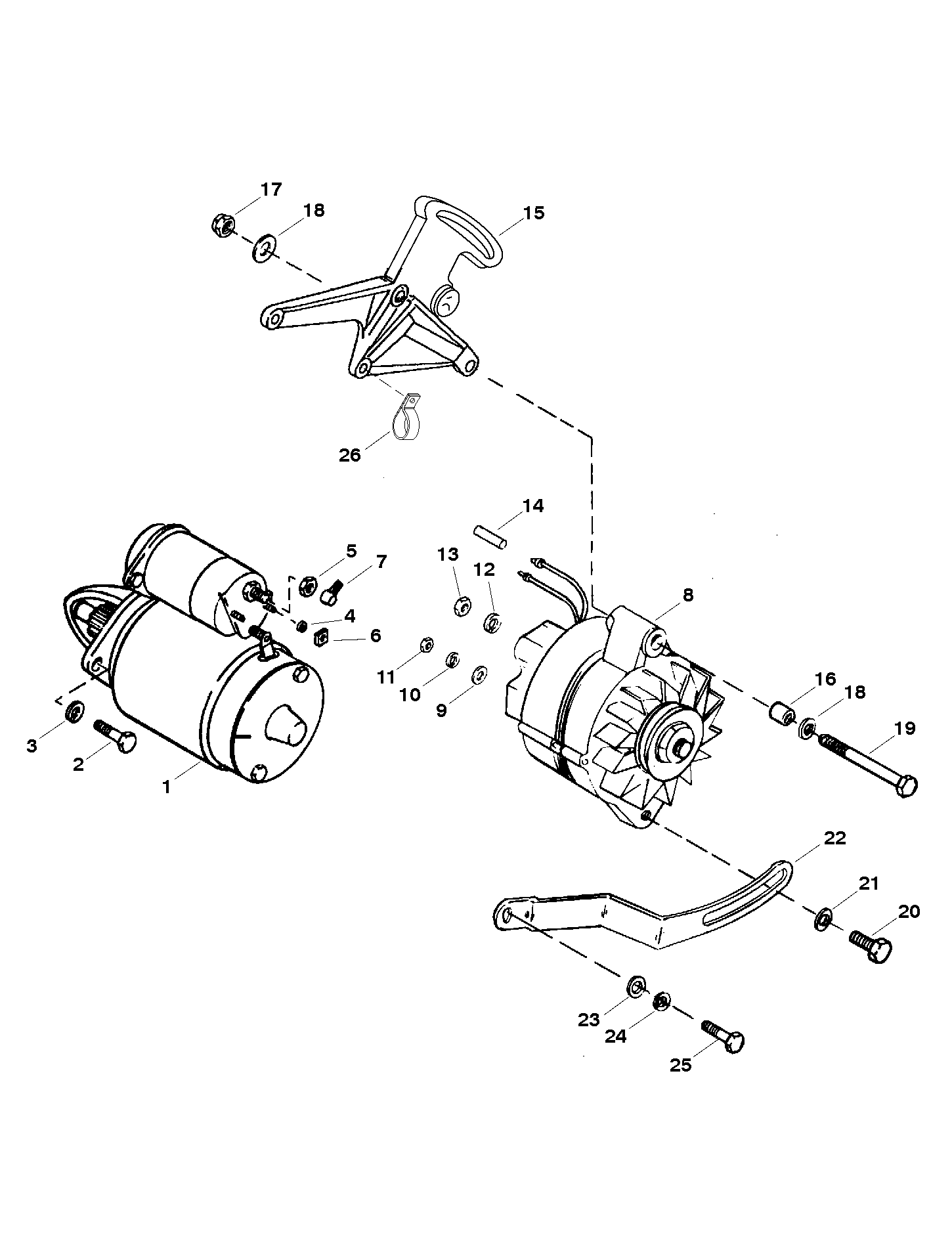

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-17251A3 | (DRIVELINE MODELS) (SEE PARTS BREAKDOWN) NOT SHOWN 3 | ||||
| 1 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-808011A1 | (DRIVELINE MODELS) (SEE PARTS BREAKDOWN) COMPONENT OF PARTIAL ENGINE [847718A10] | ||||
| 2 | 10-47461 | SCREW (.437-14 x 1.00) | 2 | SUPERSEDES TO ANOTHER PART NUMBER | |||||
| 3 | 13-32993 | LOCKWASHER (.437) | 2 | AS REQUIRED | |||||
| 4 | 13-26996 | LOCKWASHER (#10) | 1 | COMPONENT OF ENGINE OVERHAUL GASKET SET [27-822740A3] | |||||
| 5 | 11-15874 | NUT (10M) | 1 | OPTIONAL | |||||
| 6 | 11-400211 | NUT (5M) | 1 | NOTE SOLD SEPARATE; SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING DELCO REMY MANUFACTURER'S PART # | |||||
| 7 | 85-79695T | BOOT-Insulator-Starter Terminal | 1 | 85-79695 | |||||
| 8 | 8171191 | ALTERNATOR ASSEMBLY (BLUE) | 1 | (SEE PARTS BREAKDOWN) | |||||
| 9 | 12-96457 | WASHER | 1 | ||||||
| 10 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 11 | 11-79989 | NUT (#10-24) | 1 | ||||||
| 12 | 13-26992 | LOCKWASHER (.250) | 1 | ||||||
| 13 | 11-8267098 | NUT (.250-20) | 1 | 11-56374 | |||||
| 14 | 5790811 | SLEEVE (10.00 In. Bulk) | 1 | (CUT AS REQ'D) | |||||
| 15 | 815251T1 | BRACKET KIT-Alternator Mount (.375 Holes) | 1 | 815251A1 | This Part is No Longer Available | ||||
| 16 | 23-33186 | BUSHING | 1 | ||||||
| 17 | 11-23161 | NUT (.375-24) | 1 | ||||||
| 18 | 12-20553 | WASHER | 3 | ||||||
| 19 | 10-48308 | SCREW (.375-24 x 3.750) | 1 | ||||||
| 20 | 10-29198 | SCREW & LOCKWASHER (.312-18 x .875) | 1 | ||||||
| 21 | 12-26168 | WASHER | 1 | ||||||
| 22 | 85013T | BRACE | 1 | ||||||
| 23 | 12-27025 | WASHER | 1 | ||||||
| 24 | 13-32993 | LOCKWASHER (.437) | 1 | ||||||
| 25 | 10-47461 | SCREW (.437-14 x 1.00) | 1 | ||||||
| 26 | 54-62494 | CLIP | 1 |
