800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Cylinder Block And Camshaft

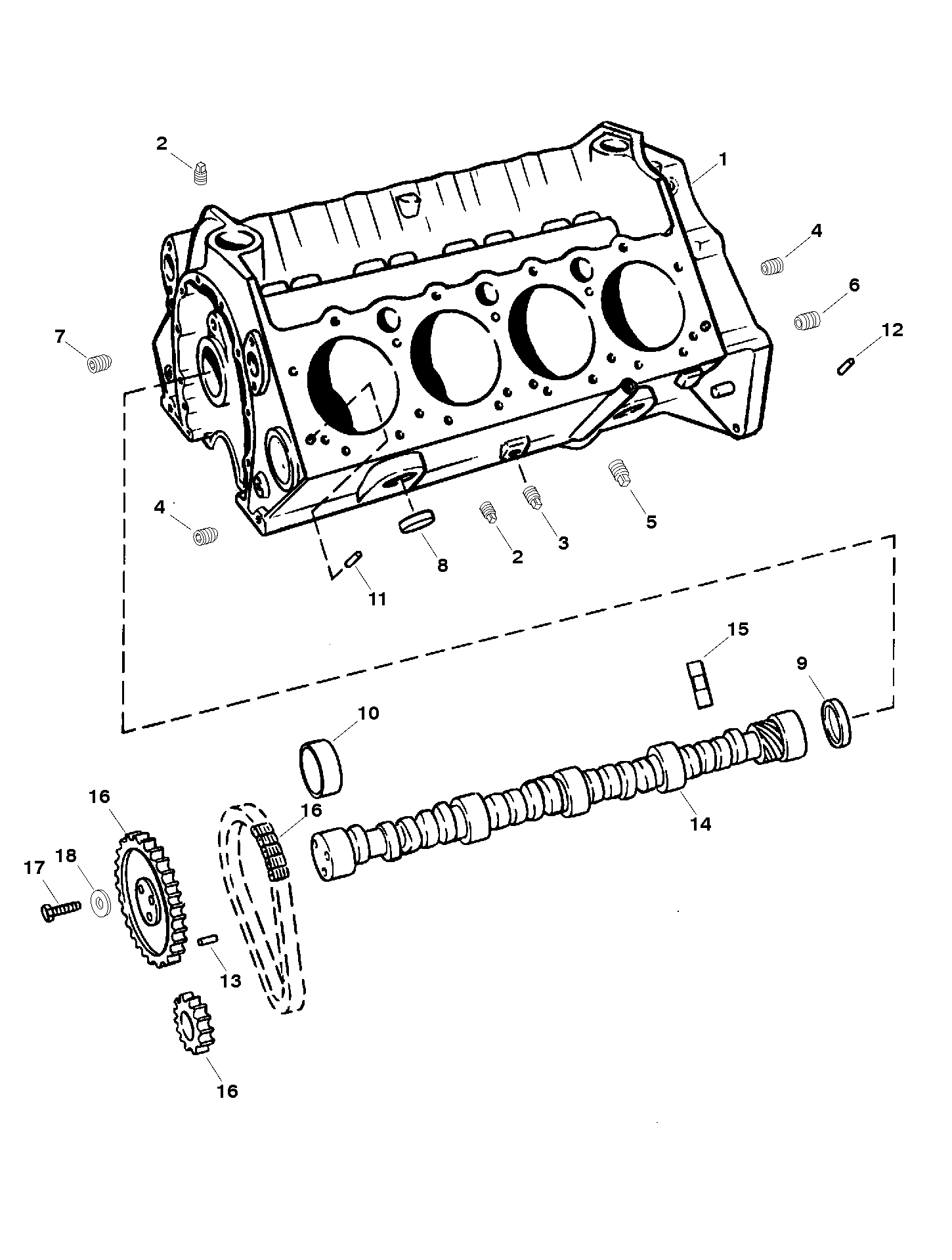

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 847718A10 | PARTIAL ENGINE ASSEMBLY | 1 | This Part is No Longer Available (INCLUDES INTERNAL PARTS AND CYLINDER HEADS) | |||||
| 1 | 42112A24 | BLOCK ASSEMBLY-Cylinder | 1 | This Part is No Longer Available 2 | |||||
| 2 | 22-328022 | PLUG (.125-27)-Hex Head-Brass | 4 | 22-32802 | 3 | ||||
| 3 | 22-36382 | 700-21887 | PLUG (.250-18)-Hex Head-Brass | 3 | |||||
| 4 | 22-32561 | PLUG (.250-18)-Socket Head-Steel | 3 | ||||||
| 5 | 22-32803 | PLUG (.375-18)-Hex Head-Brass | 1 | ||||||
| 6 | 22-36373 | PLUG (.375-18)-Socket Head-Steel | 2 | ||||||
| 7 | 845606 | PLUG-Special-Oil Galley | 2 | 42534 | |||||
| 8 | 22-69300 | PLUG (1.750)-Expansion | 8 | ||||||
| 9 | 19-94140 | PLUG-Expansion | 1 | ||||||
| 10 | 23-85684 | BEARING UNIT (SET) | 1 | ||||||
| 11 | 17-52190 | PIN-Dowel | 4 | ||||||
| 12 | 17-843379 | PIN-Dowel-Bell Housing | 2 | 17-72382 | |||||
| 13 | 17-843378 | PIN-Dowel-Timing Cover | 2 | 17-35312 | |||||
| 14 | 491-818870 | CAMSHAFT | 1 | This Part is No Longer Available 2 | |||||
| 15 | 93722T | LIFTER | 16 | 93722 | 2 | ||||
| 16 | 77531 | GEAR & CHAIN KIT-Timing | 1 | 2 | |||||
| 17 | 10-34505 | SCREW | 3 | 2 | |||||
| 18 | 12-848136 | WASHER | 3 | 2 | |||||
| 19 | 847718A10 | COMPONENT OF PARTIAL ENGINE | This Part is No Longer Available |
