800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Cylinder Head And Rocker Cover (0F615830 And Up)

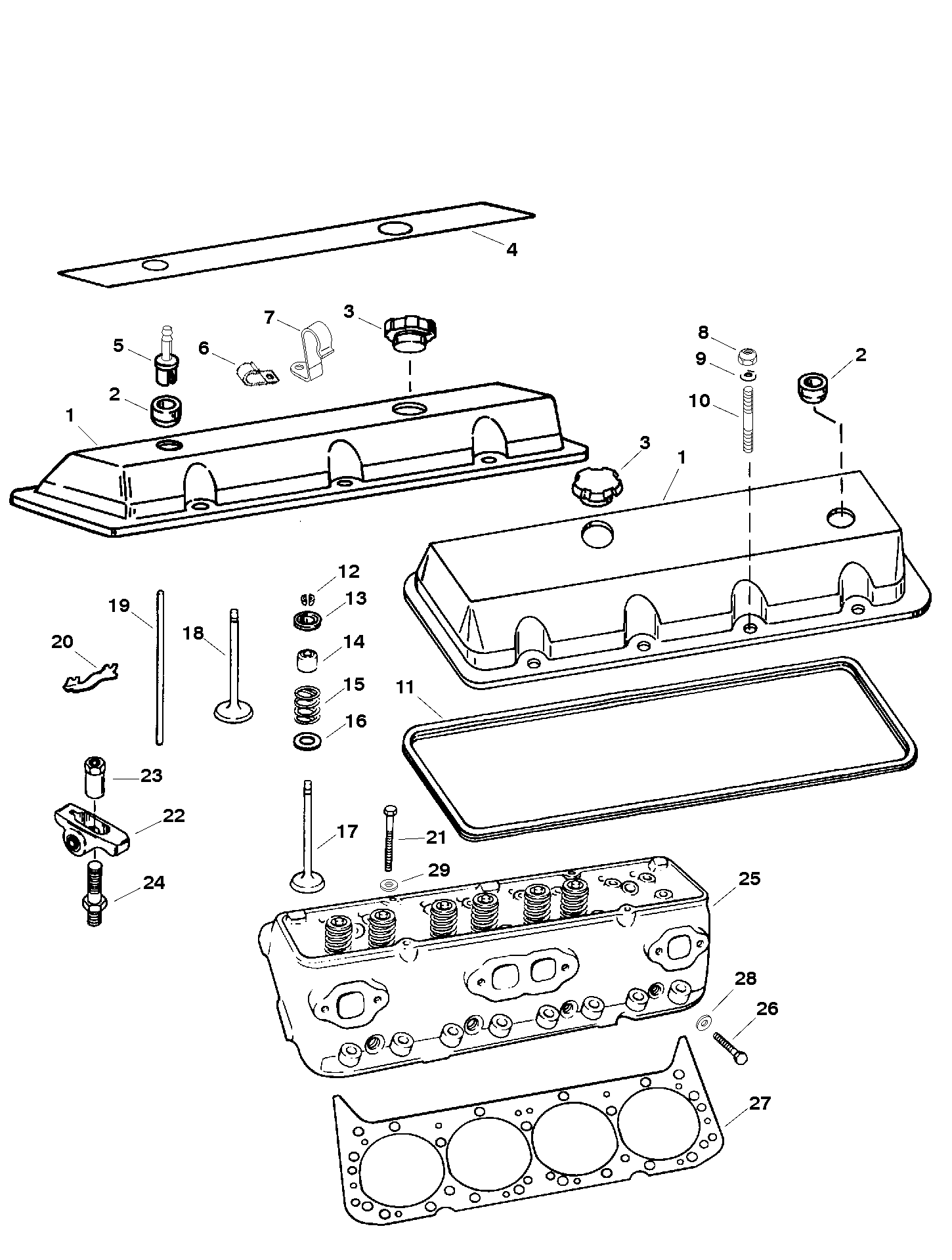

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 811587A4 | COVER ASSEMBLY-Rocker Valve (BLUE) | 2 | This Part is No Longer Available 2 | |||||
| 2 | 25-811553 | GROMMET-Rocker Cover | 2 | 5 | |||||
| 3 | 36-811569 | CAP-Oil Filler | 2 | ||||||
| 4 | 37-848590 | DECAL | 2 | This Part is No Longer Available | |||||
| 5 | 22-8485571 | FITTING | 2 | 22-848557 | 2 | ||||
| 6 | 54-642352 | J CLIP | 1 | 2 | |||||
| 7 | 54-42553 | J CLIP | 2 | (POWER STEERING MODELS) 2 | |||||
| 8 | 11-35888 | 676-9-72001 | 700-21180 | NUT (.250-28)-Rocker Cover Stud | 14 | 2 | |||
| 9 | 12-35462 | WASHER-Rocker Cover Stud | 14 | 2 | |||||
| 10 | 16-56766 | STUD-Rocker Cover | 14 | 2 | |||||
| 11 | 27-14765 | 676-9-61311 | GASKET-Rocker Cover | 2 | 2,5 | ||||
| 12 | 96028 | LOCK-Valve | 32 | 2 | |||||
| 13 | 843376 | RETAINER | 16 | 98598 | 2 | ||||
| 14 | 26-827645 | SEAL-Valve | 16 | 15832 | 2,5 | ||||
| 15 | 24-13455T | SPRING | 16 | 24-13455 | 2 | ||||
| 16 | 15-845669 | SHIM (.015)-Valve Spring | AR | 15-54531 | 2,4 | ||||
| 16 | 15-77624 | SHIM (.030)-Valve Spring | AR | 2,4 | |||||
| 17 | 843080 | VALVE-Exhaust | 8 | 13024 | 2 | ||||
| 18 | 986781 | VALVE-Inlet (2.190 Dia.) (Standard) | 8 | 2 | |||||
| 19 | 848509 | PUSHROD-Valve (8.650) | 8 | (INLET) 2 | |||||
| 19 | 848508 | PUSHROD-Valve (9.600) | 8 | (EXHAUST) 2 | |||||
| 20 | 49132 | GUIDE-Push Rod | 8 | 2 | |||||
| 21 | 10-847875 | SCREW (.437-14 x 3.960)-Cylinder Head | 4 | 2 | |||||
| 21 | 10-847876 | SCREW (.437-14 x 4.180)-Cylinder Head | 20 | 2 | |||||
| 22 | 14729T1 | ARM-Valve Rocker | 16 | 147291 | 2 | ||||
| 23 | 11-848610 | NUT-Valve Rocker Arm | 16 | 2 | |||||
| 24 | 95820 | STUD-Valve Rocker Arm | 16 | 2 | |||||
| 25 | 938-817129T | HEAD ASSEMBLY-Cylinder | 2 | 938-817129 | This Part is No Longer Available 2 | ||||
| NS | 22-845174 | PLUG (.500-14) | 1 | 22-61162 | |||||
| 26 | 10-848495 | SCREW (.437-14 x 2.110)-Cylinder Head | 8 | This Part is No Longer Available 2 | |||||
| 27 | 27-8M0051520 | GASKET-Cylinder Head | 2 | 27-8227401 | 2,5 | ||||
| 28 | 12-848542 | WASHER-Cylinder Head Screw (.437 x .750) | 8 | This Part is No Longer Available 2 | |||||
| 29 | 12-847877 | WASHER-Cylinder Head Screw (.437 x .812) | 24 | This Part is No Longer Available 2 | |||||
| NS | 92-809826 | SEALER-Red RTV | AR | 92-916011 | (REQUIRED FOR COMPLETE OVERHAUL) 1,3,4 | ||||
| NS | 34227Q02 | PERFECT SEAL | AR | 92-342271 | (REQUIRED FOR COMPLETE OVERHAUL) 1,2 | ||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available | |||||
| - | 847718A10 | COMPONENT OF PARTIAL ENGINE | This Part is No Longer Available |
