800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Transmission Components (Plug In) (Page 1 0F 2)

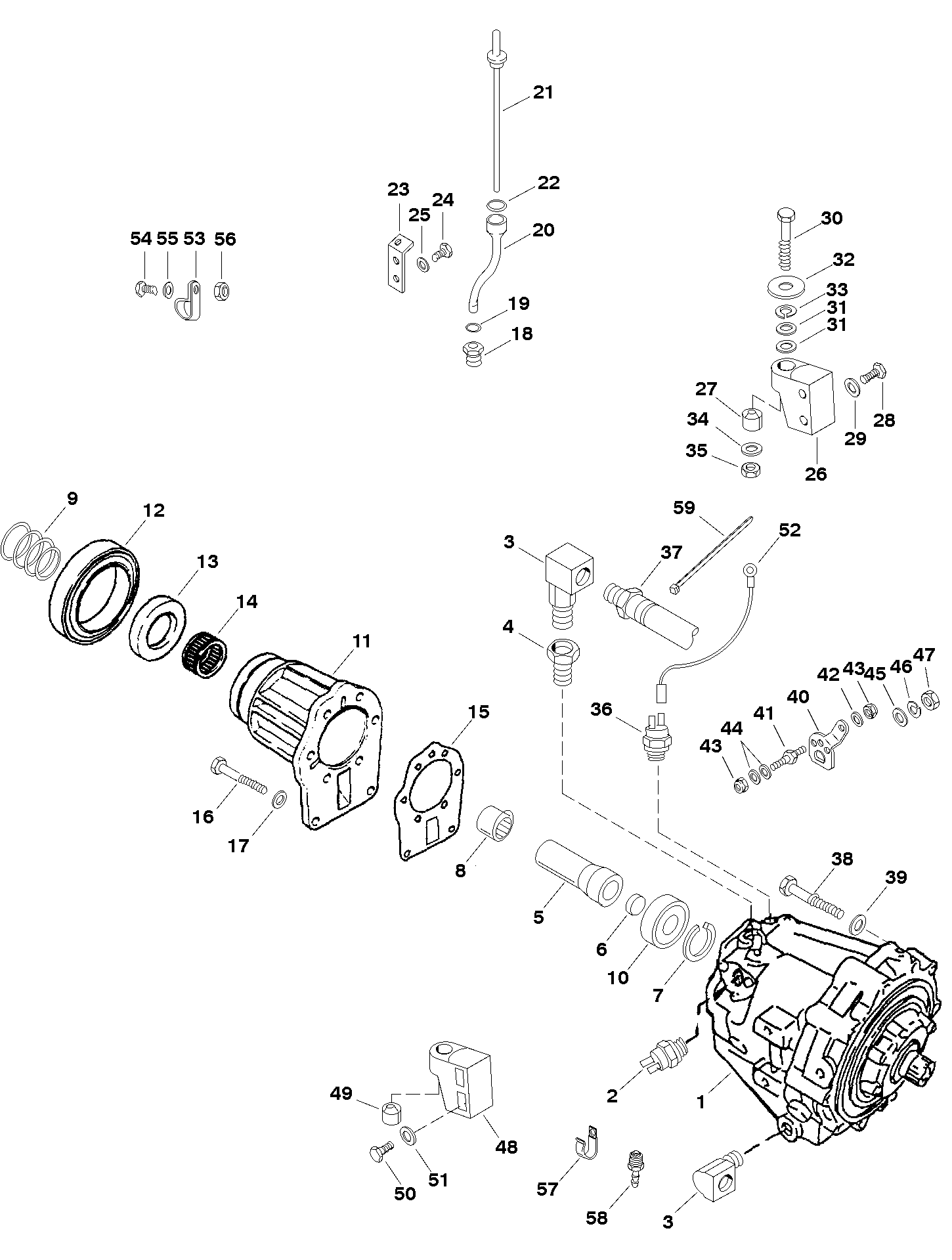

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 821847A6 | TRANSMISSION ASSEMBLY (COMPLETE) | 1 | This Part is No Longer Available | |||||
| 1 | 821847A5 | TRANSMISSION | 1 | ||||||
| 2 | 47613 | SWITCH-Neutral | 1 | ||||||
| 3 | 22-47629 | ELBOW-Transmission To Oil Hose | 2 | ||||||
| 4 | 22-88517 | FITTING-Reducing-Transmission Elbow | 1 | ||||||
| 5 | 47339A4 | COUPLING ASSY-Engine To Transmission | 1 | No longer made, limited availability | |||||
| 6 | 19-47463 | PLUG-Expansion-Engine Coupling | 1 | ||||||
| 7 | 53-47469 | RING-Snap-Bearing To Eng Coupling | 1 | ||||||
| 8 | 23-47471T | BEARING-Engine Coupling | 1 | 23-47471 | |||||
| 9 | 24-47755 | SPRING-Guide-Engine Coupling | 1 | ||||||
| 10 | 30-47470 | BEARING-Ball | 1 | ||||||
| 11 | 47333A1 | HOUSING ASSEMBLY-Bearing Support | 1 | This Part is No Longer Available | |||||
| 12 | 25-47756 | O RING-Bearing Support Housing | 1 | 2 | |||||
| 13 | 26-47465 | SEAL-Oil-Bearing Support Housing | 1 | ||||||
| 14 | 31-47468T | BEARING-Needle-Support Housing | 1 | 31-47468 | This Part is No Longer Available | ||||
| 15 | 27-47903 | GASKET-Bearing Support Housing | 1 | ||||||
| 16 | 10-47462 | SCREW (.437-14 x 1.250) | 8 | ||||||
| 17 | 13-32993 | LOCKWASHER (.437) | 8 | ||||||
| 18 | 48461 | ADAPTOR-Oil Level Gauge Tube To Trans | 1 | This Part is No Longer Available | |||||
| 19 | 25-48462 | O RING-Oil Level Tube Adaptor | 1 | ||||||
| 20 | 48463 | TUBE-Oil Level Gauge | 1 | This Part is No Longer Available | |||||
| 21 | 48464 | GAUGE-Oil Level | 1 | This Part is No Longer Available | |||||
| 22 | 25-35276 | O RING-Oil Level Gauge | 1 | ||||||
| 23 | 48466 | BRACKET-Mount-Oil Level Gauge Tube | 1 | This Part is No Longer Available | |||||
| 24 | 10-34290 | SCREW (.250-20 x .625) | 2 | ||||||
| 25 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 26 | 47340A1 | BRACKET ASSY-Trans Mount (PORT) | 1 | ||||||
| 27 | 35852 | MOUNT-Transmission Mount Bracket | 1 | ||||||
| 28 | 10-47462 | SCREW (.437-14 x 1.250) | 2 | ||||||
| 29 | 13-32993 | LOCKWASHER (.437) | 2 | ||||||
| 30 | 10-47467 | SCREW (.625-18 x 5.500) | 2 | ||||||
| 31 | 12-47466 | WASHER (NEOPRENE)-Tailstock Screws | 4 | ||||||
| 32 | 12-47475 | WASHER-Tailstock Screws | 2 | ||||||
| 33 | 13-34846 | LOCKWASHER-Tailstock Screws | 2 | ||||||
| 34 | 12-33171 | WASHER-Tailstock Screws | 2 | ||||||
| 35 | 11-22339 | NUT (.625-18) | 2 | ||||||
| 36 | 87-88031 | SWITCH-Temperature | 1 | ||||||
| 37 | 32-475166 | HOSE (30.00 In.)-Trans To Oil Cooler | 2 | ||||||
| 38 | 10-60179 | SCREW (.437-14 x 3.500) | 6 | ||||||
| 39 | 13-32993 | LOCKWASHER (.437) | 6 |
