800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Supercharger

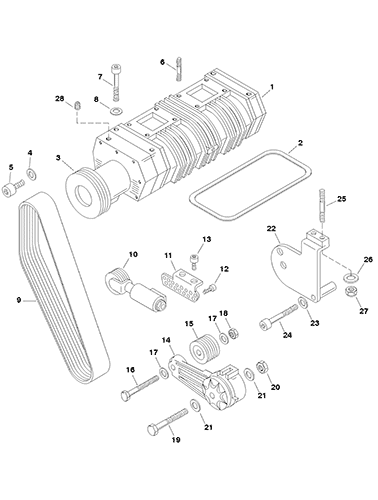

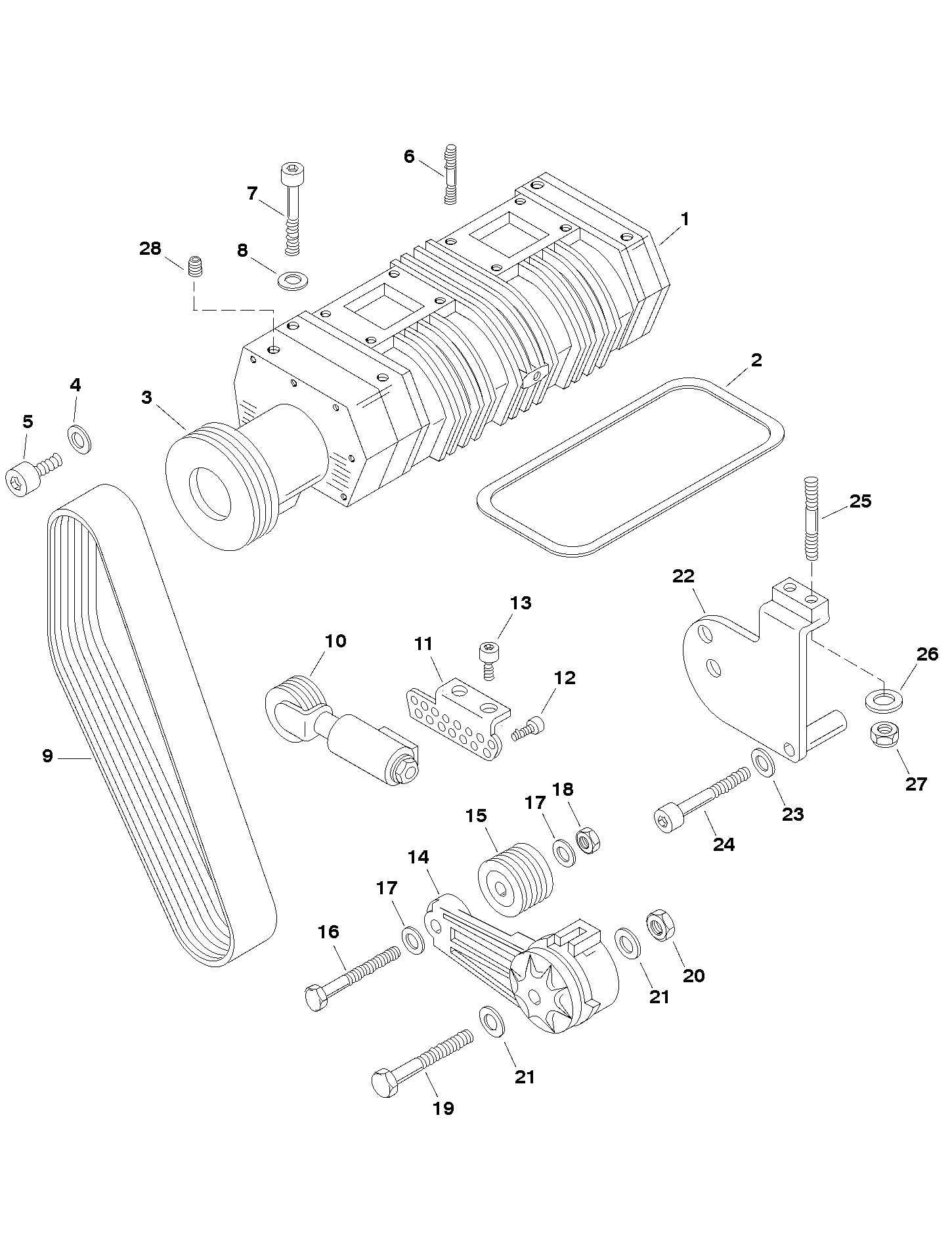

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 818950A1 | SUPERCHARGER ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 25-818972 | O RING | 1 | 5 | |||||
| 3 | 847681 | PULLEY | 1 | ||||||
| 4 | 12-37828 | WASHER | 6 | ||||||
| 5 | 10-30206 | 700-22430 | SCREW (.375-16 x 1.00) | 6 | |||||
| 6 | 16-46857 | STUD (.312-18 x 1.875) | 8 | ||||||
| 7 | 10-818969 | SCREW | 4 | This Part is No Longer Available | |||||
| 8 | 12-822350 | WASHER | 4 | ||||||
| 9 | 57-821020 | BELT-Drive | 1 | ||||||
| 10 | 848090A2 | TENSIONER ASSEMBLY | 1 | 822309A3 | This Part is No Longer Available (EARLY STYLE) | ||||
| 11 | 848090A2 | BRACKET-Tensioner Mount | 1 | 847624 | This Part is No Longer Available (EARLY STYLE) 3 | ||||
| 12 | 10-847597 | SCREW (.250-20 x .625) | 2 | This Part is No Longer Available (EARLY STYLE) | |||||
| 13 | 10-847879 | SCREW (.312-18 x .750) | 2 | This Part is No Longer Available (EARLY STYLE) | |||||
| 14 | 848090T1 | TENSIONER ASSY (BLUE) | 1 | 848090A1 | This Part is No Longer Available (LATE STYLE) | ||||
| 15 | 848091T | PULLEY-Tensioner | 1 | 848091 | This Part is No Longer Available | ||||
| 16 | 10-848088 | SCREW-Special (.375-16 x 2.250) | 1 | This Part is No Longer Available | |||||
| 17 | 12-74759 | WASHER | 2 | ||||||
| 18 | 11-848089 | NUT-Special (.375-16) | 1 | This Part is No Longer Available | |||||
| 19 | 10-848106 | SCREW (.437-14 x 3.250) | 1 | This Part is No Longer Available | |||||
| 20 | 11-848107 | NUT (.437-14) | 1 | This Part is No Longer Available | |||||
| 21 | 12-45176 | WASHER | 2 | ||||||
| 22 | 8480681 | BRACKET ASSEMBLY-Tensioner Assembly | 1 | This Part is No Longer Available | |||||
| 23 | 12-37828 | WASHER | 1 | ||||||
| 24 | 10-848105 | SCREW (.375-16 x 3.250) | 1 | This Part is No Longer Available | |||||
| 25 | 16-848562 | STUD (.312-24 x 1.650) | 2 | ||||||
| 26 | 12-70132 | WASHER | 2 | ||||||
| 27 | 11-82670911 | NUT (.312-24) | 2 | 11-35814 | |||||
| 28 | 845606 | PLUG | 1 | 42534 | |||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available |
