800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Starter Assembly (50-17251A3)

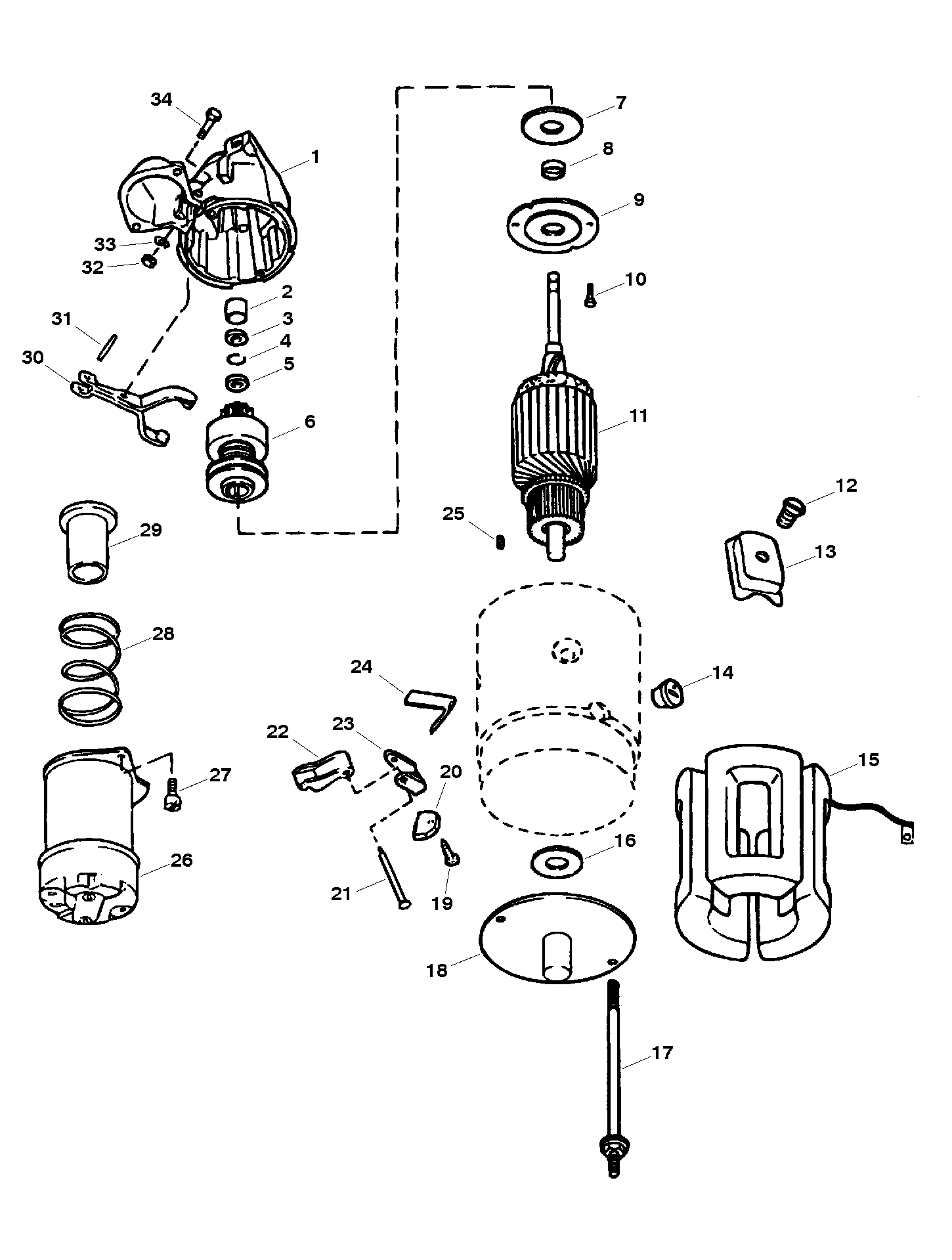

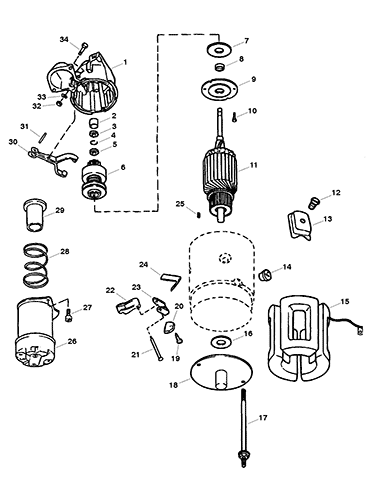

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Note: | NSS | (NOT SOLD SEPARATELY) SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING THE APPROP RIATE DELCO REMY MANUFACTURER'S PART NUMBER.|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| - | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-17251A3 | (DRIVELINE MODELS) 3 | |||||
| 1 | 79206 | HOUSING ASSY | 1 | This Part is No Longer Available (NO LONGER AVAILABLE) | ||||||
| 2 | 23-33369 | BUSHING-Drive End Housing | 1 | This Part is No Longer Available | ||||||
| 3 | 23-809457 | COLLAR-Thrust | 1 | 814474 | This Part is No Longer Available | |||||
| 4 | 53-33290 | RING-Retaining-Pinion Stop Collar | 1 | |||||||
| 5 | 33291 | COLLAR-Pinion Stop | 1 | |||||||
| 6 | 68608 | DRIVE ASSEMBLY-Clutch | 1 | This Part is No Longer Available | ||||||
| 7 | 12-68614 | WASHER-Bearing Plate | 1 | This Part is No Longer Available | ||||||
| 8 | 23-71694 | BUSHING-Bearing Plate | 1 | This Part is No Longer Available | ||||||
| 9 | 79396 | PLATE-Bearing | 1 | This Part is No Longer Available | ||||||
| 10 | 10-79209 | SCREW-Bearing | 2 | This Part is No Longer Available | ||||||
| 11 | 68606 | ARMATURE | 1 | This Part is No Longer Available | ||||||
| 12 | NSS | NOT SOLD SEPARATE, SCREW (#1968396) | 4 | This Part is not sold seperately (SEE NOTE) 7 | ||||||
| 13 | NSS | NOT SOLD SEPARATE, SHOE (#810601) | 4 | This Part is not sold seperately (SEE NOTE) 7 | ||||||
| 14 | NSS | NOT SOLD SEPARATE, GROMMET (#1846097) | 1 | This Part is not sold seperately (SEE NOTE) 7 | ||||||
| 15 | NSS | NOT SOLD SEPARATE, FIELD COIL ASY (#1970467) | 1 | This Part is not sold seperately (SEE NOTE) 7 | ||||||
| 16 | NSS | NOT SOLD SEPARATE, WASHER-Leather(#1985617) | 1 | This Part is not sold seperately (SEE NOTE) 7 | ||||||
| 17 | NSS | NOT SOLD SEPARATE, BOLT-Thru (#1939970) | 1 | This Part is not sold seperately 7 | ||||||
| 18 | 79211 | FRAME-Commutator End | 1 | This Part is No Longer Available | ||||||
| 19 | NSS | NOT SOLD SEPARATE, SCREW (#1967747) | 2 | This Part is not sold seperately 7 | ||||||
| 19 | NSS | NOT SOLD SEPARATE, SCREW (#443527) | 2 | This Part is not sold seperately 7 | ||||||
| 20 | 33270 | BRUSH-Field Frame | 4 | |||||||
| 21 | 33294 | SUPPORT | 2 | This Part is No Longer Available | ||||||
| 22 | 33284 | HOLDER-Insulated-Field Frame Brush | 2 | This Part is No Longer Available | ||||||
| 23 | 33283 | HOLDER-Field Frame Brush Ground | 2 | This Part is No Longer Available | ||||||
| 24 | 24-33285 | SPRING-Field Frame Brush | 4 | This Part is No Longer Available | ||||||
| 25 | NSS | NOT SOLD SEPARATE, PIN-Dowel (#1985696) | 1 | This Part is not sold seperately 7 | ||||||
| 26 | 89-18080 | 676-9-15102 | 700-72460 | SOLENOID | 1 | |||||
| 27 | NSS | NOT SOLD SEPARATE, SCREW-Solenoid (#132255) | 2 | This Part is not sold seperately 7 | ||||||
| 28 | 24-46889 | SPRING-Plunger Return | 1 | This Part is No Longer Available | ||||||
| 29 | 33317 | PLUNGER | 1 | This Part is No Longer Available | ||||||
| 30 | 33297 | LEVER-Shift | 1 | This Part is No Longer Available (NO LONGER AVAILABLE) | ||||||
| 31 | 17-79207 | PIN-Plunger to Shift Lever | 1 | This Part is No Longer Available (NO LONGER AVAILABLE) | ||||||
| 32 | 11-26484 | NUT (.312-18)-Shift Lever Stud | 1 | |||||||
| 33 | 12-68615 | WASHER-Shift Lever Stud | 1 | This Part is No Longer Available | ||||||
| 34 | NSS | NOT SOLD SEPARATE, STUD-Shift Lever (#1814529) | 1 | This Part is not sold seperately 7 | ||||||
