800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Exhaust Manifold Assembly

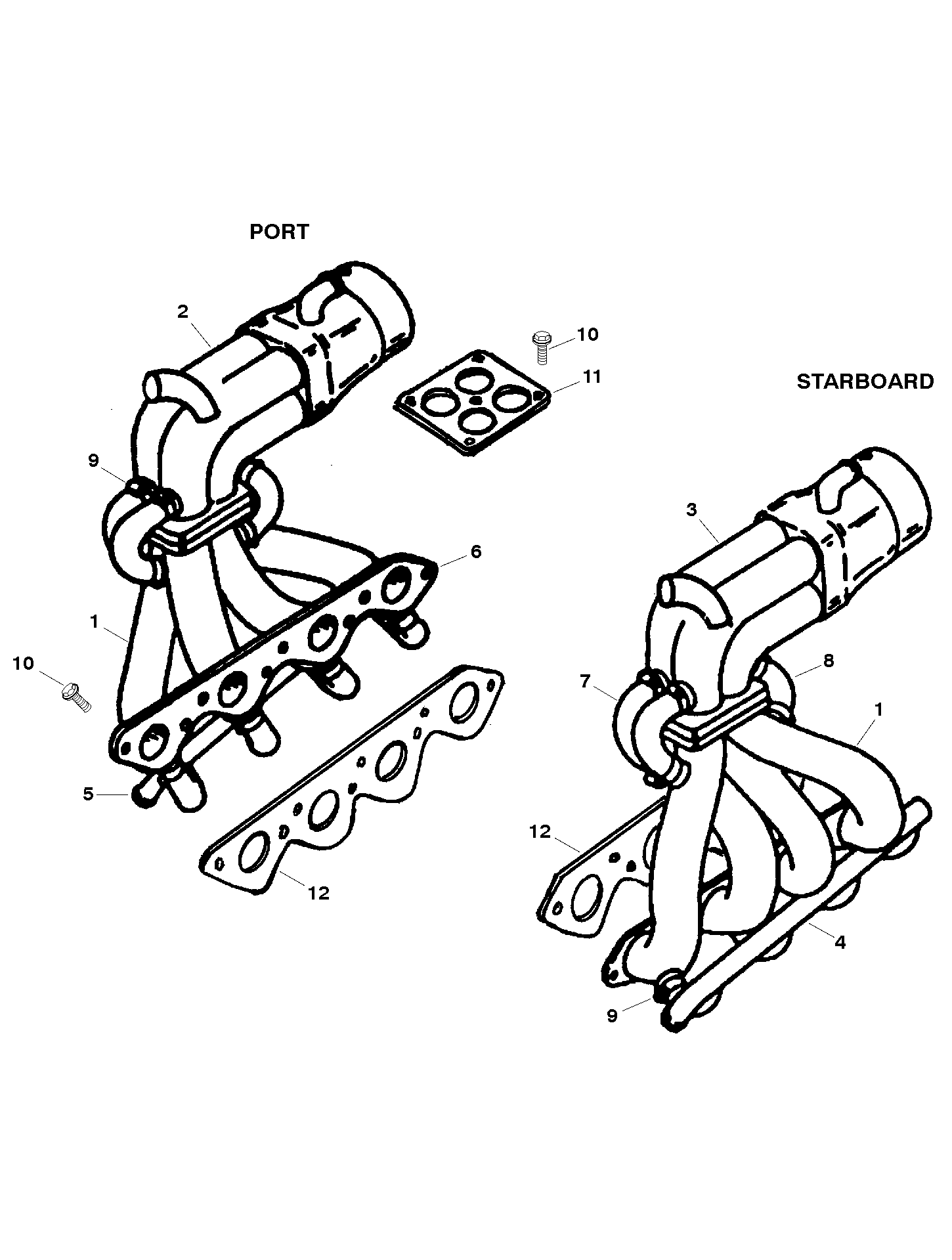

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 821137T2 | MANIFOLD ASSY-Exhaust | 1 | 821223A1 | This Part is No Longer Available (STARBOARD) | ||||
| 1 | 821137 | MANIFOLD-Exhaust-Lower | 1 | This Part is No Longer Available | |||||
| 2 | 821138 | MANIFOLD-Exhaust-Upper | 1 | ||||||
| 2 | 848006 | MANIFOLD-Exhaust-Upper | OPT | This Part is No Longer Available (TIPPED) 6 | |||||
| 4 | 32-821135 | TUBE-Water Distribution | 1 | This Part is No Longer Available | |||||
| 6 | 32-821134 | HOSE (90 Deg)-Distribution Tube | 4 | This Part is No Longer Available | |||||
| 7 | 32-821133 | HOSE (180 Deg)-Lower Manifold to Upper | 1 | This Part is No Longer Available | |||||
| 8 | 32-821132 | HOSE (115 Deg)-Lower Manifold to Upper | 3 | This Part is No Longer Available | |||||
| 9 | 54-180763 | CLAMP-Hose | 16 | ||||||
| 10 | 10-821131 | SCREW (.375-16 x 1.00) | 13 | ||||||
| 11 | 27-847934 | GASKET-Split Flange | 1 | This Part is No Longer Available 5 | |||||
| 12 | 27-841234 | GASKET-Manifold to Cylinder Head | 1 | 27-821129 | 5 | ||||
| - | 821137T1 | MANIFOLD ASSEMBLY-Exhaust | 1 | 821224A1 | This Part is No Longer Available (PORT) | ||||
| 1 | 821137 | MANIFOLD-Exhaust-Lower | 1 | This Part is No Longer Available | |||||
| 3 | 821139 | MANIFOLD-Exhaust-Upper | 1 | ||||||
| 3 | 848005 | MANIFOLD-Exhaust-Upper | OPT | This Part is No Longer Available (TIPPED) 6 | |||||
| 5 | 32-821136 | TUBE-Water Distribution | 1 | This Part is No Longer Available | |||||
| 6 | 32-821134 | HOSE (90 Deg)-Distribution Tube | 4 | This Part is No Longer Available | |||||
| 7 | 32-821133 | HOSE (180 Deg)-Lower Manifold to Upper | 2 | This Part is No Longer Available | |||||
| 8 | 32-821132 | HOSE (115 Deg)-Lower Manifold to Upper | 2 | This Part is No Longer Available | |||||
| 9 | 54-180763 | CLAMP-Hose | 16 | ||||||
| 10 | 10-821131 | SCREW (.375-16 x 1.00) | 13 | ||||||
| 11 | 27-847934 | GASKET-Split Flange | 1 | This Part is No Longer Available 5 | |||||
| 12 | 27-841234 | GASKET-Manifold to Cylinder Head | 1 | 27-821129 | 5 | ||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available |
