800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Flywheel Housing (Transmission Models)

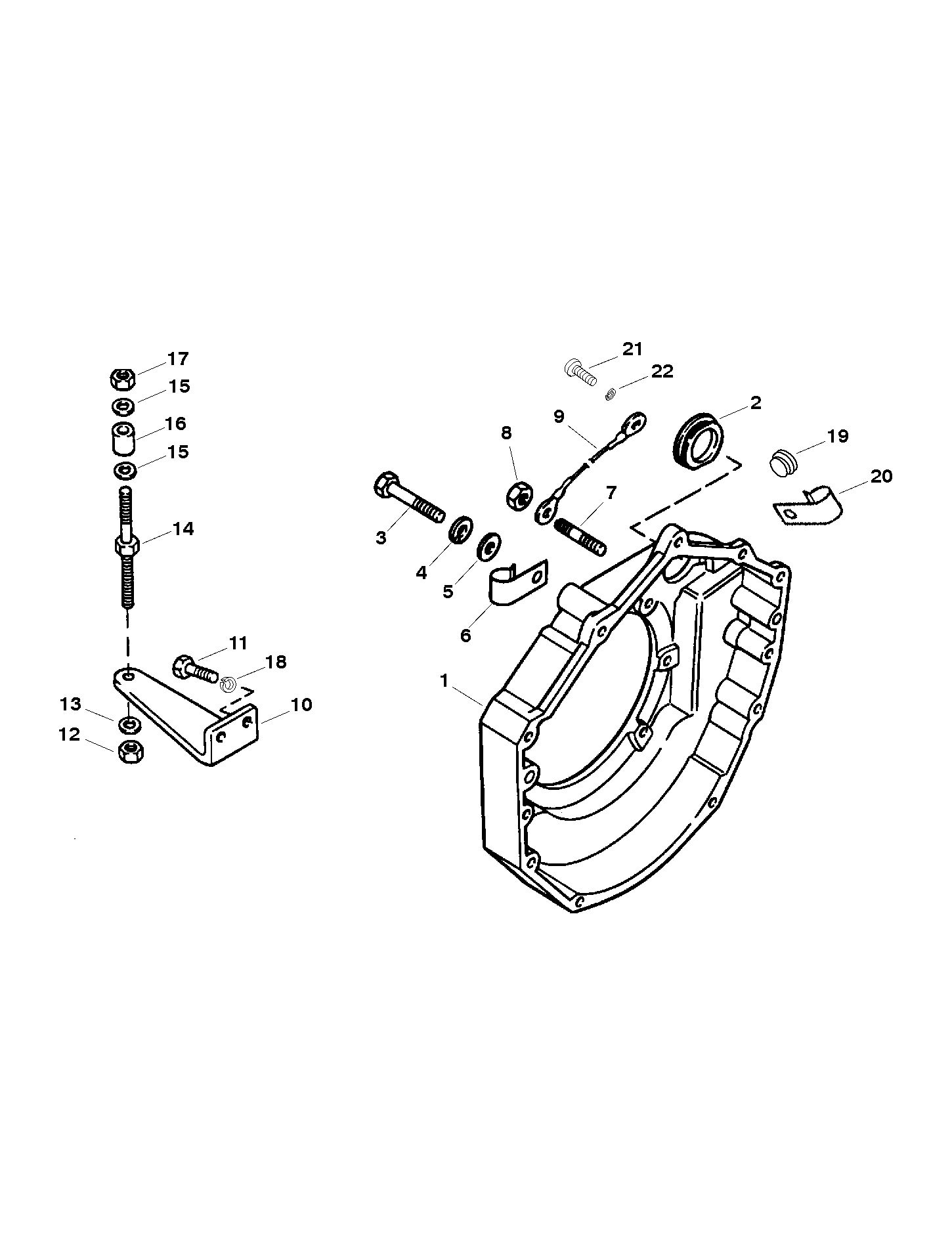

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 44187T         HOUSING-Flywheel 1
2 19-12304         PLUG-Timing Window 1
3 10-48424         SCREW (.375-16 x 1.620) 2
3 10-37612         SCREW (.375-16 x 1.250) 1
3 10-53734         SCREW (.375-16 x 3.00) 2
4 13-35048         LOCKWASHER (.375) 8
5 12-20553         WASHER 6
5 12-20572         WASHER (FOR SLOT) 1
6 54-78945         J CLIP 2
7 16-64066         STUD (2.750 In.) 2
8 11-32219         NUT (.375-16) 2
9 84-62826A12         CABLE ASSEMBLY-Ground 2
10 17917         BRACKET-Shift 1   DRIVELINE MODELS
11 10-28668         SCREW (.250-20 x .875) 2   DRIVELINE MODELS
12 11-826709109         NUT (.250-28) 1 11-35045 DRIVELINE MODELS
13 12-39143         WASHER 1   DRIVELINE MODELS
14 16-63335         STUD 1   This Part is No Longer Available
DRIVELINE MODELS
15 12-69056         WASHER 2 12-21631 DRIVELINE MODELS
16 23-31866         SPACER 1   DRIVELINE MODELS
17 11-8267089         NUT (.250-28) 1 11-20361 DRIVELINE MODELS
18 13-26992         LOCKWASHER (.250) 2   DRIVELINE MODELS
19 19-38606         PLUG 1
20 54-62494         CLIP-Hose 1
21 10-62568         SCREW (#10-16 x .375) 1
22 13-69432         LOCKWASHER (#10) 1
