800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Driveshaft And Tailstock (Driveline)

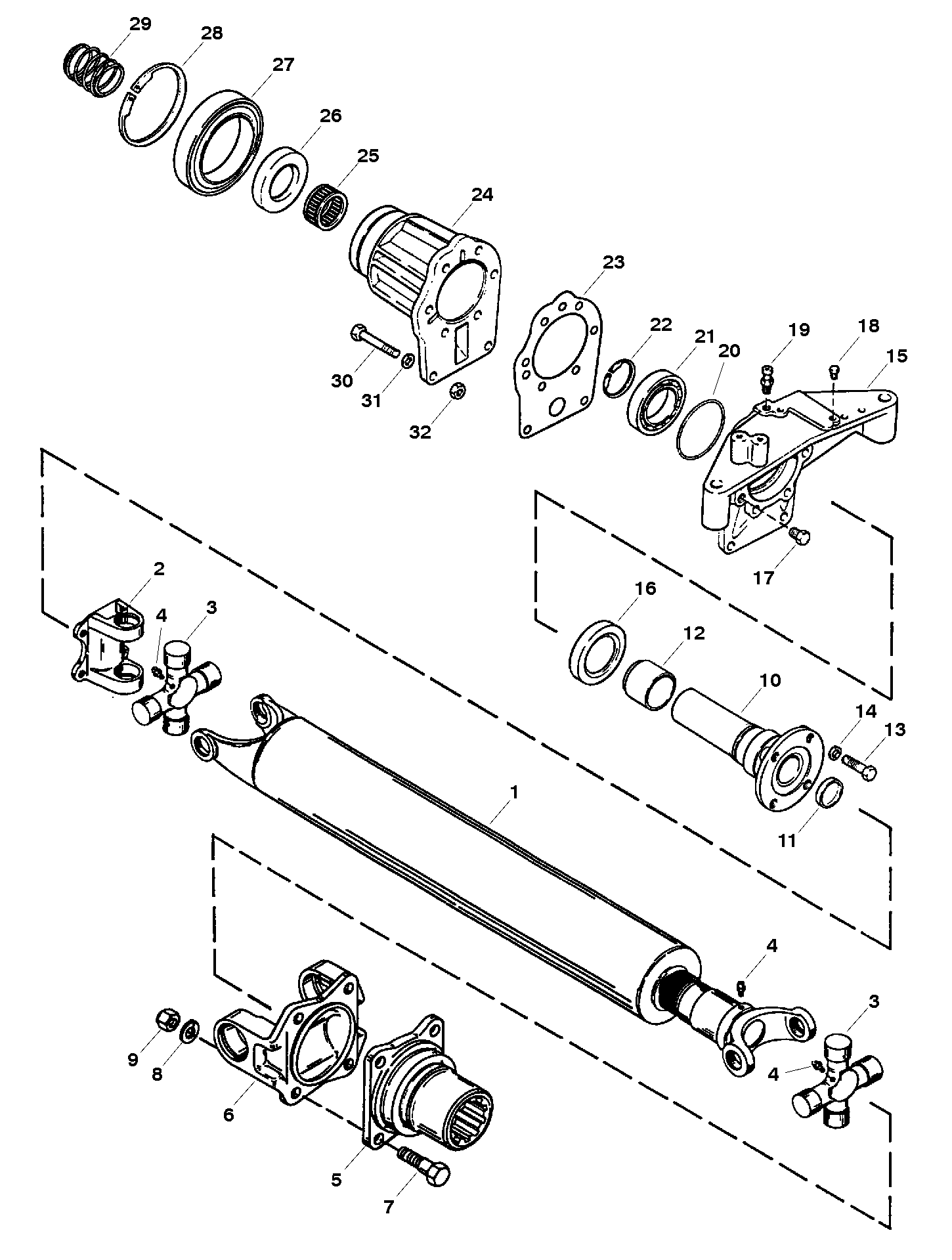

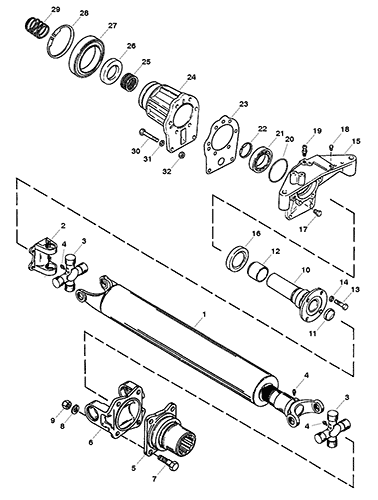

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-86978A3 | DRIVESHAFT ASSEMBLY (36.940 In.) | 1 | 45-86978A1 | |||||
| 1 | 45-53967A1 | DRIVESHAFT ASSEMBLY (43.625 In.) | 1 | This Part is No Longer Available | |||||
| 2 | 61218 | FLANGE-Driveshaft | 1 | ||||||
| 3 | 61221T | UNIVERSAL JOINT KIT | 2 | 61221 | |||||
| 4 | 22-74036 | FITTING-Grease | 2 | ||||||
| 5 | 96276T4 | YOKE ASSEMBLY | 1 | 96276A2 | |||||
| 6 | 61218 | FLANGE | 1 | ||||||
| 7 | 10-68743 | SCREW (.437-20 x 1.250) | 4 | This Part is No Longer Available | |||||
| 8 | 12-861854 | WASHER | 4 | 12-91964 | |||||
| 9 | 11-34933 | 676-9-72004 | NUT (.437-20) | 4 | |||||
| - | 52513A3 | TAILSTOCK ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 10 | 52505A1 | SHAFT ASSEMBLY-Driveshaft Extension | 1 | This Part is No Longer Available | |||||
| 11 | 19-47463 | PLUG | 1 | ||||||
| 12 | 23-47471T | BEARING | 1 | 23-47471 | |||||
| 13 | 10-60106 | SCREW (.437-20 x 1.250) | 4 | This Part is No Longer Available | |||||
| 14 | 12-45176 | WASHER | 4 | ||||||
| 15 | 55434A2 | HOUSING ASSY-Driveshaft Extension | 1 | This Part is No Longer Available | |||||
| 16 | 26-52499 | SEAL-Oil | 1 | ||||||
| 17 | 22-36382 | 700-21887 | PLUG-Pipe (.250) | 1 | |||||
| 18 | 22-328022 | PLUG-Pipe (.125) | 1 | 22-32802 | 3 | ||||
| 19 | 22-47902 | FITTING | 1 | ||||||
| 20 | 15-49264A1 | SHIM SET-Driveshaft Extension Housing | 1 | This Part is No Longer Available no longer made, limited availability | |||||
| 21 | 30-47470 | BEARING-Ball | 1 | ||||||
| 22 | 53-52502 | RING-Snap | 1 | ||||||
| 23 | 27-52501 | GASKET | 1 | ||||||
| 24 | 52506A1 | HOUSING ASSEMBLY-Bearing Support | 1 | This Part is No Longer Available | |||||
| 25 | 31-47468T | BEARING-Needle | 1 | 31-47468 | This Part is No Longer Available | ||||
| 26 | 26-47465 | SEAL-Oil | 1 | ||||||
| 27 | 53-52507 | RING-Support | 1 | This Part is No Longer Available | |||||
| 28 | 53-52503 | RING-Snap | 1 | This Part is No Longer Available | |||||
| 29 | 24-47755 | SPRING-Yoke Guide | 1 | ||||||
| 30 | 10-56393 | SCREW (.437-20 x 1.750) | 2 | ||||||
| 30 | 10-32695 | SCREW (.437-20 x 2.250) | 4 | ||||||
| 30 | 10-32515 | SCREW (.437-20 x 2.500) | 2 | ||||||
| 31 | 12-22248 | WASHER | 8 | ||||||
| 32 | 11-35053 | NUT (.437-20) | 8 |
