800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Carburetor And Linkage (Page 2 0F 2)

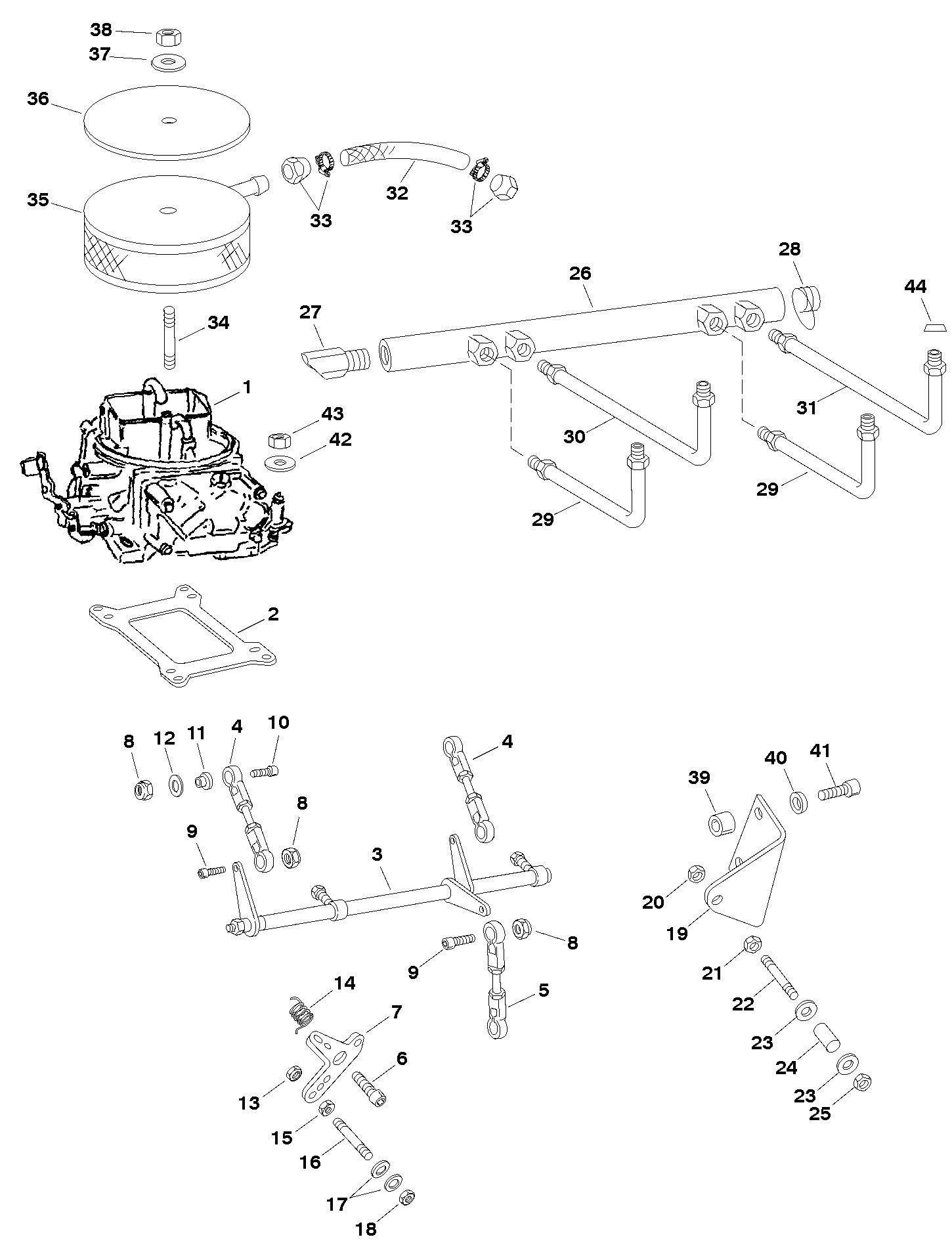

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 3312-821030A17 | CARBURETOR (BLUE) | 1 | This Part is No Longer Available (REAR) | |||||
| 1 | 3312-821030A18 | CARBURETOR (BLUE) | 1 | (FRONT) | |||||
| 32 | 32-821284A8 | HOSE ASSEMBLY (16.00 In.)-Breather | 2 | ||||||
| 33 | 54-84763012 | CLAMP-Hose | 4 | This Part is No Longer Available | |||||
| 34 | 16-30667 | 676-9-78143 | STUD (.250-28 x 3.125)-Flame Arrestor | 2 | |||||
| 35 | 818755T | ARRESTOR-Flame | 1 | 818755 | (FRONT) (SERIAL # 0F348742 AND BELOW) | ||||
| 35 | 8187561 | ARRESTOR-Flame | 1 | 818756 | This Part is No Longer Available (REAR) (SERIAL # 0F348742 AND BELOW) | ||||
| 35 | 8486231 | ARRESTOR-Flame | 1 | 848623 | (FRONT) (SERIAL # 0F615830 THRU 0K000911) 3 | ||||
| 35 | 8485881 | ARRESTOR-Flame | 1 | 848588 | (REAR) (SERIAL # 0F615830 THRU 0K000911) 3 | ||||
| 35 | 848918 | ARRESTOR-Flame | 1 | (FRONT) (SERIAL # 0L000186 AND UP) . | |||||
| 35 | 848916 | ARRESTOR-Flame | 1 | This Part is No Longer Available (REAR) (SERIAL # 0L000186 AND UP) . | |||||
| 36 | 37-848625 | DECAL | 1 | 37-818989 | (FRONT) (SERIAL # 0F348742 AND BELOW) | ||||
| 36 | 37-818990 | DECAL | 1 | This Part is No Longer Available (REAR) (SERIAL # 0F348742 AND BELOW) | |||||
| 36 | 37-848600 | DECAL | 1 | This Part is No Longer Available (FRONT) (SERIAL # 0F615830 THRU 0K000911) | |||||
| 36 | 37-848625 | DECAL | 1 | (REAR) (SERIAL # 0F615830 THRU 0K000911) | |||||
| 37 | 12-86400 | WASHER | 2 | ||||||
| 38 | 11-35888 | 676-9-72001 | 700-21180 | NUT (.250-28) | 2 | ||||
| 39 | 821018 | SPACER | 2 | This Part is No Longer Available | |||||
| 40 | 12-70132 | WASHER | 2 | ||||||
| 41 | 10-821281 | SCREW (.312-18 x 2.500) | 2 | ||||||
| 42 | 12-848136 | WASHER | 8 | ||||||
| 43 | 11-82670911 | NUT (.312-24) | 8 | 11-35814 | |||||
| 44 | 27-848438 | GASKET-Flare (Copper) | 4 |
