800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Distributor And Ignition Components

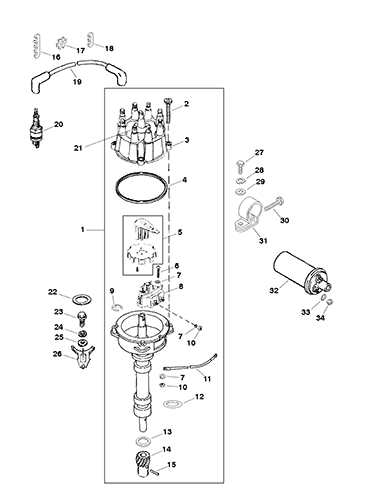

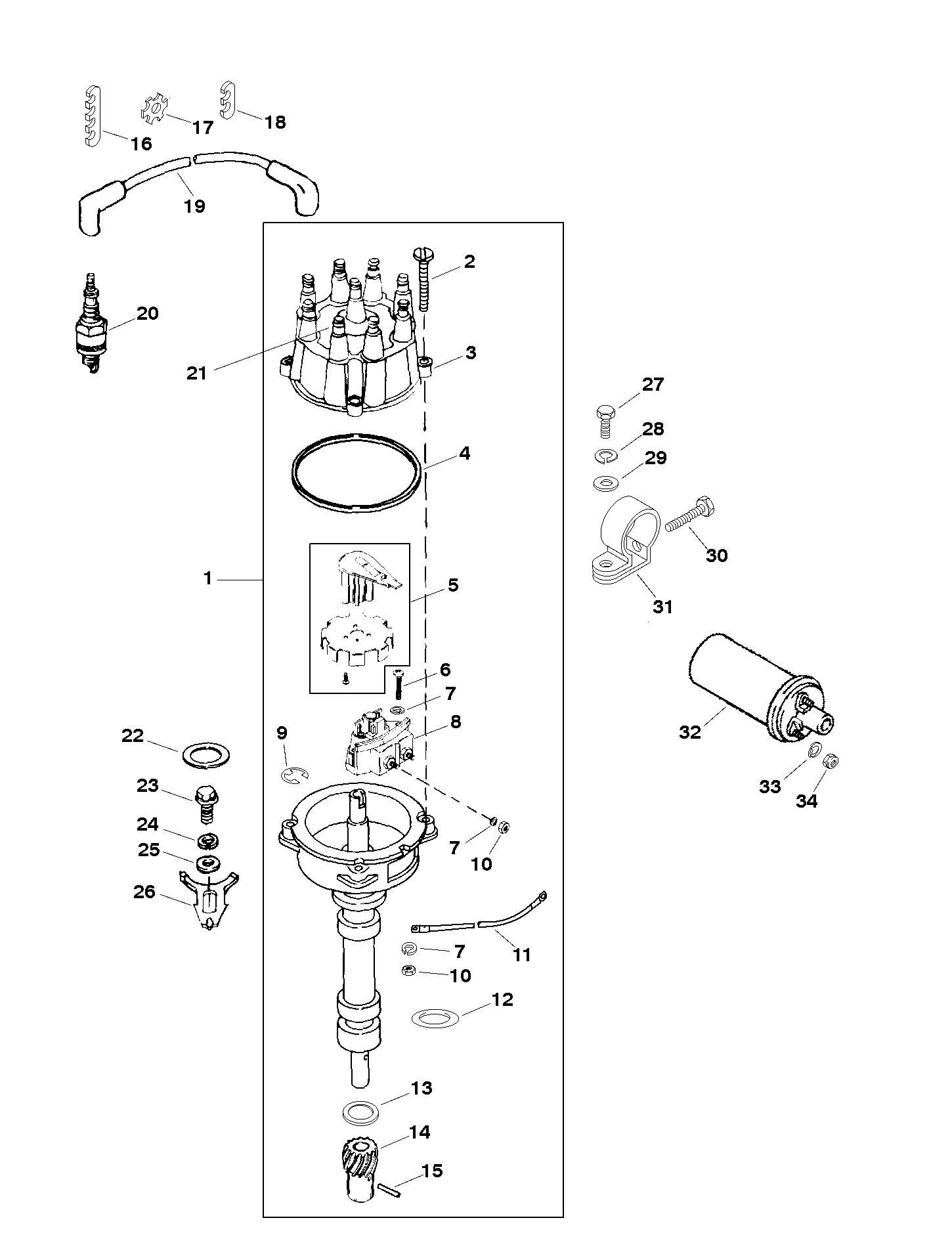

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805185A28 | DISTRIBUTOR ASSEMBLY | 1 | ||||||
| 2 | 10-90926 | SCREW (#10-32 x .812) | 4 | ||||||
| 3 | 805759T1 | CAP ASSEMBLY | 1 | 805759A2 | |||||
| 4 | 27-805760 | GASKET-Distributor Cap | 1 | 5 | |||||
| 5 | 13524T1 | WHEEL ASSEMBLY-Rotor Sensor | 1 | 13524A5 | 3 | ||||
| 6 | 10-66686 | SCREW (#10-32 x 1.00) | 1 | ||||||
| 6 | 10-72202 | SCREW (#10-32 x 1.250) | 1 | ||||||
| 7 | 13-26996 | LOCKWASHER (#10) | 5 | ||||||
| 8 | 87-892150Q02 | SENSOR ASSEMBLY | 1 | 87-91019A3 | |||||
| 9 | 53-90916 | RING-Retaining-Distributor Shaft | 1 | ||||||
| 10 | 11-68219 | NUT (#10-32) | 3 | ||||||
| 11 | 84-86322A17 | CABLE ASSEMBLY (Black)-Ground | 1 | This Part is No Longer Available | |||||
| 12 | 25-23145 | O RING | 1 | ||||||
| 13 | 12-90931 | WASHER-Thrust | 1 | ||||||
| 14 | 43-818807 | GEAR-Drive | 1 | ||||||
| 15 | 17-47617 | PIN-Roll | 1 | ||||||
| 16 | 32783 | RETAINER (3 WIRE) | 2 | ||||||
| 17 | 32784 | RETAINER (4 WIRE) | 4 | ||||||
| 18 | 54676 | RETAINER (2 WIRE) | 2 | ||||||
| 19 | 84-847701Q7 | CABLE KIT-Ignition-Spark Plugs/Coil (BLUE) | 1 | 84-847701A7 | |||||
| 20 | 33-8134214 | SPARK PLUG | 8 | 33-813421 | 2 | ||||
| 21 | 37-92155 | DECAL-Distributor Cap-Firing Order | 1 | . | |||||
| 22 | 27-344863 | GASKET | 1 | 5 | |||||
| 23 | 10-76926 | SCREW (.375-16 x .875) | 1 | ||||||
| 24 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 25 | 12-20553 | WASHER | 1 | ||||||
| 26 | 52185 | CLAMP | 1 | ||||||
| 27 | 10-76926 | SCREW (.375-16 x .880) | 1 | ||||||
| 28 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 29 | 12-20553 | WASHER | 1 | ||||||
| 30 | 10-41408 | SCREW (#10-32 x 1.500) | 1 | ||||||
| 31 | 65970T1 | BRACKET-Coil Mount (On Elec Bracket) | 1 | 65970T | 3 | ||||
| 32 | 300-8M0079202 | COIL KIT-Ignition | 1 | 392-805570A2 | |||||
| 33 | 13-26996 | LOCKWASHER (#10) | 2 | ||||||
| 34 | 11-68219 | NUT (#10-32) | 2 | ||||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available | |||||
| - | 847718A10 | COMPONENT OF PARTIAL ENGINE | 847718a10 | This Part is No Longer Available |
