800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Thermostat Housing And Water Hoses

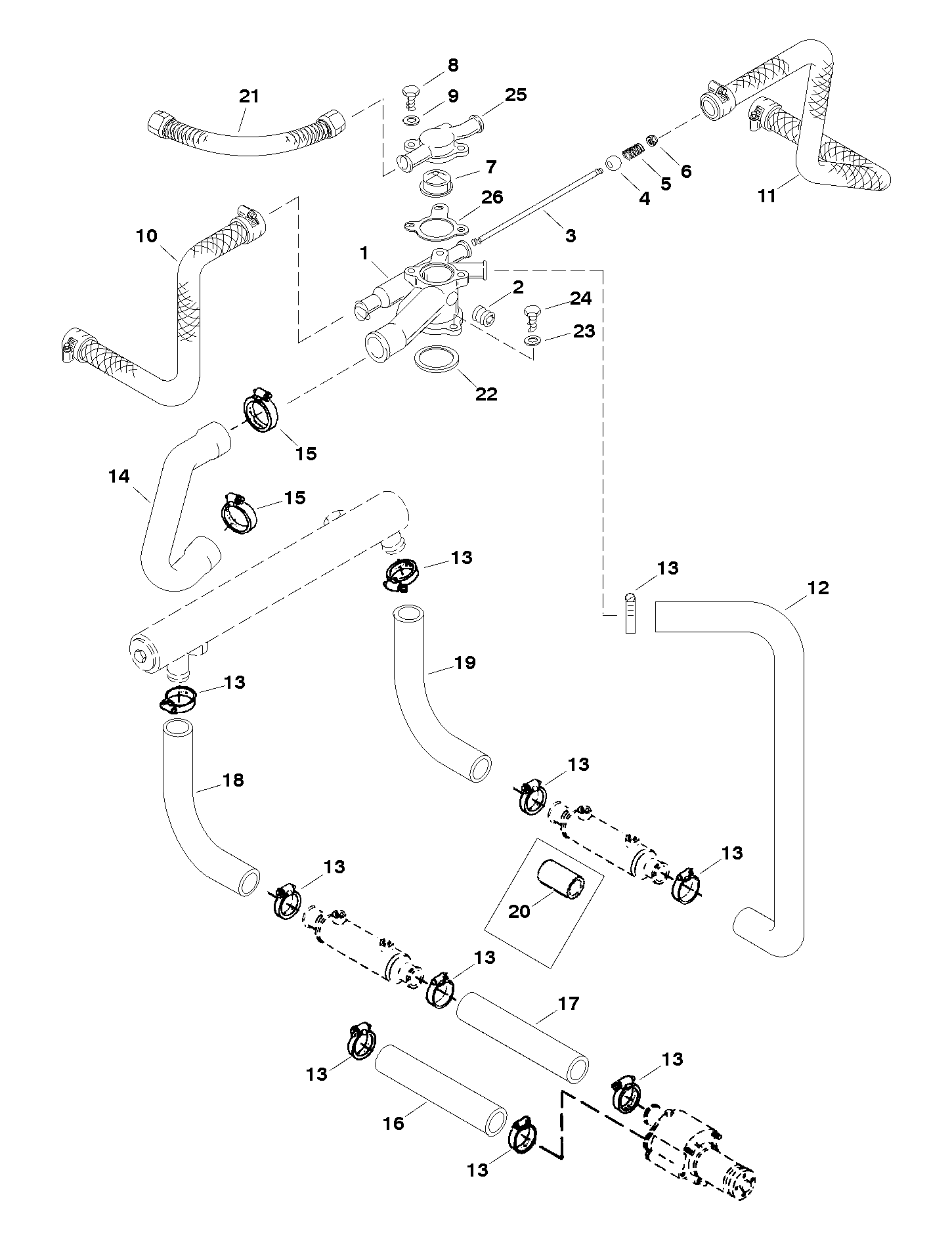

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 847704A1 | HOUSING ASSEMBLY-Thermostat (Painted) | 1 | This Part is No Longer Available | |||||
| 2 | 22-36373 | PLUG-Pipe (.375-18) | 1 | ||||||
| 3 | 16-847742 | STUD-By Pass Valve | 1 | ||||||
| 4 | 30-98475 | BALL-Nylon | 2 | ||||||
| 5 | 24-75533 | SPRING | 2 | ||||||
| 6 | 11-826709106 | NUT (#10-32) | 2 | 11-29488 | |||||
| 7 | 591371 | THERMOSTAT | 1 | ||||||
| 8 | 10-30206 | 700-22430 | SCREW (.375-16 x 1.00)-Cover To Housing | 2 | |||||
| 9 | 12-37828 | WASHER | 2 | ||||||
| 10 | 32-847707A5 | HOSE ASSEMBLY (24.00 In.) -Housing To Pipe | 1 | This Part is No Longer Available (STARBOARD) | |||||
| 11 | 32-847707A4 | HOSE ASSEMBLY (22.00 In.) -Housing To Pipe | 1 | This Part is No Longer Available (PORT) | |||||
| 12 | 32-818361 | HOSE-Tube To Thermostat Housing | 1 | This Part is No Longer Available | |||||
| 13 | 54-180766 | CLAMP | AR | 4 | |||||
| 14 | 32-842412A02 | HOSE-Thermostat Housing To Pump | 1 | 32-822525 | |||||
| 15 | 54-180768 | CLAMP | 2 | ||||||
| 16 | 32-1743565 | HOSE-Pickup To Pump | 1 | ||||||
| 17 | 32-8M0062665 | HOSE (48.00 In.)-Pump To Trans Cooler | 1 | 32-5346170 | |||||
| 18 | 32-816504 | HOSE-Trans Cooler To Engine Cooler | 1 | ||||||
| 19 | 32-848956 | HOSE-Engine Cooler To Connector Tube | 1 | 32-12818 | 3 | ||||
| 20 | 22-13177 | TUBE-Connector | 1 | (NON POWER STEERING) | |||||
| 21 | 32-847707A3 | HOSE ASSEMBLY -Cover To Manifold | 1 | This Part is No Longer Available (18.00 IN.) (STARBOARD) | |||||
| 21 | 32-847707A2 | HOSE ASSEMBLY -Cover To Manifold | 1 | This Part is No Longer Available (16.00 IN.) (PORT) | |||||
| 22 | 25-20826 | 700-82280 | 525-25-20826 | O RING | 1 | 5 | |||
| 23 | 12-20086 | WASHER-Housing To Manifold | 3 | ||||||
| 24 | 10-34353 | SCREW (.375-16 x 1.00)-Housing To Manifold | 3 | ||||||
| 25 | 847706T1 | COVER-Thermostat (Black) | 1 | 8477061 | |||||
| 26 | 27-818364 | GASKET-Thermostat | 1 | 5 | |||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available |
