800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Sea Water Pump Assembly

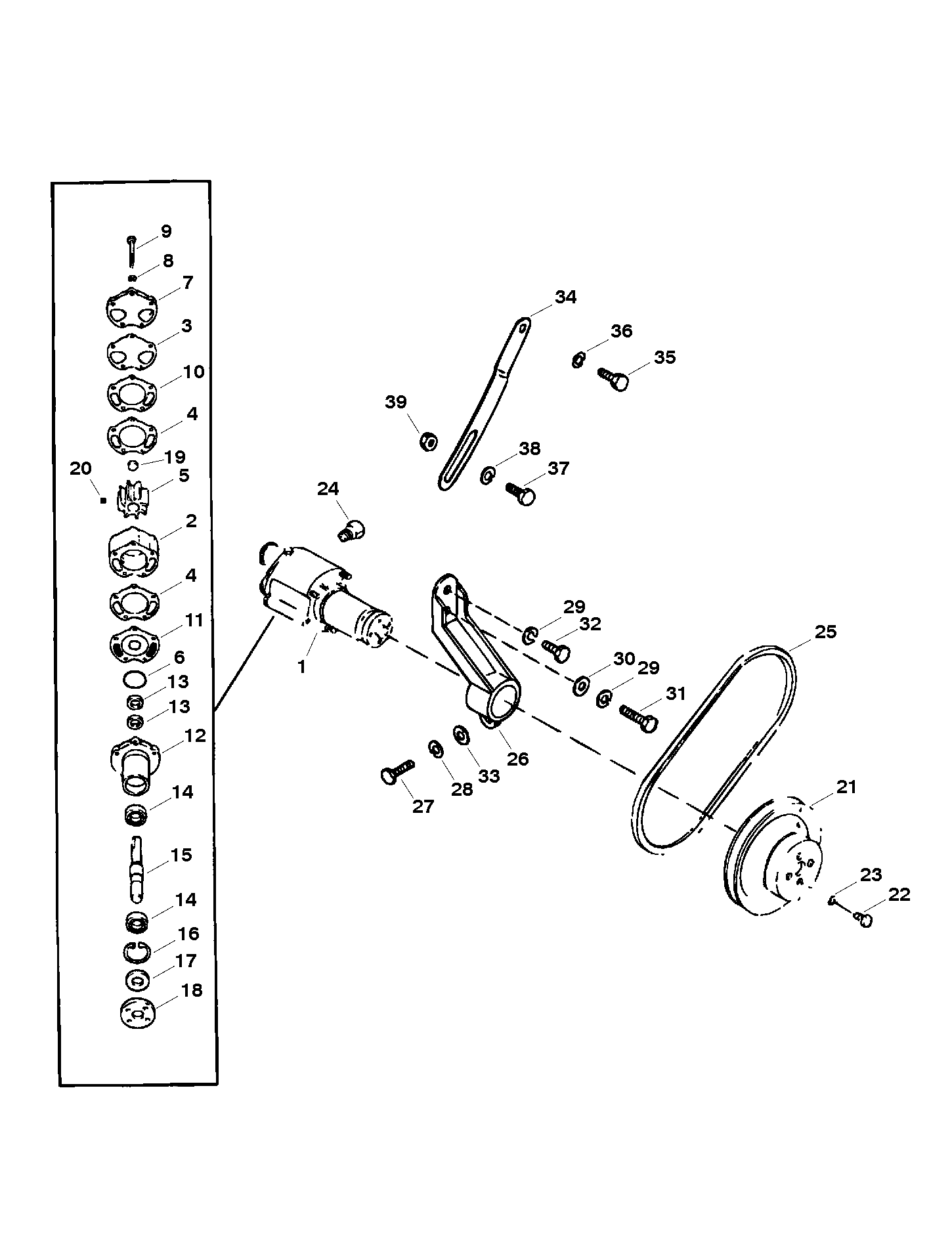

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-72774T38 | PUMP ASSEMBLY-Sea Water | 1 | 46-72774A38 | |||||
| 2 | 46-72774A89 | BODY/IMPELLER KIT-Sea Water Pump | 1 | ||||||
| 3 | 27-8052151 | GASKET-Cover to Outer Wear Plate | 1 | ||||||
| 4 | 27-94914 | GASKET-Body to Wear Plate | 2 | ||||||
| 5 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER (USE WITHOUT KEY) | 1 | 47-593621 | ||
| 6 | 25-94288 | RING-Quad-Pump Housing | 1 | ||||||
| 7 | 87631A4 | COVER KIT-Sea Water Pump | 1 | (ALSO INCLUDES #3) | |||||
| 8 | 12-20084 | WASHER | 5 | ||||||
| 9 | 10-73275 | SCREW (.312-18 x 2.875) | 5 | ||||||
| 10 | 94916 | WEAR PLATE-Outer | 1 | ||||||
| 11 | 94576 | WEAR PLATE-Inner | 1 | ||||||
| 12 | 46-94913A1 | HOUSING ASSEMBLY-Sea Water Pump | 1 | ||||||
| 13 | 26-90562 | 676-9-76107 | 700-85080 | SEAL-Oil-Sea Water Pump Shaft | 2 | ||||
| 14 | 30-72961 | BEARING-Ball-Sea Water Pump Shaft | 2 | ||||||
| 15 | 59501A1 | SHAFT-Sea Water Pump | 1 | ||||||
| 16 | 53-23720 | RING-Retaining-Ball Bearing | 1 | ||||||
| 17 | 26-72785 | SEAL-Oil-Sea Water Pump Shaft | 1 | ||||||
| 18 | 47530 | HUB-Sea Water Pump Pulley | 1 | ||||||
| 19 | 19-59504 | PLUG-Impeller | 1 | ||||||
| 20 | 8M0032837 | KEY-Impeller Drive | 1 | 28-56662 | |||||
| 21 | 737981 | PULLEY-Sea Water Pump (BLUE) | 1 | This Part is No Longer Available | |||||
| 22 | 10-47277 | SCREW (.312-24 x .750) | 4 | ||||||
| 23 | 13-39107 | 700-21496 | LOCKWASHER (.312) | 4 | |||||
| 24 | 22-328022 | PLUG-Pipe (.125-27) | 1 | 22-32802 | (FOR WATER PUMP BODY) 3 | ||||
| 25 | 57-847889Q | V BELT-Sea Water Pump | 1 | 57-847889 | |||||
| 26 | 474891 | BRACKET-Sea Water Pump | 1 | ||||||
| 27 | 10-34354 | SCREW (.375-16 x 1.500) | 1 | ||||||
| 28 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 29 | 13-32993 | LOCKWASHER (.437) | 2 | ||||||
| 30 | 12-27025 | WASHER | 1 | ||||||
| 31 | 10-47462 | SCREW (.437-14 x 1.00) Bracket to Block-Bottom | 1 | ||||||
| 32 | 10-48948 | SCREW (.437-14 x .875) Bracket to Block-Top | 1 | This Part is No Longer Available | |||||
| 33 | 12-29330 | WASHER (For Slot) | 1 | ||||||
| 34 | 47544 | BRACE-Water Pump | 1 | ||||||
| 35 | 10-47462 | SCREW (.437-14 x 1.250) | 1 | ||||||
| 36 | 13-32993 | LOCKWASHER (.437) | 1 | ||||||
| 37 | 10-35786 | SCREW (.375-24 x 1.00) | 1 | ||||||
| 38 | 13-35048 | LOCKWASHER (.375) | 1 | ||||||
| 39 | 11-46335 | NUT (.375-24) | 1 |
