800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Oil Pan And Oil Pump

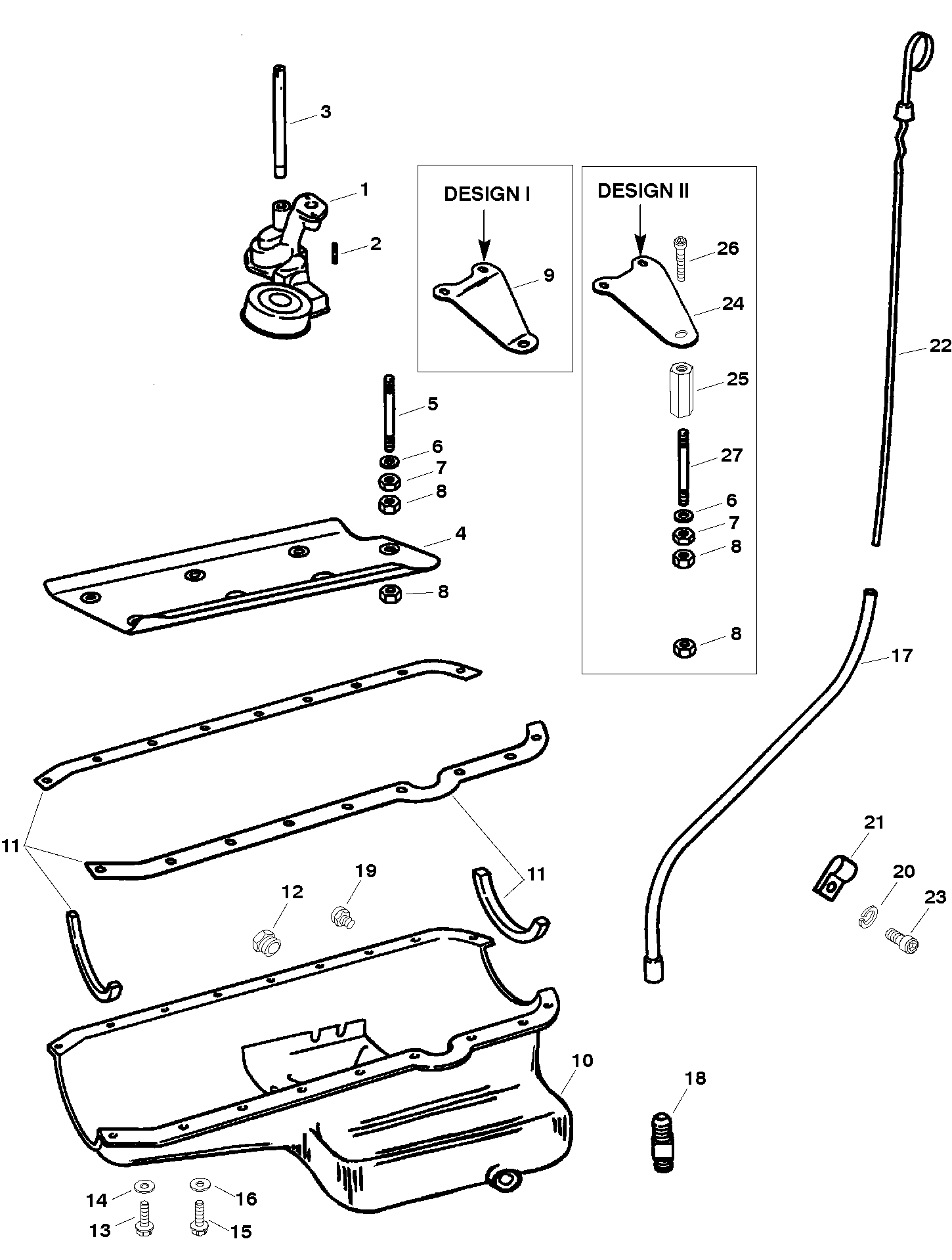

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 98337T6 | PUMP ASSEMBLY-Oil | 1 | 98337A6 | 2 | ||||
| 2 | 16-845599 | STUD | 1 | 16-49108 | 2 | ||||
| 3 | 848511 | SHAFT | 1 | 2 | |||||
| 4 | 8485431 | WINDAGE TRAY | 1 | 2 | |||||
| 5 | 16-816254 | STUD (Special) | 6 | 2 | |||||
| 6 | 12-816258 | WASHER | 6 | 2 | |||||
| 7 | 11-816255 | NUT (Special) | 6 | 2 | |||||
| 8 | 11-816257 | NUT (Special) | 12 | 2 | |||||
| 9 | 849529A1 | SUPPORT-Oil Pump | 1 | 8143941 | (DESIGN I) 2,3 | ||||
| 10 | 817025T1 | PAN-Oil | 1 | 8170251 | 2 | ||||
| 11 | 27-848305 | GASKET SET-Oil Pan | 1 | 2,5 | |||||
| 12 | 22-36373 | PLUG (.375-18)-Pipe | 2 | 2 | |||||
| 13 | 10-55714 | SCREW (.312-18 x .875) | 12 | 2 | |||||
| 13 | 10-54523 | SCREW (.312-18 x 1.00) | 2 | 2 | |||||
| 14 | 12-20546 | WASHER | 14 | 2 | |||||
| 15 | 10-55715 | SCREW (.250-20 x .875) | 2 | 2 | |||||
| 16 | 12-20028 | WASHER | 2 | 2 | |||||
| 17 | 847599 | TUBE-Oil Dipstick | 1 | 2 | |||||
| 18 | 22-42277 | FITTING | 1 | This Part is No Longer Available 2 | |||||
| 19 | 19-8154731 | PLUG (.875-14)-Drain | 1 | 2 | |||||
| 20 | 13-26992 | LOCKWASHER (.250) | 1 | 2 | |||||
| 21 | 54-822279 | CLIP-Oil Tube Support | 1 | 2 | |||||
| 22 | 94010 | DIPSTICK | 1 | This Part is No Longer Available 2 | |||||
| 23 | 10-817505 | SCREW (.250-20 x .620) | 1 | 2 | |||||
| 24 | 849529A1 | BRACE KIT-Oil Pump | 1 | (DESIGN II) 2 | |||||
| 25 | 11-849530 | NUT (Special) | 1 | ||||||
| 26 | 10-849660 | SCREW (.375-24 x 1.00) | 1 | ||||||
| 27 | 16-816254 | STUD (Special) | 1 | ||||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available | |||||
| - | 847718A10 | COMPONENT OF PARTIAL ENGINE | This Part is No Longer Available |
