800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Reservoir Bottle (Transmission Fluid)

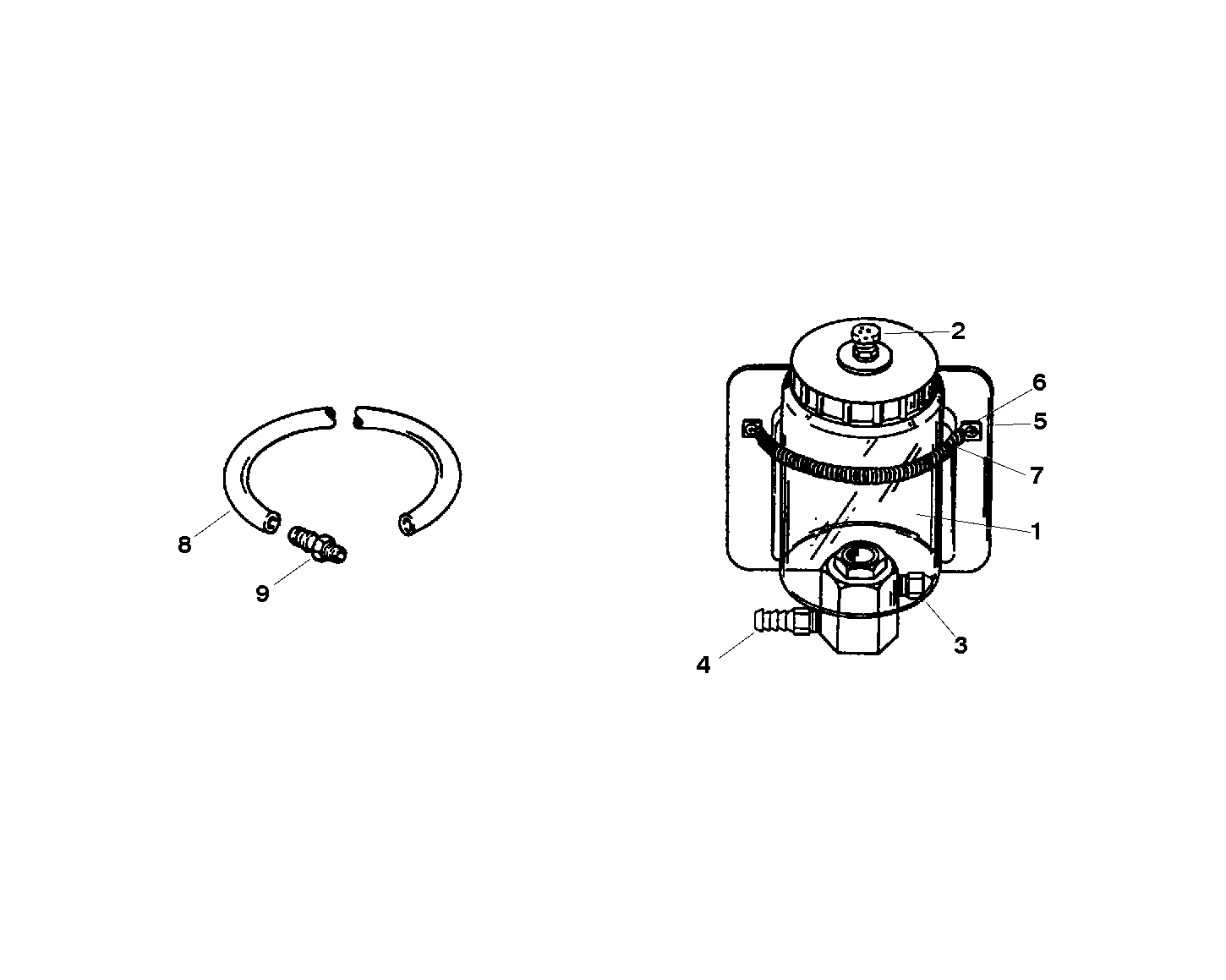

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 86250A5         RESERVOIR KIT (Transmission Models) 1
1 86250A2         BOTTLE ASSEMBLY-Reservoir 1
2 22-47902         FITTING-Breather 1
NS 27-69620         GASKET-Reservoir Bottle Cover 1
3 22-36382     700-21887   PLUG 1
4 22-63187         FITTING (.250-18) 1
5 86030         BRACKET-Reservoir 1
6 67905         RETAINER-Reservoir Spring 2
NS 10-22793         SCREW (#9-14 x .875) 3
NS 12-58198         WASHER 3
7 24-67908         SPRING-Reservoir Bracket 1
8 32-774572         HOSE (48.00 In.) 1
9 22-63186         FITTING (.125-27) 1
NS 69355         STA STRAP-End of Hose 2
