800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Crankshaft, Pistons And Connecting Rods

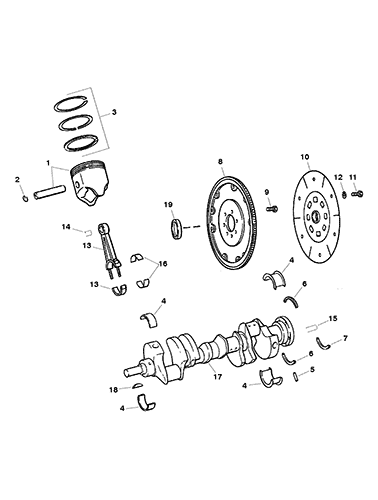

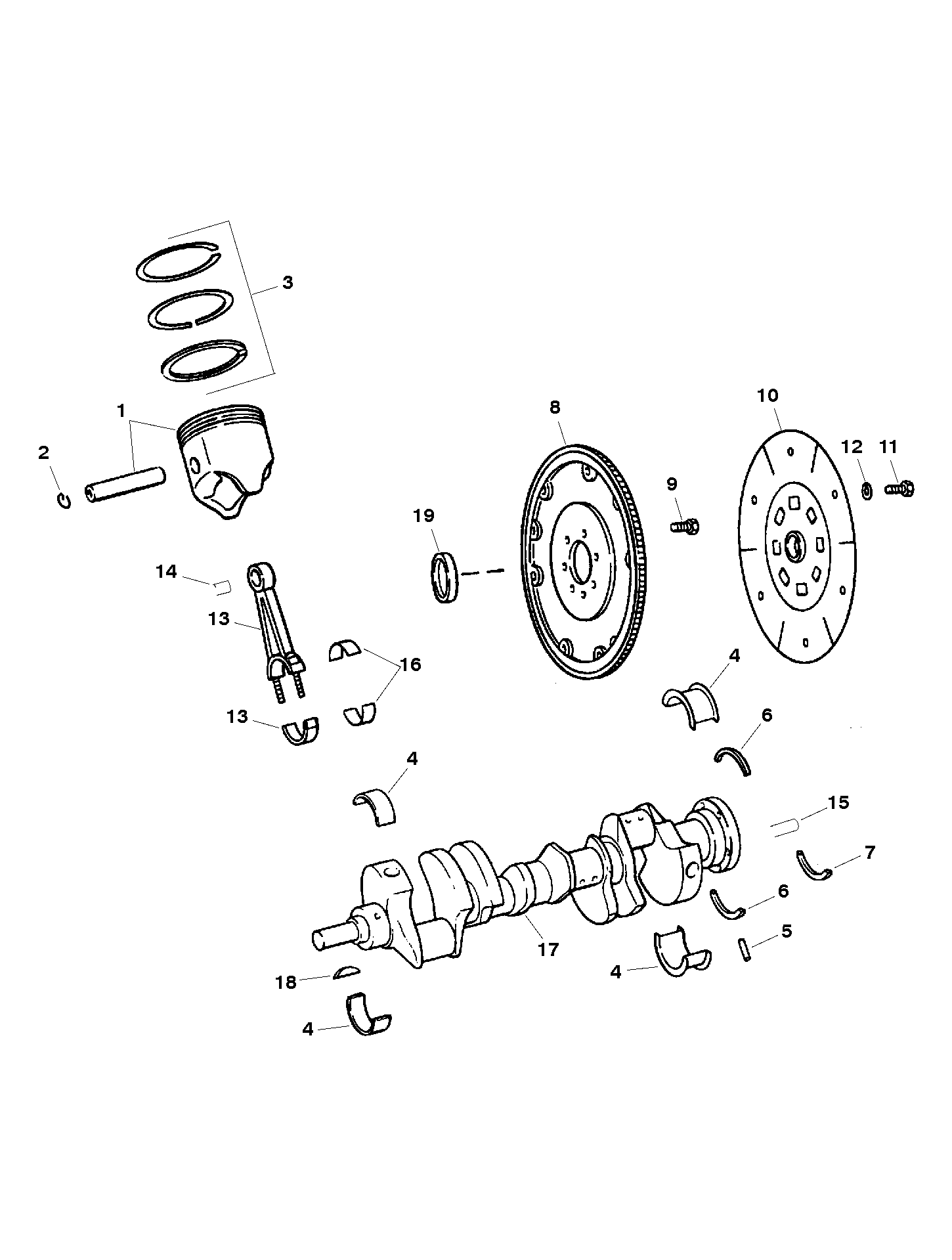

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Note 1: WHEN ORDERING OVERSIZE PISTONS FOR THIS ENGINE, IT IS RECOMMENDED THAT THE CRANKSHAFT, ROD AND PISTON ASSEMBLY BE REBALANCED BEFORE ENGINE IS REBUILT. Note 2: WHEN ORDERING NEW STANDARD PISTONS, OIL RAIL SUPPORT RING IS INCLUDED. IF RERINGING ENGINE ONLY, OIL RAIL SUPPORT RING HAS TO BE ORDERED SEPARATELY. |
|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 2709-847683 | PISTON ASSEMBLY | 8 | This Part is No Longer Available (STANDARD) 2 | |||||
| NS | 849140 | RING SUPPORT-Oil Rail | 8 | This Part is No Longer Available (SEE NOTE #2) 1 | |||||
| 2 | 17799 | RETAINER-Piston Pin (Two Per Piston) | 32 | This Part is No Longer Available | |||||
| 3 | 39-847684 | RING KIT-Piston | 1 | This Part is No Longer Available (STANDARD) 2 | |||||
| 1 | 2709-847683T1 | PISTON ASSY (.030 OS) | 8 | 2709-847683A1 | This Part is No Longer Available (SEE NOTE #1) | ||||
| 2 | 17799 | RETAINER-Piston Pin (Two Per Piston) | 32 | This Part is No Longer Available | |||||
| 3 | 39-847684030 | RING SET-Piston (.030 OS) | 1 | This Part is No Longer Available | |||||
| 4 | 8M0051198 | BEARING SET-Main | 1 | 31-848112 | (STANDARD) 2 | ||||
| 4 | 23-842402 | BEARING SET-Main | AR | 31-848113 | (.001 US) 2,4 | ||||
| 4 | 23-8M0053549 | BEARING SET-Main | AR | 23-6117110 | (.010 US) 2,4 | ||||
| 4 | 8M0053743 | BEARING SET-Main | AR | 31-848114 | (.001 OS) 2,4 | ||||
| 5 | 17-843378 | PIN-Dowel (.250 Dia.) | 2 | 17-35312 | 2 | ||||
| 6 | 26-14756 | SEAL-Oil | 1 | 2,5 | |||||
| 7 | 15-98184 | SHIM-Oil Seal | AR | This Part is No Longer Available 2,4 | |||||
| 8 | 230-742412 | FLYWHEEL | 1 | 230-74241 | This Part is No Longer Available 2 | ||||
| 9 | 10-845757 | SCREW (.437-20 x 1.00) | 6 | 10-49845 | 2 | ||||
| 10 | 8M0051206 | DRIVEPLATE | 1 | 816618 | |||||
| 11 | 10-35091 | SCREW (.375-16 x 1.00) | 12 | ||||||
| 12 | 13-35048 | LOCKWASHER (.375) | 12 | ||||||
| 13 | 622-79291 | CONNECTING ROD ASSEMBLY | 8 | This Part is No Longer Available 2 | |||||
| 14 | 42839 | BUSHING-Conn Rod (Wrist Pin End) | AR | 2,4 | |||||
| 15 | 17-816986 | PIN-Dowel-Crankshaft | 1 | This Part is No Longer Available 2 | |||||
| 16 | 23-841447A1 | BEARING SET-Conn Rod | 1 | 31-848110 | This Part is No Longer Available (STANDARD) 2 | ||||
| 16 | 23-841449A1 | BEARING SET-Conn Rod | AR | 31-848115 | This Part is No Longer Available (.001 US) 2,4 | ||||
| 16 | 23-8M0030982 | BEARING SET-Conn Rod | AR | 23-6117010 | (.010 US) 2,4 | ||||
| 16 | 23-841448A1 | BEARING SET-Conn Rod | AR | 31-848111 | This Part is No Longer Available (.001 OS) 2,4 | ||||
| 17 | 498-847682T | CRANKSHAFT | 1 | 498-847682 | This Part is No Longer Available 2 | ||||
| 18 | 28-34466 | KEY-Crankshaft | 2 | 2 | |||||
| 19 | 23-823108 | BUSHING-Pilot-Crankshaft | 1 | (DRIVELINE MODELS) | |||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available | |||||
