800 SC (Gen 4-5) GM 572 V8 1991-1996 - Serial 0D763836 and Up - Oil Cooler, Filter And Adaptor (0F615830 And Up)

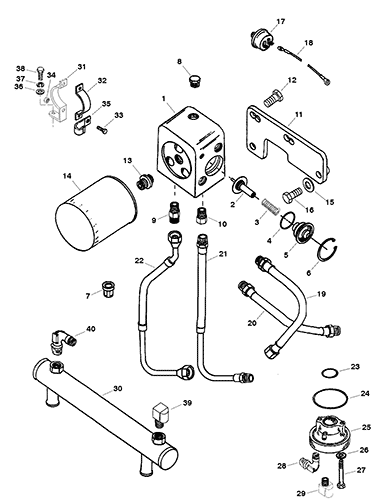

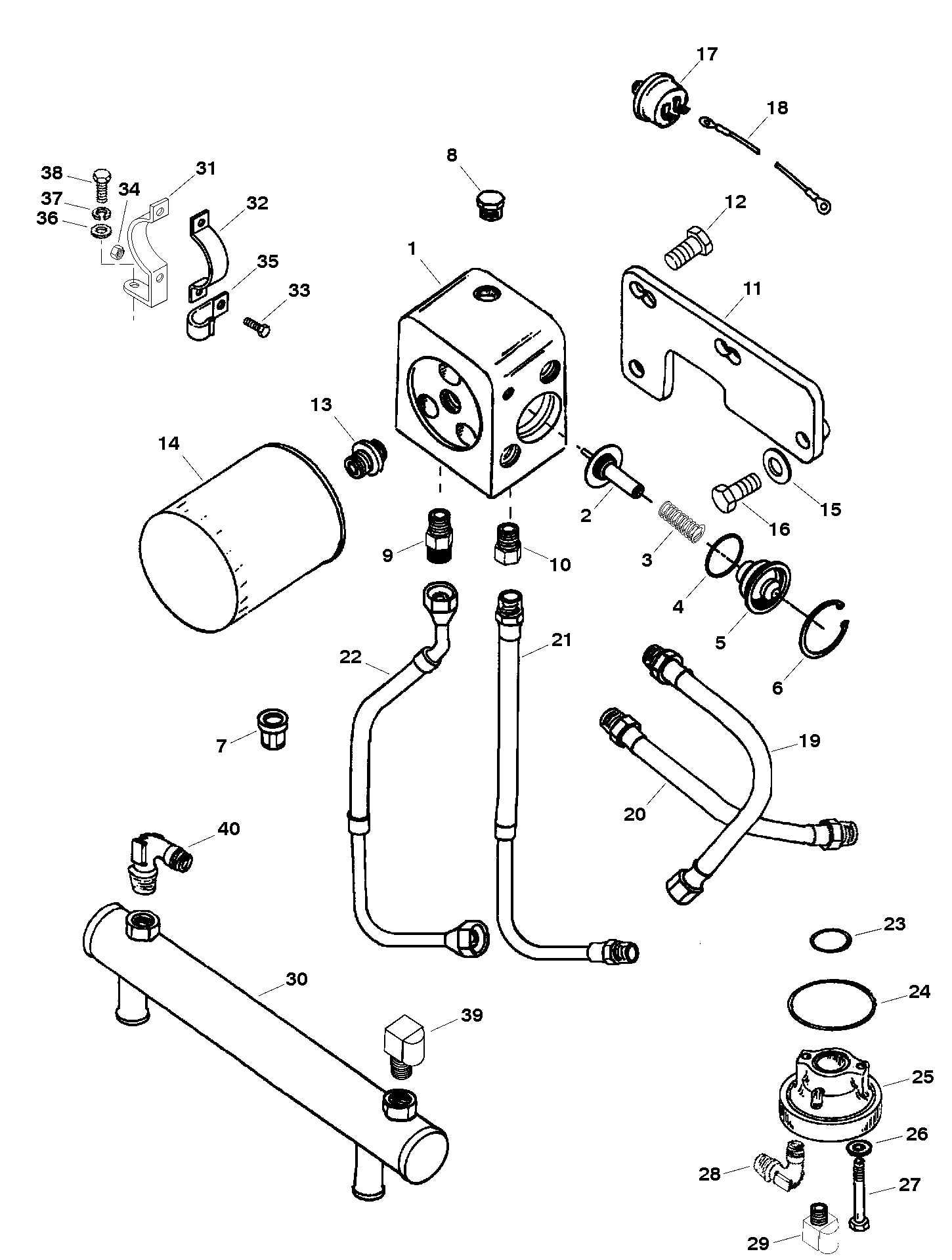

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage (Page 1 0F 2)
- Carburetor And Linkage (Page 2 0F 2)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (0F348742 And Below)
- Cylinder Head And Rocker Cover (0F615830 And Up)
- Distributor And Ignition Components
- Driveshaft And Tailstock (Driveline)
- Electrical Components (0D763836 Thru 0F877725)
- Electrical Components (0K000223 And Up)
- Exhaust Manifold Assembly
- Flywheel Housing (Transmission Models)
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler (Transmission)
- Oil Cooler, Filter And Adaptor (0F348742 And Down)
- Oil Cooler, Filter And Adaptor (0F615830 And Up)
- Oil Pan And Oil Pump
- Power Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-808011A1)
- Supercharger
- Thermostat Housing And Water Hoses
- Transmission And Components - VI Drive (Bravo) (Pg 1 0F 2)
- Transmission And Components - VI Drive (Bravo) (Pg 2 0F 2)
- Transmission And Components (Driveline)
- Transmission Components (Plug In) (Page 1 0F 2)
- Transmission Components (Plug In) (Page 2 0F 2)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 848555T | ADAPTOR-Remote Oil Filter | 1 | 848555 | |||||
| 2 | 816163 | THERMOSTAT | 1 | ||||||
| 3 | 24-816162 | SPRING | 1 | ||||||
| 4 | 25-864701 | O RING | 1 | 25-47632 | |||||
| 5 | 8161651 | COVER-Oil Thermostat | 1 | ||||||
| 6 | 53-848571 | RING-Snap | 1 | ||||||
| 7 | 99889 | VALVE-By Pass | 1 | ||||||
| 8 | 22-32804 | PLUG (.500-14) | 1 | ||||||
| 9 | 22-806186 | FITTING | 1 | ||||||
| 10 | 22-805563 | FITTING | 1 | ||||||
| 11 | 8485562 | BRACKET-Oil Adaptor | 1 | ||||||
| 12 | 10-99204 | SCREW (.437-14 x 1.00) | 2 | ||||||
| 13 | 22-805632 | CONNECTOR-Oil Filter | 1 | ||||||
| 14 | 35-16595Q | FILTER-Oil | 1 | 35-16595 | |||||
| 15 | 12-45175 | WASHER (.375 ID) | 1 | ||||||
| 15 | 12-45176 | WASHER (.437 ID) | 1 | ||||||
| 16 | 10-35047 | SCREW (.375-16 x 1.250) | 1 | ||||||
| 16 | 10-825427 | SCREW (.437-14 x 1.250) | 1 | ||||||
| 17 | 87-94009 | SWITCH-Choke | 1 | ||||||
| 18 | 84-848879A1 | CABLE ASSY | 1 | (SENDER TO CHOKE) (SER. #0F615830 THRU 0F877725) | |||||
| 18 | 84-79139A29 | CABLE ASSY | 1 | This Part is No Longer Available (SENDER TO COIL) (SERIAL #0F615830 THRU 0F877725) |
|||||
| 18 | 84-848879A1 | CABLE ASSY | 1 | (SENDER TO CHOKE & COIL) (SERIAL # 0K000223 & UP) | |||||
| 19 | 32-8485742 | HOSE ASSEMBLY (14.500 In.) | 1 | ||||||
| 20 | 32-848577 | HOSE ASSEMBLY (19.00 In.) | 1 | ||||||
| 21 | 32-848575 | HOSE ASSEMBLY-Remote Oil To Adaptor | 1 | ||||||
| 22 | 32-848576 | HOSE ASSEMBLY-Remote Oil To Adaptor | 1 | ||||||
| 23 | 25-26855 | 676-9-76541 | O RING | 1 | 2,5 | ||||
| 24 | 25-32507 | O RING | 1 | 2,5 | |||||
| 25 | 8141531 | ADAPTOR-Oil Filter | 1 | 2 | |||||
| 26 | 12-36533 | WASHER | 2 | 2 | |||||
| 27 | 10-67450 | SCREW (.312-18 x 2.250) | 2 | 2 | |||||
| 28 | 22-706811 | ELBOW (90 Degrees) | 1 | 2 | |||||
| 29 | 22-47630 | ELBOW | 1 | 2 | |||||
| 30 | 816482T | COOLER-Oil | 1 | 816482 | |||||
| NS | 817043 | END CAP | 2 | 1 | |||||
| NS | 27-817042 | GASKET | 2 | 1 | |||||
| NS | 8M0039163 | O RING | 2 | 25-814878 | 1 | ||||
| NS | 10-816767 | SCREW | 2 | 1 | |||||
| 31 | 12820 | BRACKET-Oil Cooler | 2 | ||||||
| 32 | 56328A1 | BRACKET-Oil Cooler | 2 | ||||||
| 33 | 10-60300 | SCREW (.250-28 x .750) | 4 | ||||||
| 34 | 11-30506 | NUT (.250-28) | 4 | ||||||
| 35 | 54-15095 | J CLIP | 1 | ||||||
| 36 | 12-20553 | WASHER | 2 | ||||||
| 37 | 13-35048 | LOCKWASHER (.375) | 2 | ||||||
| 38 | 10-34353 | SCREW (.375-16 x 1.00) | 2 | ||||||
| 39 | 22-47630 | ELBOW | 1 | ||||||
| 40 | 22-706811 | ELBOW (90 Degree) | 1 | ||||||
| - | 27-822740A3 | GASKET SET-Engine Overhaul | 1 | This Part is No Longer Available |
