225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Cowling

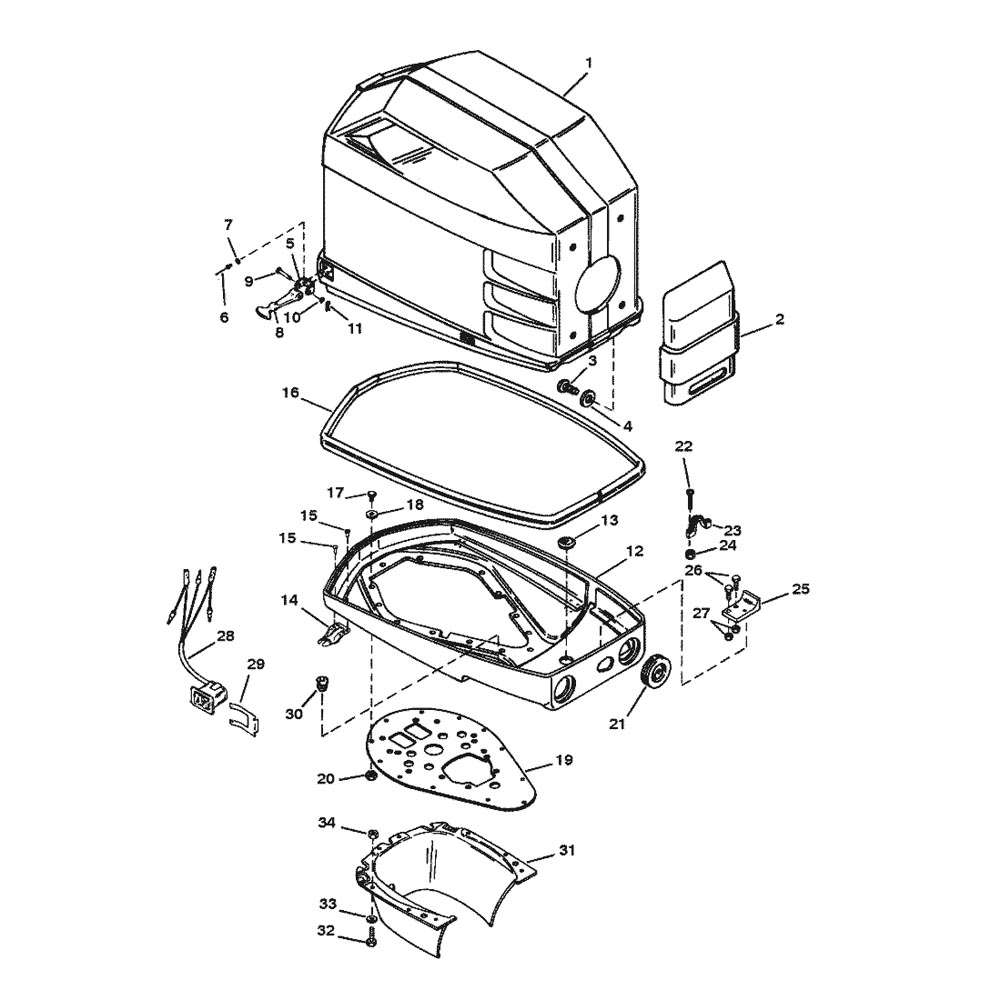

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 4006-817704T22         TOP COWL 1 817704A22
1 4006-817704T23         TOP COWL 1 817704A23 No Longer Available
2 817706A3         FRONT COVER 1
2 817706A4         FRONT COVER 1 No Longer Available
3 10-69570         SCREW 4
4 12-22887         WASHER 4
5 71602         YOKE (BLACK) 4
5 716021         YOKE (GRAY) 4
6 17-816771         RIVET 12
7 12-847883         WASHER 12
8 817708         HOLD DOWN 4
9 17-58712         CLEVIS PIN 4
10 12-847883         WASHER 4
11 18-210711         COTTER PIN 4 21071
12 4007-848164T11         BOTTOM PAN 1 848164A11 No Longer Available
12 4007-848164T12         BOTTOM PAN 1 848164A12 No Longer Available
13 19-815784         CAP PLUG 2
14 13734         RETAINER 4
14 137341         RETAINER 4
15 17-848172         RIVET 16
16 817712003         SEAL 1 8177121
17 10-38601         SCREW 11
18 12-29245         WASHER 11
19 8221883         PLATE 1 No Longer Available
20 11-826709109         NUT 11 35045
21 25-8177133         GROMMET 2
22 10-690201         SCREW 2 69020
23 88621         RETAINER 1 No Longer Available
24 11-826709106         NUT 2 29488
25 847897         FUEL CONNECTOR BRACKET 1 No Longer Available
26 10-28668   676-9-78127 700-22440   SCREW (1/4-20 X 7/8 IN.) 2
27 11-814101         NUT 2
28 87-8M0042301         SWITCH ASSEMBLY 1 18286A40
29 8M0032848         RETAINER 1 8124431
30 25-12602002         GROMMET 1 126021
31 4016-847894T1         SKIRT 1 847894A1
31 4016-847894A2         SKIRT 1 No Longer Available
32 10-69028         SCREW (1/4-28 X 3/4 IN.) 8
33 12-35462         WASHER 16
34 11-826709109         NUT 8 35045
