225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Crankshaft, Pistons And Connecting Rods

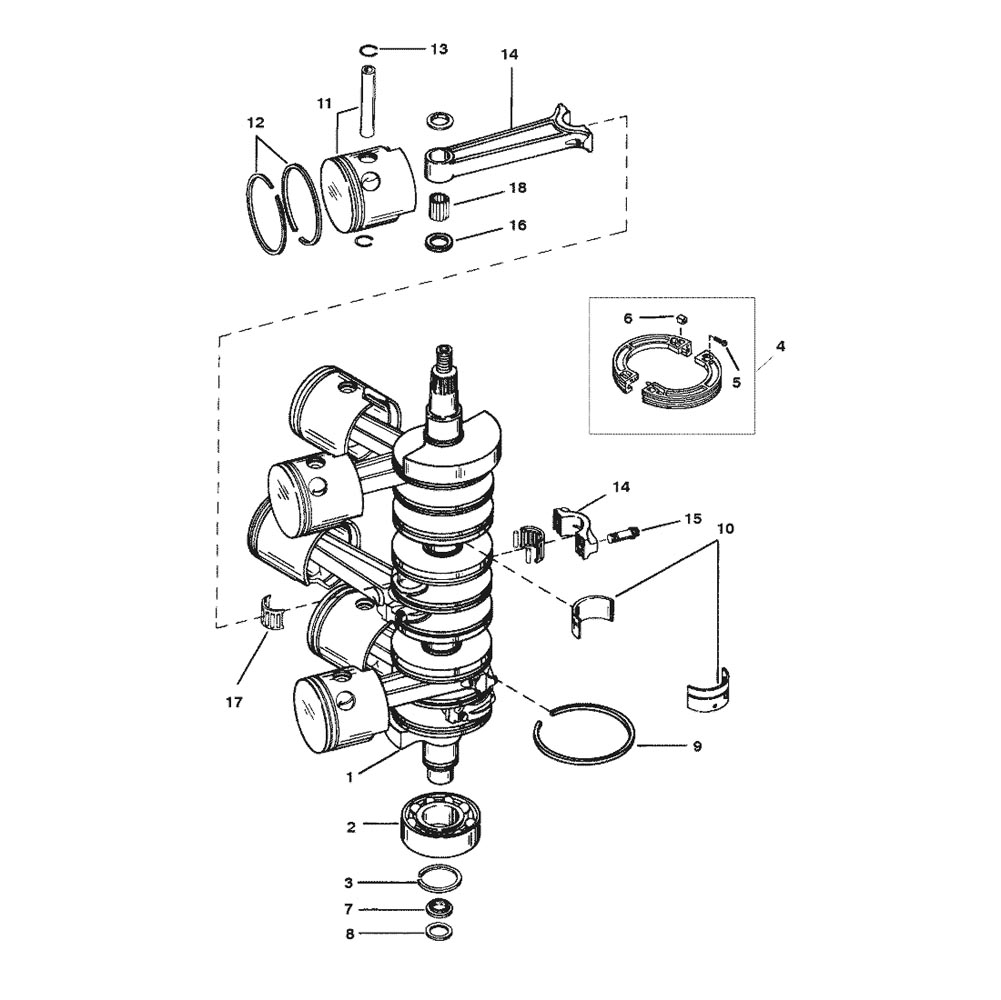

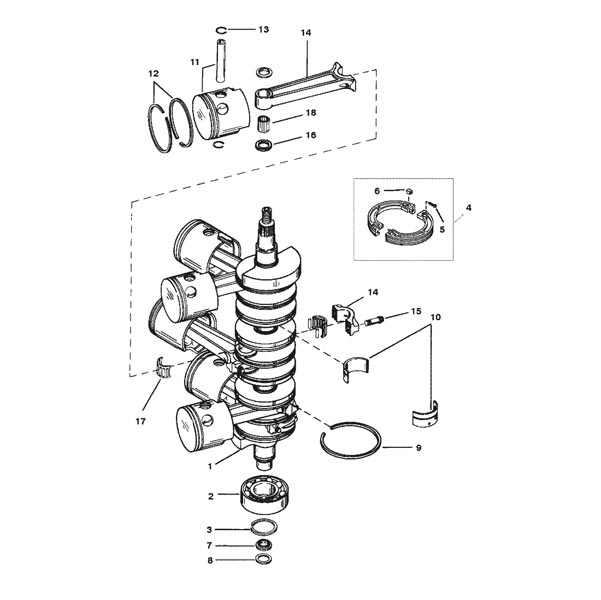

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 455-9536T4         CRANKSHAFT ASSEMBLY 1
1 455-850690T1         CRANKSHAFT ASSEMBLY 1 No Longer Available
2 30-67923T         BALL BEARING (LOWER) 1
3 53-67446         RETAINING RING 1
4 43-14513A09         DRIVE GEAR 1 14513A2
5 10-813073         SCREW 2
6 11-813134         NUT 2
7 54196A6         CARRIER ASSEMBLY 1
8 65800         SEAL 1
9 39-67377T         RING-SEALING 7 67377
10 31-16756A6         ROLLER BEARING 2
11 785-841089T1         PISTON 3
11 785-841088T1         PISTON 3
12 39-840684A12         PISTON RING 1
13 53-857196         LOCK RING 12
14 644-818141A13         CONNECTING ROD ASSEMBLY 6 818141A2
15 10-763491         SCREW 12
16 12-8M0012298         WASHER 12 812876
17 31-8M0045428         ROLLER BEARING ASSEMBLY 6 17514A2
18 29-822553         NEEDLE BEARING-PISTON END 174
- 27-813859A95         GASKET SET 1
- 809430T01         POWERHEAD 1 809430T95
