225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Flywheel, Starter Motor And Ignition Coils

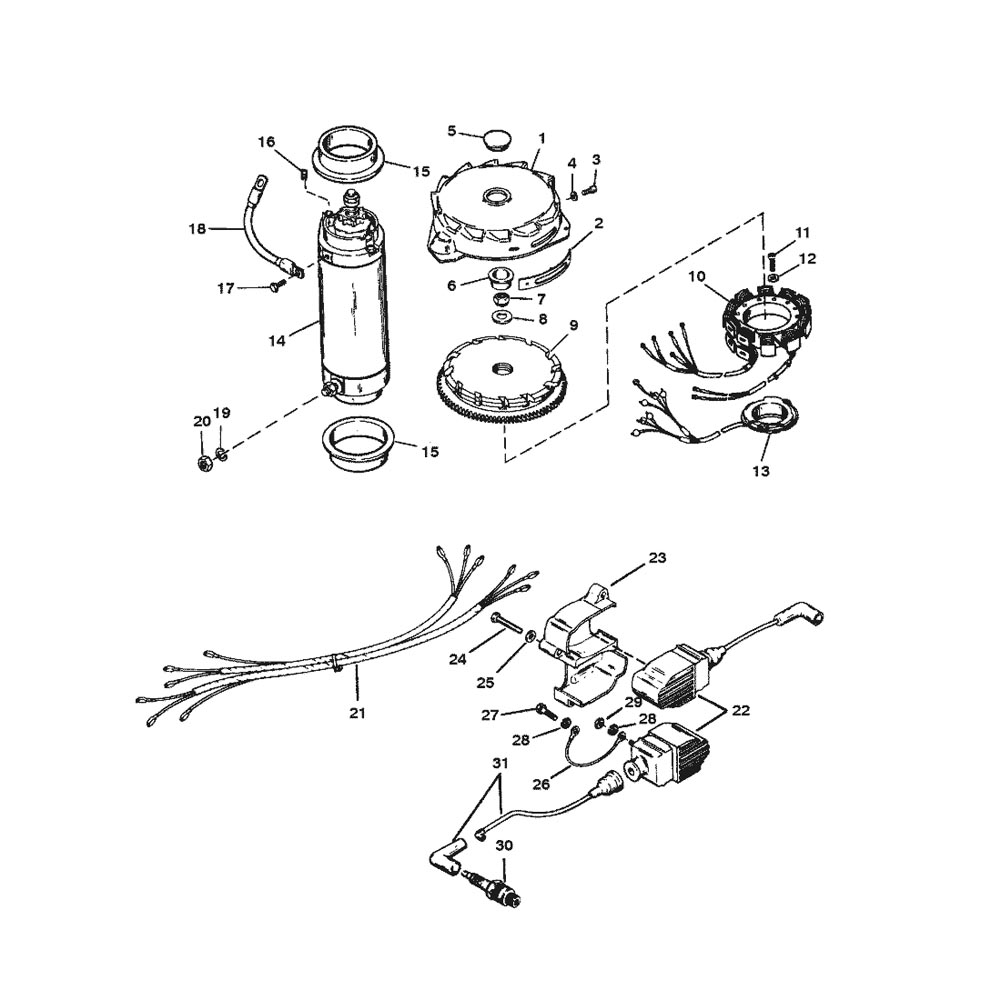

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 18896A1         FLYWHEEL COVER ASSEMBLY 1
2 79022         MARKER 1
3 10-37572         SCREW 2
4 12-72761         WASHER 2
5 19-89219001         PLUG (USE WHERE APPLICABLE) 1 89219 No Longer Available
6 19-45907         PLUG 1
7 11-52901         NUT 1
8 12-33001         WASHER 1 68229
9 271-859238T16         FLYWHEEL 1 817632A12
10 398-9610A27         STATOR 1
11 10-90045         SCREW 4
12 13-26996         WASHER 4
13 96455A9         TRIGGER PLATE ASSEMBLY 1
14 50-893893         STARTER MOTOR 1 79472
15 8M0034918         COLLAR 2 56703
16 8M0043376         RUBBER STOP 2 68042
17 10-69035         SCREW 1
18 84-93388A1         WIRE ASSEMBLY (BLACK) 1
19 13-26992         LOCKWASHER 1
20 11-20890         NUT 1
21 84-69739A7         HARNESS ASSEMBLY 1
22 339-832757A4         IGNITION COIL 6 7370A19
23 79743         COVER 3
24 10-88447         SCREW (1-5/8 IN.) 12
25 12-30164         WASHER 12
26 84-88807A6         GROUND STRAP (BLACK) 6
27 10-68513         SCREW 6
28 13-26996         LOCKWASHER 18
29 11-45076         NUT 12
30 33-14103550         SPARK PLUG 6
31 84-815358A1         HIGH TENSION CABLE 1
