225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROPELLER Shaft)(Cle)

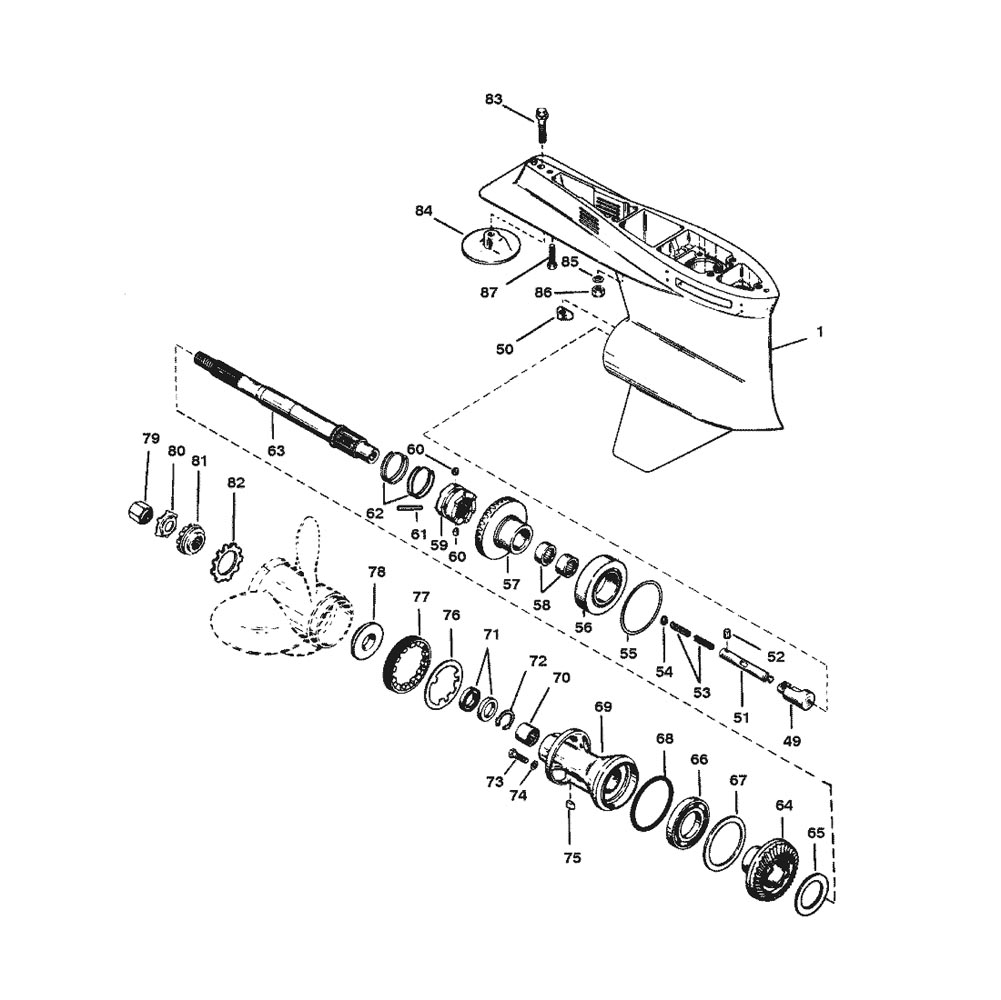

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1685-840560T34         GEAR HOUSING 1 847902A82
- 1685-840560T34         GEAR HOUSING 1 847902A83
1 1685-8M0083306         GEAR HOUSING 1 847902A15
1 1685-8M0083306         GEAR HOUSING 1 847902A16
49 89594A1         CAM FOLLOWER 1
50 789562         SHIFT CAM 1 78956
51 79911A1         ROD 1
52 17-8M0084245         PIN 1 78906
53 24-79910         SPRING 2
54 12-78910         WASHER 2
55 15-47397A1         SHIM AR
56 31-78172A1         TAPERED ROLLER BEARING 1
57 43-44104A7         FORWARD GEAR SET (INCLS. REVERSE GEAR) 1
58 31-549281         ROLLER BEARING 1
59 52-42672T         RATCHET 1 42672
60 17-78909         DETENT PIN 2
61 17-42671         CROSS PIN 1
62 24-78962         SPRING 2
63 44-822820F1         PROPELLER SHAFT 1 No Longer Available
64 43-822824A1         REVERSE GEAR 1
65 23-822823         THRUST RING 1
66 30-88957T         BALL BEARING 1 88957
67 681001         THRUST RING 1
68 25-31534         O-RING 1
69 848840A1         BEARING CARRIER 1 847610A1
70 31-817072         ROLLER BEARING 1
71 26-815565         OIL SEAL 2
72 53-817071         SNAP RING 1
73 22-8M0058389         DRAIN SCREW (MAGNETIC) 1 67892A1
74 12-191833         SEALING WASHER 1 19183
75 28-30281         KEY 1
76 14-79447         TAB WASHER 1
77 158401         COVER 1
78 13171T1         THRUST HUB 1 131711 No Longer Available
79 11-52707Q1         PROPELLER NUT 1 52707A1
80 14-816629Q         TAB WASHER 1 816629
81 12-31211Q03         WASHER 1 31211A2
82 13-423511         LOCKWASHER 1
83 10-66024         SCREW 1
84 76214Q5         ANODIC PLATE 1 76214A5
85 12-822836         WASHER 2
86 11-859116         NUT 2 134391
87 10-30206         SCREW 1
- 27-813859A95         GASKET SET 1
- 26-89238A3         SEAL KIT 1
