225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Cylinder Block And End Caps

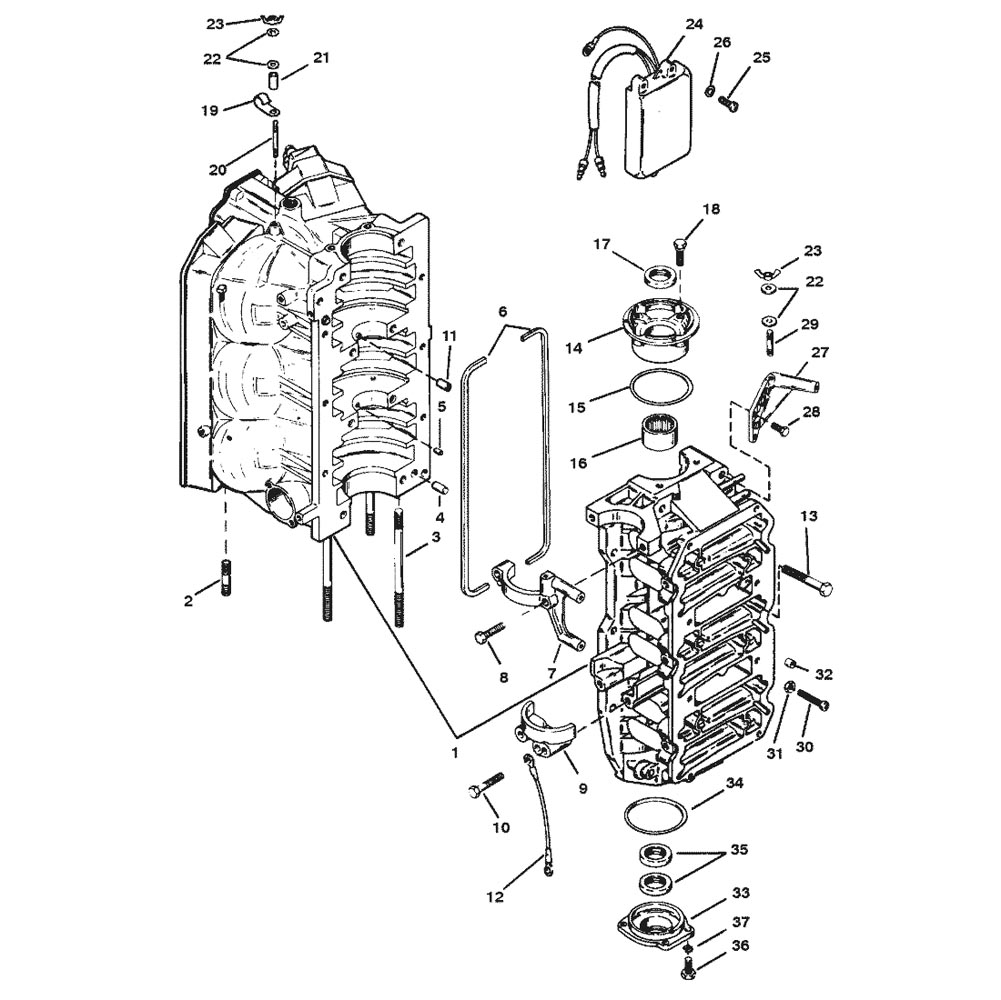

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 884-9763T65         CYLINDER BLOCK 1 9763A62
2 16-8M0034443         STUD (1-3/4 IN.) 6 847530
3 16-670654         STUD (5-1/2 IN.) 2 67065
3 16-8M0034454         STUD (6-3/4 IN.) 2 78438
4 17-43044         DOWEL PIN 2
5 17-8M0036405         DOWEL PIN (BEARING RACE) 2 67296
6 27-11338         GASKET 2
7 8M0088723         COVER (UPPER) 1 42249
8 10-828213         SCREW 2
9 76867         COVER (LOWER) 1
10 10-828214         SCREW (2 IN.) 2
11 23-99448         BUSHING 1
12 84-88807A20         CABLE ASSEMBLY 1
13 10-66717         SCREW (3-1/4 IN.) 8
13 10-74824         SCREW (1-1/4 IN.) 6
14 1159-858521T1         UPPER END CAP ASSEMBLY 1 9642A1
15 25-54029         O-RING 1
16 31-16756A4         ROLLER BEARING 1
17 26-41953         OIL SEAL 1
18 10-30225         SCREW (1 IN.) 4 69034
19 54-814634         J-CLIP 1
20 16-15094         STUD (1-7/8 IN.) 1
21 23-67269         SPACER 1
22 12-49221         WASHER 3
23 11-816874         NUT 3
24 87076A10         IDLE SPEED CONTROL 1
25 10-690201         SCREW 3 69020
26 12-38833         WASHER 3
27 422482         BRACKET 1 42248
28 10-49668         SCREW (3/4 IN.) 2
29 16-8M0034435         STUD (1 IN.) 2 15093
30 10-64022         ADJUSTING SCREW 1
31 11-64015         JAM NUT 1
32 26852         CAP 1
33 1156-7809T1         LOWER END CAP ASSEMBLY 1 7809A1
34 25-62700         O-RING (3-1/4 IN. I.D.) 1
35 26-41953         OIL SEAL 2
36 10-28636         SCREW (3/4 IN.) 4
37 13-26992         LOCKWASHER 4
- 27-813859A95         GASKET SET 1
- 809430T01         POWERHEAD 1 809430A95
