225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)

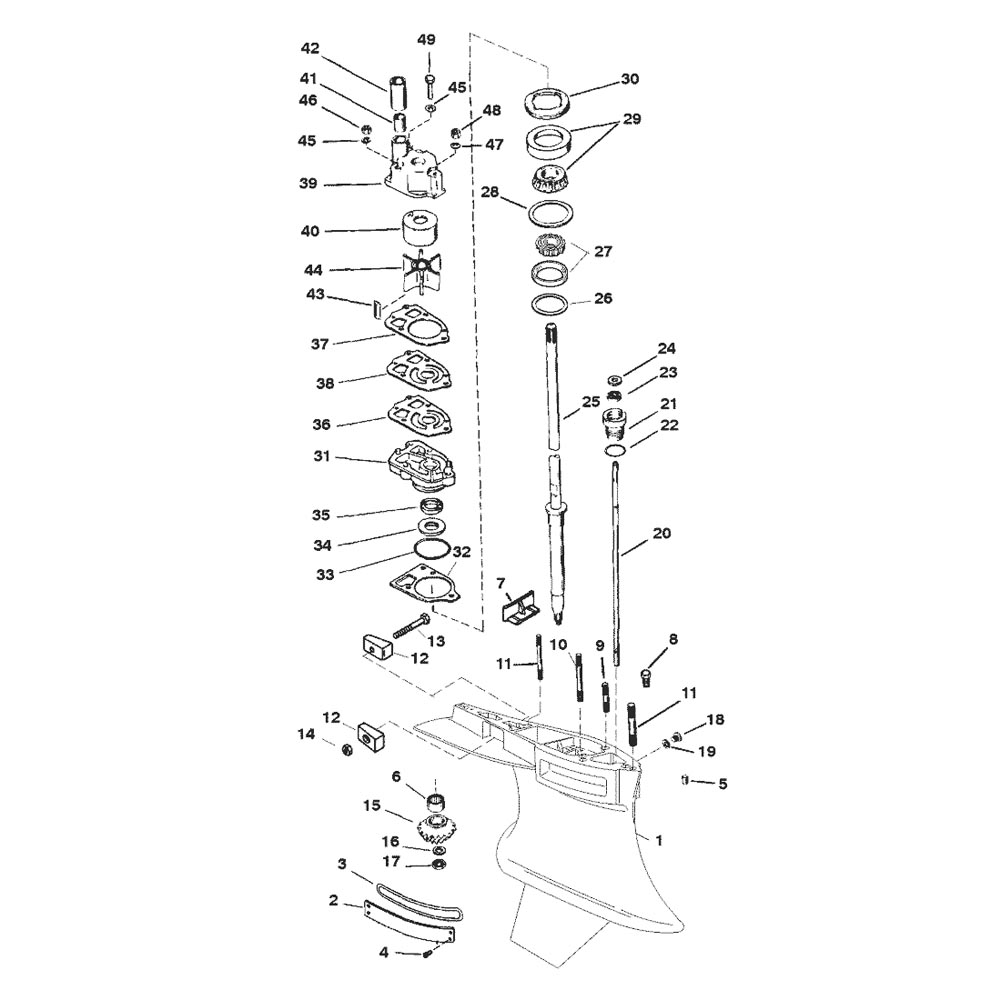

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1687-8M0083306         GEAR HOUSING 1 848450A25
1 1687-8M0084203         GEAR HOUSING 1 848474A39
2 847950T3         COVER 2 8479503 No Longer Available
3 25-34776         O RING 2
4 10-815904         SCREW 12
5 17-43044         DOWEL PIN 2
6 31-42647A1         ROLLER BEARING 1
7 8M0039169         FILLER BLOCK 1 67891
8 22-847949         PIPE PLUG 1
9 16-8M0034463         STUD (5/16 X 3-3/8 IN.) 1 56297
10 16-69501         STUD (5/16 X 3-1/4 IN.) 1
11 16-59579         STUD (7/16 X 2-11/16 IN.)(SHORT/LONG) 3
11 16-786382         STUD (7/16 X 3-1/8 IN.) 1 78638
11 16-579203         STUD (7/16 X 2-1/16 IN.) 2 579201
11 16-74730         STUD (7/16 X 7.06 IN.) 2 No Longer Available
11 16-74732         STUD (7/16 X 7.69 IN.) 3 No Longer Available
11 16-78639         STUD (7/16 X 8-1/8 IN.) 1 No Longer Available
12 826134Q         ANODE 2 826134
13 10-4000333         SCREW 1
14 11-401386         NUT 1 8268336
16 12-92721         WASHER 1
17 11-35921         NUT 1
18 10-79953Q04         SCREW PLUG 1 79953A2
19 12-191833         SEALING WASHER 1 19183
20 789022         SHIFT SHAFT (LOWER) 1
21 23-77631A2         BUSHING ASSEMBLY 1
22 25-25439         O RING 1
23 26-8164641         OIL SEAL 1
24 12-77674         RUBBER WASHER 1
25 45-848449A4         DRIVE SHAFT (SHORT) 1
25 45-848449A5         DRIVE SHAFT (LONG) 1
25 45-848449A6         DRIVE SHAFT (X-LONG) 1
26 15-38657A1         SHIM SET 1 No Longer Available
27 31-48939A2         ROLLER BEARING 1
28 15-42637A1         SHIM SET AR No Longer Available
29 31-36387A1         ROLLER BEARING 1
30 8245191         RETAINER 1 824519
- 26-89238A3         SEAL KIT 1
- 27-813859A95         GASKET SET 1
- 56-90415A24         STUD KIT (LONG) 1 No Longer Available
- 56-90415A25         STUD KIT (X-LONG) 1 No Longer Available
