225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROPELLER Shaft)(Torque Master)

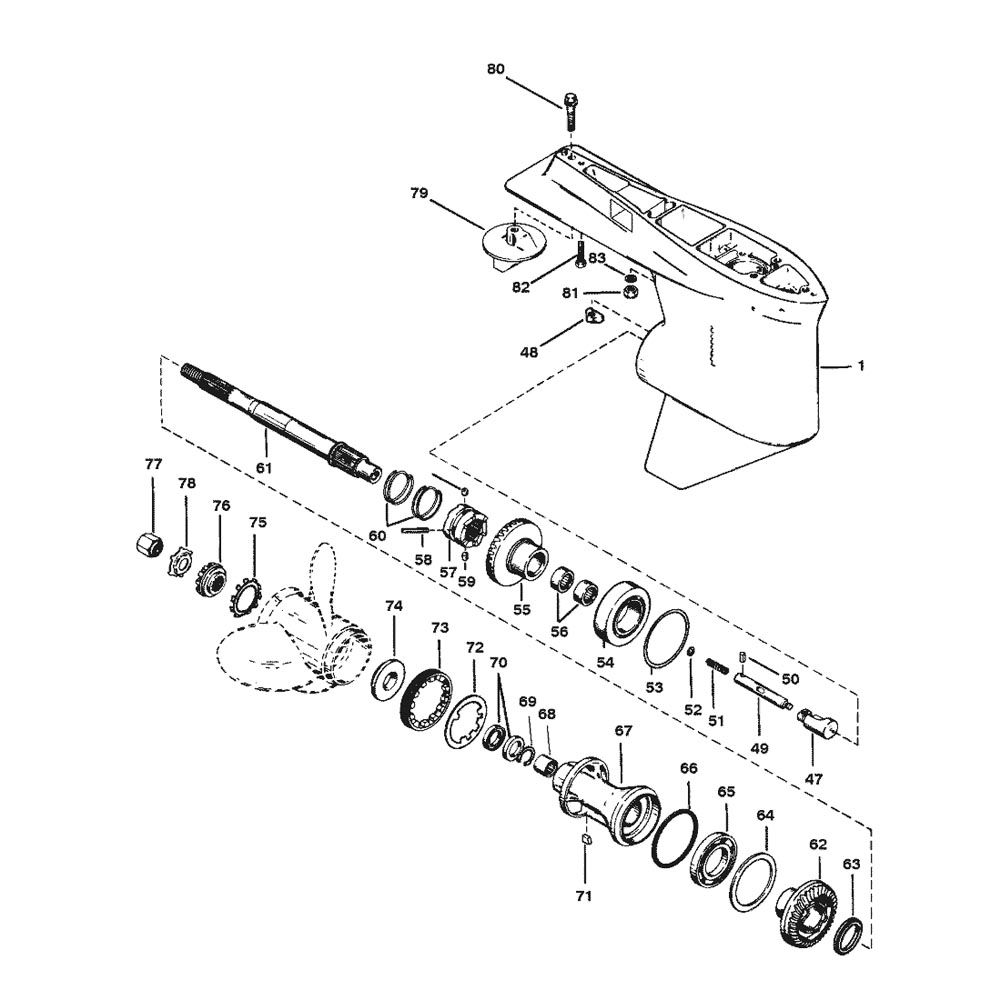

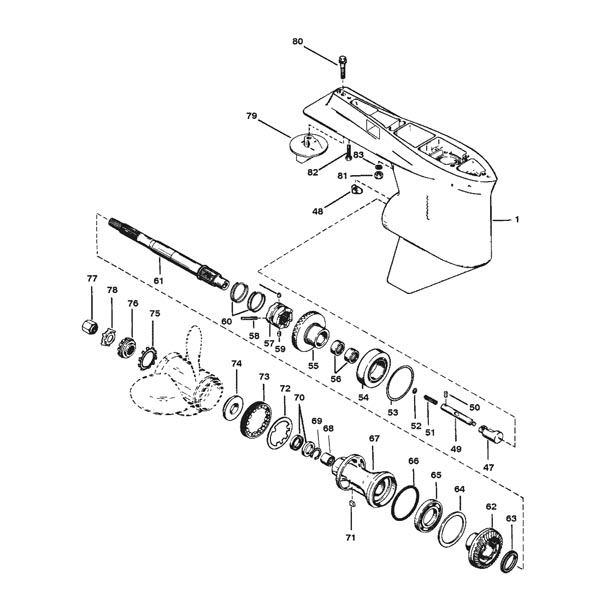

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1686-827214T23         GEAR HOUSING 1 827214A3 No Longer Available
- 1686-827214T23         GEAR HOUSING 1 827214A4 No Longer Available
- 1686-827214T23         GEAR HOUSING 1 827214A10 No Longer Available
1 1686-827214T25         GEAR HOUSING 1 827214A7
1 1686-827214T25         GEAR HOUSING 1 827214A8
1 1686-827214T25         GEAR HOUSING 1 827214A12
47 89594A1         FOLLOWER 1
48 789562         SHIFT CAM 1 78956
49 79911A1         ROD 1
50 17-8M0084245         PIN 1 78906
51 24-79910         SPRING 1
52 12-78910         WASHER AR
53 15-47397A1         SHIM SET AR
54 31-78172A1         TAPERED ROLLER BEARING 1
55 43-44104A7         FORWARD GEAR 1
56 31-549281         ROLLER BEARING 1
57 52-42672T         CLUTCH 1 42672
58 17-42671         CROSS PIN 1
59 17-78909         DETENT PIN 2
60 24-78962         SPRING 2
61 44-822820F1         PROPELLER SHAFT 1 No Longer Available
62 43-822824A1         REVERSE GEAR 1
63 23-824108         THRUST SPACER 1
64 681001         THRUST RING 1
65 30-88957T         BALL BEARING 1 88957
66 25-31534         O-RING 1
67 848840A1         BEARING CARRIER 1 847610A1
68 31-817072         ROLLER BEARING 1
69 53-817071         RETAINING RING 1
70 26-815565         OIL SEAL 2
71 28-30281         KEY 1
72 14-79447         TAB WASHER 1
73 158401         RETAINER 1
74 13171T1         THRUST HUB 1 131711 No Longer Available
75 13-423511         LOCKWASHER 1
76 12-31211Q03         SPLINED WASHER 1 31211A2
77 11-52707Q1         PROPELLER NUT 1 52707A1
78 14-816629Q         TAB WASHER 1 816629
79 76214Q5         ANODIC PLATE 1 76214A5
80 10-66024         SCREW 1
81 11-859116         NUT 2 134391
82 10-30206         SCREW 1
83 12-822836         WASHER 2
- 26-89238A3         SEAL KIT 1
- 27-813859A95         GASKET SET 1
