225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)

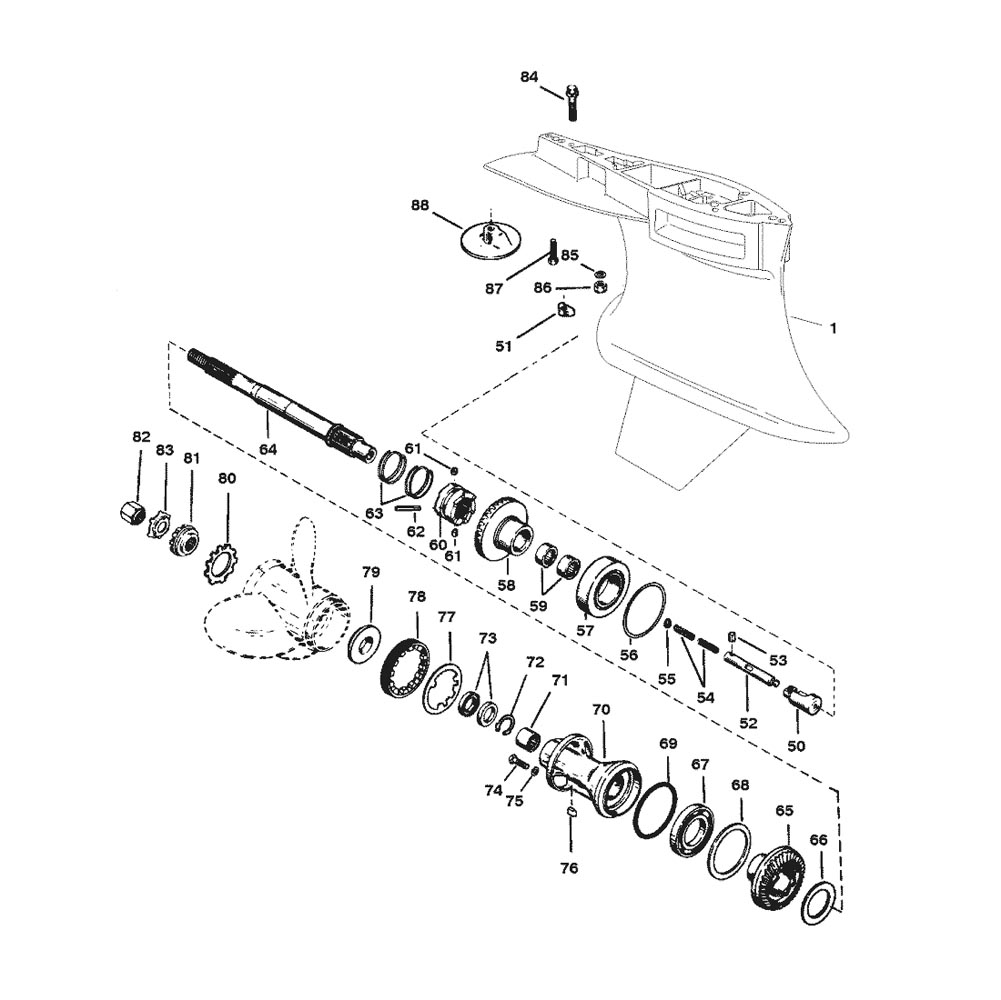

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: The Basic Gear Housing Listed is Generic. It Does Not Include Studs.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1687-8M0083306         GEAR HOUSING (WITH TORQUE TAB) 1 848450A25
1 1687-8M0084203         GEAR HOUSING (WITHOUT TORQUE TAB) 1 848474A39
50 89594A1         CAM FOLLOWER 1
51 789562         SHIFT CAM 1
52 79911A1         ROD 1
53 17-8M0084245         PIN 1 78906
54 24-79910         SPRING 2
55 12-78910         WASHER 2
56 15-47397A1         SHIM SET AR
57 31-78172A1         TAPERED ROLLER BEARING 1
58 43-44104A7         FORWARD GEAR SET (INCLUDES PINION) 1
58 43-44102A5         FORWARD GEAR SET (INCLUDES PINION) 1
58 43-848855T2         GEAR SET 1 848855A2
58 43-849189T2         GEAR SET 1 849189A2
59 31-549281         ROLLER BEARING 1
60 52-42672T         RATCHET 1 42672
61 17-78909         DETENT PIN 2
62 17-42671         CROSS PIN 1
63 24-78962         SPRING 2
64 44-822820F1         PROPELLER SHAFT 1 No Longer Available
65 43-822824A1         REVERSE GEAR (1.87:1 GEAR RATIO) 1
65 43-847632A1         REVERSE GEAR 1
66 23-822823         THRUST RING 1
67 30-88957T         BALL BEARING 1 88957
68 681001         THRUST RING 1
69 25-31534         O RING 1
70 848840A1         BEARING CARRIER 1 847610A1
71 31-817072         ROLLER BEARING 1
72 53-817071         SNAP RING 1
73 26-815565         OIL SEAL 2
74 22-8M0058389         MAGNETIC DRAIN SCREW 1 67892A1
75 12-191833         SEALING WASHER 1 19183
76 28-30281         KEY 1
77 14-79447         TAB WASHER 1
78 158401         COVER 1
79 13171T1         THRUST HUB 1 131711 No Longer Available
80 13-423511         LOCKWASHER 1
81 12-31211Q03         WASHER 1 31211A2
82 11-52707Q1         PROPELLER NUT 1 52707A1
83 14-816629Q         TAB WASHER 1 816629
84 10-41350         SCREW (SHORT) 1
84 10-66024         SCREW (LONG/X-LONG) 1
85 12-822836         WASHER 2
86 11-859116         NUT 2 134391
87 10-30206         SCREW (SHORT/LONG) 1
87 10-15929         SCREW (X-LONG) 1 No Longer Available
88 76214T3         ANODIC PLATE (SHORT) 1 762143
88 76214Q5         ANODIC PLATE (LONG) 1 76214A5
88 76214T1         ANODIC PLATE (X-LONG) 1 762141
- 26-89238A3         SEAL KIT 1
- 56-90415A24         STUD KIT (LONG) 1 No Longer Available
- 56-90415A25         STUD KIT (X-LONG) 1 No Longer Available
