225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Throttle Lever And Shift Shaft

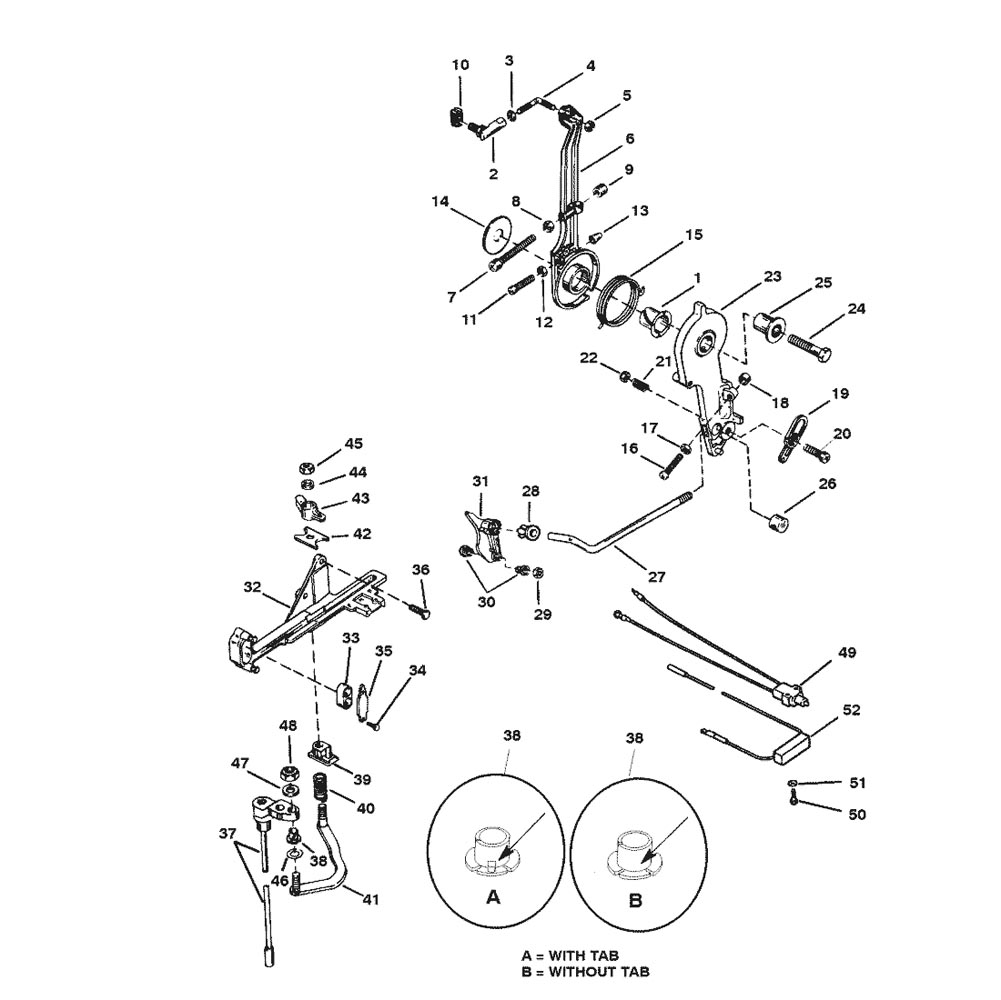

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 23-55171         BUSHING 1
2 62459T         BALL JOINT 1 62459
3 11-45076         NUT 1
4 76035         LINK ROD 1
5 11-46438         NUT 1
6 41094A3         SPARK ADVANCE LEVER 1
7 10-64022         SCREW 1
8 11-64015         NUT 1
9 26852         CAP 1
10 74897T         PIVOT 1 74897
11 10-13627         SCREW (1-1/4 IN.) 1
12 11-68219         NUT 1
13 48039         CAP 1
14 12-46765         WASHER 1
15 24-823235         SPRING 1
16 10-64022         SCREW (2-1/8 IN.) 1
17 11-64015         NUT (1/4-20) 1
18 26852         CAP 1
19 39483         LATCH 1
20 10-69026         SCREW 1
21 24-20099         SPRING 1
22 11-826709109         NUT 1 35045
23 410952         THROTTLE CONTROL LEVER 1 41095
24 10-818165         SCREW (1-3/4 IN.) 1
25 23-55164         BUSHING 1
26 14638         BARREL 1
27 14634         THROTTLE CONTROL ROD 1
28 23-932481         SWIVEL BUSHING 1
29 11-826709109         NUT 1 35045
30 23-26856         BUSHING 2
31 815539T         THROTTLE CAM 1 No Longer Available
32 814283A2         ANCHOR BRACKET 1
33 39519         CAP 1
34 10-42975         SCREW 2
35 98889         LATCH 1
36 10-53167T         SCREW 3 53167
37 79932A16         SHIFT SHAFT ASSEMBLY 1 79932A11
38 23-26600         BUSHING 1 No Longer Available
37 79932A16         SHIFT SHAFT ASSEMBLY 1
38 23-26856         BUSHING 1
39 814284         GUIDE BLOCK 1
40 24-20099         SPRING 1
41 67073A1         LINK ROD ASSEMBLY 1
42 52100         WEAR PLATE 1
43 8M0036768         LATCH 1 38279
44 12-69056         WASHER 1
45 11-826709109         NUT 1 35045
46 13-29720         WAVE WASHER 1
47 12-35462         WASHER 1
48 11-826709109         NUT 1 35045
49 87-814281A1         IDLE STABILIZING SHIFT KIT 1 No Longer Available
50 10-77478         SCREW 2
51 12-27882         WASHER 2
52 17461A3         RESISTOR MODULE 1
