225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)

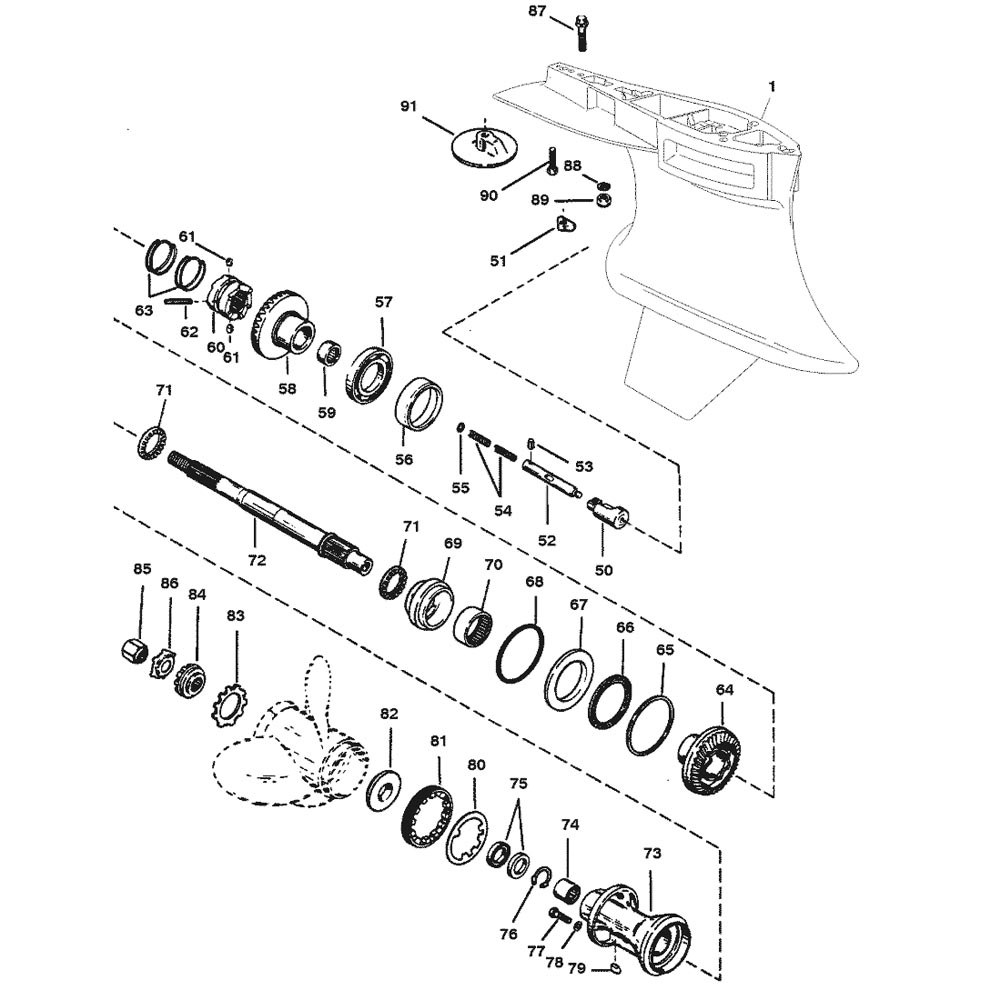

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Note: The Basic Gear Housing Listed is Generic. It Does Not Include Studs. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1687-8M0084203 | GEAR HOUSING (BASIC) | 1 | 848474A39 | |||||
| 50 | 89594A1 | CAM FOLLOWER | 1 | ||||||
| 51 | 789562 | SHIFT CAM | 1 | ||||||
| 52 | 79911A1 | ROD | 1 | ||||||
| 53 | 17-8M0084245 | PIN | 1 | 78906 | |||||
| 54 | 24-79910 | SPRING | 2 | ||||||
| 55 | 12-78910 | WASHER | AR | ||||||
| 56 | 14469T | BEARING CUP | 1 | 14469 | |||||
| 57 | 30-88957T | BALL BEARING | 1 | 88957 | |||||
| 58 | NSS | REVERSE GEAR (PART OF 43-15845A2) | 1 | Not Sold Separate | |||||
| 58 | 43-817516T1 | REVERSE GEAR | 1 | 817516A1 | No Longer Available | ||||
| 59 | 31-15844 | ROLLER BEARING | 1 | ||||||
| 60 | 52-42672T | RATCHET | 1 | 42672 | |||||
| 61 | 17-78909 | DETENT PIN | 2 | ||||||
| 62 | 17-42671 | CROSS PIN | 1 | ||||||
| 63 | 24-78962 | SPRING | 2 | ||||||
| 64 | 43-15845A2 | FORWARD GEAR SET | 1 | ||||||
| 64 | 43-817515T2 | FORWARD GEAR SET | 1 | 817515A2 | |||||
| 65 | 23-176151 | SPACER SHIM (.125 IN.) | AR | ||||||
| 65 | 23-176152 | SPACER SHIM (.127 IN.) | AR | ||||||
| 65 | 23-176153 | SPACER SHIM (.129 IN.) | AR | ||||||
| 65 | 23-176154 | SPACER SHIM (.131 IN.) | AR | ||||||
| 65 | 23-176155 | SPACER SHIM (.133 IN.) | AR | ||||||
| 65 | 23-176156 | SPACER SHIM (.135 IN.) | AR | ||||||
| 65 | 23-176157 | SPACER SHIM (.137 IN.) | AR | ||||||
| 65 | 23-176158 | SPACER SHIM (.139 IN.) | AR | ||||||
| 65 | 23-176159 | SPACER SHIM (.141 IN.) | AR | ||||||
| 65 | 23-1761510 | SPACER SHIM (.143 IN.) | AR | ||||||
| 65 | 23-1761511 | SPACER SHIM (.145 IN.) | AR | ||||||
| 65 | 23-1761512 | SPACER SHIM (.147 IN.) | AR | ||||||
| 65 | 23-1761513 | SPACER SHIM (.149 IN.) | AR | ||||||
| - | 56-90415A24 | STUD KIT (LONG) | 1 | No Longer Available | |||||
| - | 56-90415A25 | STUD KIT (X-LONG) | 1 | No Longer Available | |||||
