225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (DRIVE Shaft)(Cle)

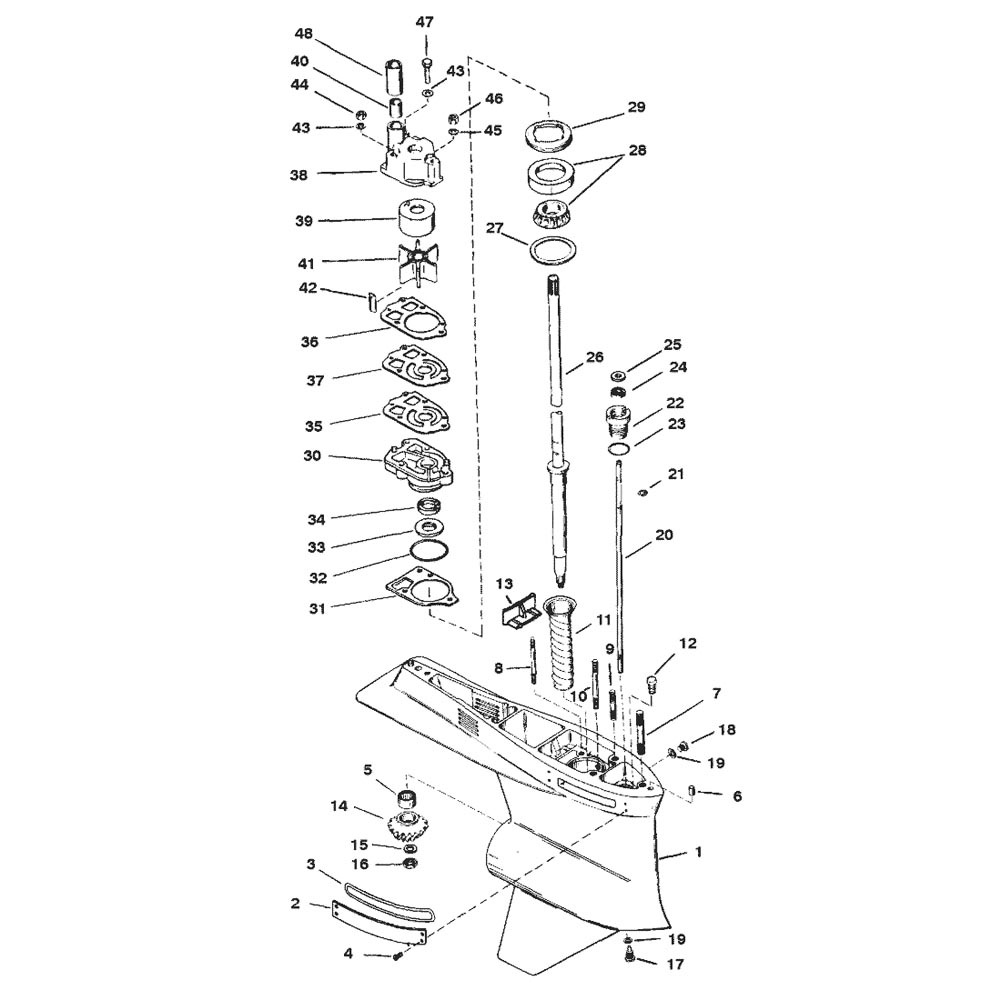

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1685-840560T34         GEAR HOUSING 1 847902A82
- 1685-840560T34         GEAR HOUSING 1 847902A83
1 1685-8M0083306         GEAR HOUSING 1 847902A15
1 1685-8M0083306         GEAR HOUSING 1 847902A16
2 8479501         COVER 2 No Longer Available
2 8479502         COVER 2 No Longer Available
3 25-34776         O-RING 2
4 10-815904         SCREW 12
5 31-42647A1         ROLLER BEARING 1
6 17-43044         DOWEL PIN 2
7 16-786382         STUD (3-1/8 IN.) 1 78638
8 16-579203         STUD (2-1/16 IN.) 2 579201
9 16-8M0034463         STUD (3-3/8 IN.) 1 56297
10 16-69501         STUD (3-1/4 IN.) 2
11 23-43998         SLEEVE 1 No Longer Available
12 22-847949         PIPE PLUG 1
13 8M0039169         FILLER BLOCK 1 67891
14 NSS         PINION GEAR (PART OF 43-44104A7) 1 Not Sold Separate
15 12-92721         WASHER 1
16 11-35921         NUT 1
17 22-8M0058389         DRAIN SCREW (MAGNETIC) 1 67892A1
18 10-79953Q04         SCREW 1 79953A2
19 12-191833         SEALING WASHER 2 19183
20 789022         SHIFT SHAFT (LOWER) 1
21 53-29641         E-RING (USE WHERE APPLICABLE) 1
22 23-77631A2         BUSHING ASSEMBLY 1
23 25-25439         O-RING 1
24 26-8164641         OIL SEAL 1
25 12-77674         RUBBER WASHER 1
26 45-848449A5         DRIVE SHAFT 1
27 15-42637A1         SHIM ASSEMBLY AR No Longer Available
28 31-36387A1         ROLLER BEARING 1
29 8245191         RETAINER 1 824519
30 46-44292A3         WATER PUMP BASE ASSEMBLY 1
31 27-426311         GASKET 1
32 25-896523         O-RING 1 90011
33 26-89238         OIL SEAL 1
34 26-16977         OIL SEAL 1
35 27-18051         GASKET (LOWER) 1
36 27-858524         GASKET (UPPER) 1 856091
37 324351         FACE PLATE 1 32435
38 46-96148T1         WATER PUMP BODY ASSEMBLY 1 96148A1
39 48752T         INSERT 1 48752
40 26-38970         SEAL 1
41 47-89984T4         IMPELLER 1 899842
42 28-8M0032834         KEY 1 56654
43 12-29245         WASHER 2
44 11-8267119         NUT 2 13438
45 12-36001         WASHER 1
46 11-13436         NUT 1
47 10-96411         SCREW (2-1/4 IN.) 1
48 23-29804T         SLEEVE 1 29804
- 27-813859A95         GASKET SET 1
- 26-89238A3         SEAL KIT 1
