225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (DRIVE Shaft)(Torque Master)

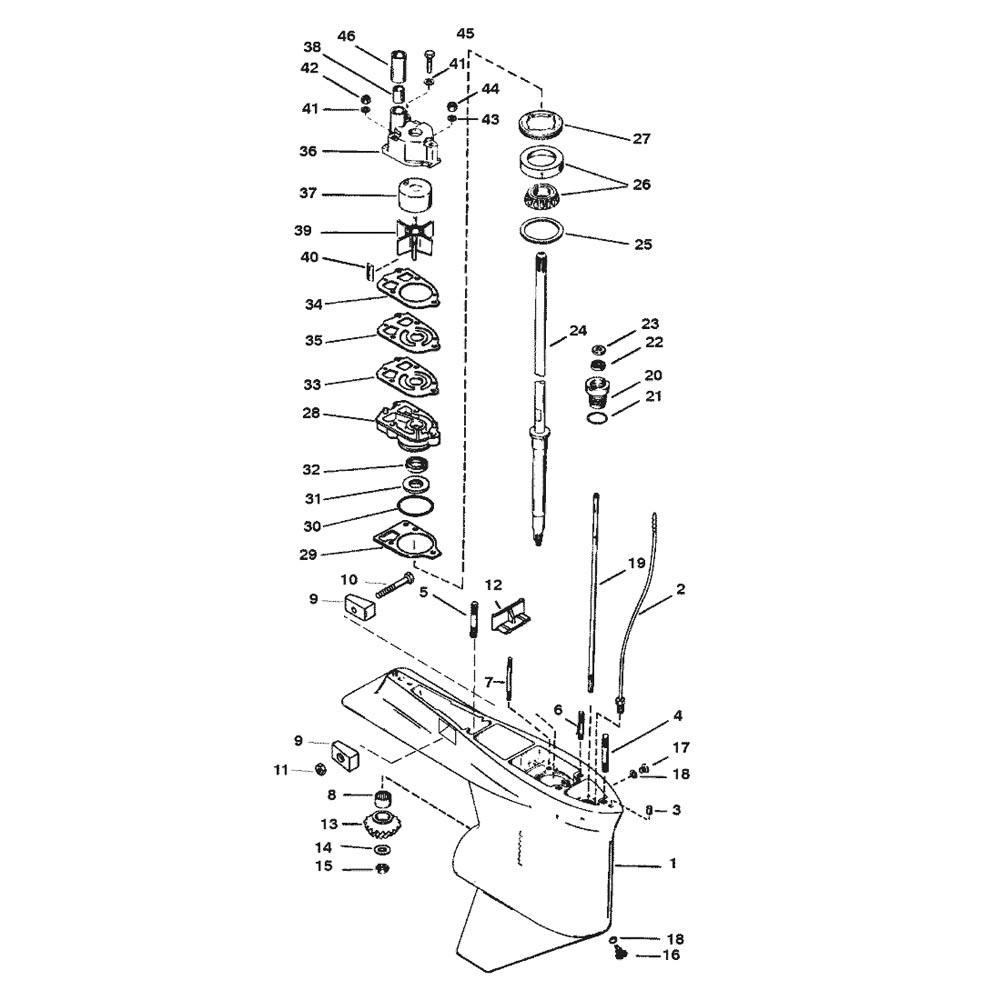

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1686-827214T23         GEAR HOUSING 1 827214A3 No Longer Available
- 1686-827214T23         GEAR HOUSING 1 827214A4 No Longer Available
- 1686-827214T23         GEAR HOUSING 1 827214A10 No Longer Available
1 1686-827214T25         GEAR HOUSING 1 827214A7
1 1686-827214T25         GEAR HOUSING 1 827214A8
1 1686-827214T25         GEAR HOUSING 1 827214A12
2 22-85822A10         CONNECTOR 1
3 17-43044         DOWEL PIN 2
4 16-786382         STUD (3-1/8 IN.) 1 78638
5 16-579203         STUD (2-1/16 IN.) 2 579201
6 16-8M0034463         STUD (3-3/8 IN.) 1 56297
7 16-69501         STUD 2
8 31-42647A1         ROLLER BEARING 1
9 826134Q         ANODE 2 826134
10 10-4000333         SCREW 1
11 11-401386         NUT 1 8268336
12 8M0039169         FILLER BLOCK 1 67891
13 NSS         PINION GEAR (PART OF 43-13742A2) 1 Not Sold Separate
14 12-92721         WASHER 1
15 11-35921         NUT 1
16 22-8M0058389         SCREW-DRAIN (MAGNETIC) 1 67892A1
17 10-79953Q04         SCREW-GREASE FILLER 1 79953A2
18 12-191833         WASHER 2 19183
19 789022         SHIFT SHAFT 1
20 23-77631A2         BUSHING ASSEMBLY 1
21 25-25439         O-RING 1
22 26-8164641         OIL SEAL 1
23 12-77674         WASHER 1
24 45-848449A5         DRIVE SHAFT 1
25 15-42637A1         SHIM ASSEMBLY AR No Longer Available
26 31-36387A1         ROLLER BEARING 1
27 8245191         RETAINER 1 824519
28 46-44292A3         WATER PUMP BASE 1
29 27-426311         GASKET 1
30 25-896523         O RING 1 90011
31 26-89238         OIL SEAL 1
32 26-16977         OIL SEAL 1
33 27-18051         GASKET-LOWER 1
34 27-858524         GASKET-UPPER 1 856091
35 324351         FACE PLATE 1 32435
36 46-96148T1         WATER PUMP BODY 1 96148A1
37 48752T         INSERT 1 48752
38 26-38970         RUBBER SEAL 1
39 47-89984T4         IMPELLER 1 899842
40 28-8M0032834         KEY 1 56654
41 12-29245         WASHER 2
42 11-8267119         NUT 2 13438
43 12-36001         WASHER 1
44 11-13436         NUT 1
45 10-96411         SCREW (2-1/4 IN.) 1
46 23-29804T         SLEEVE 1 29804
- 46-96148A8         WATER PUMP REBUILD KIT 1 96148A5
- 26-89238A3         SEAL KIT 1
- 27-813859A95         GASKET SET 1
