225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)

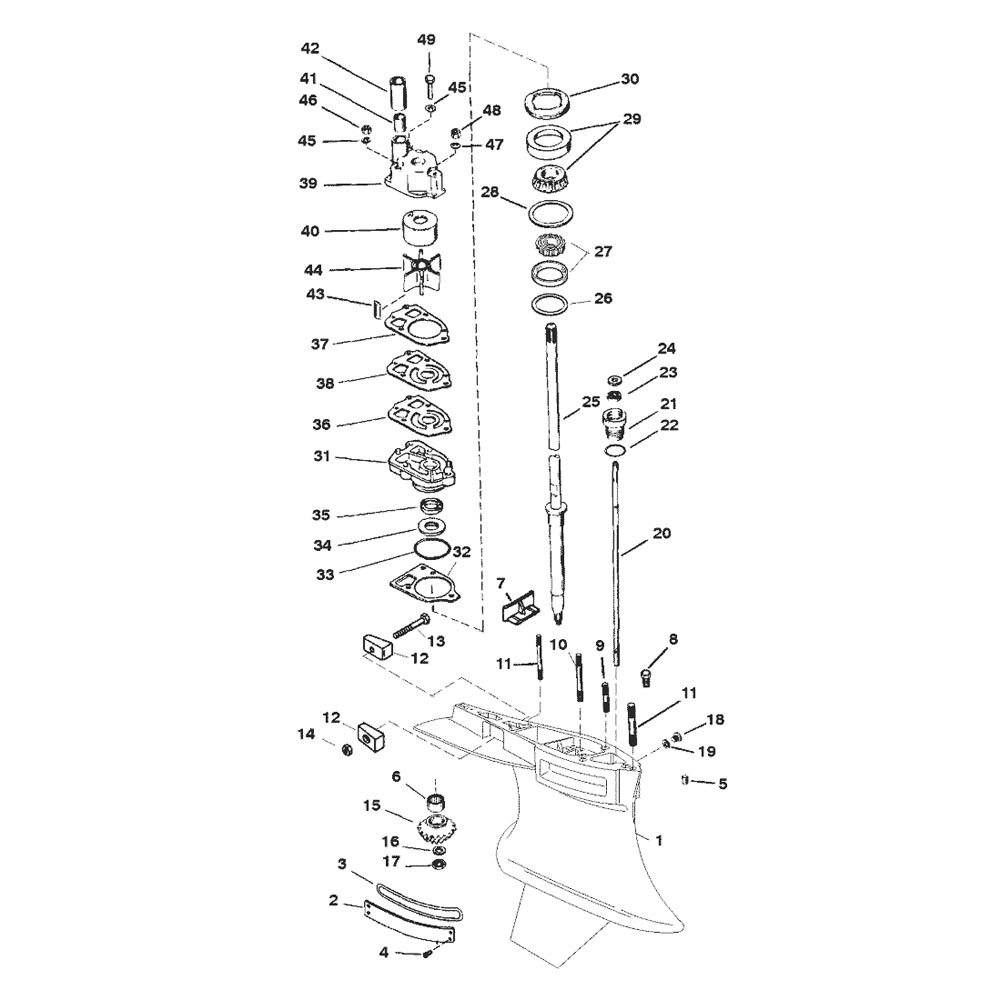

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: The Basic Gear Housing Listed is Generic. It Does Not Include Studs.
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1687-8M0083306         GEAR HOUSING (WITH TORQUE TAB) 1 848450A25
1 1687-8M0084203         GEAR HOUSING (WITHOUT TORQUE TAB) 1 848474A39
31 46-44292A3         WATER PUMP BASE ASSEMBLY 1
32 27-426311         GASKET 1
33 25-896523         O RING 1 90011
34 26-89238         OIL SEAL 1
35 26-16977         OIL SEAL 1
36 27-18051         GASKET (LOWER) 1
37 27-858524         GASKET (UPPER) 1 856091
38 324351         FACE PLATE 1 32435
39 46-847710T1         WATER PUMP BODY ASSEMBLY 1 847710A1
40 48752T         INSERT 1 48752
41 26-88397         SEAL 1
42 23-847685         SLEEVE 1
39 46-96148T1         WATER PUMP BODY ASSEMBLY 1 96148A1
40 48752T         INSERT 1 48752
41 26-38970         SEAL 1
42 23-29804T         SLEEVE 1 29804
43 28-8M0032834         KEY 1 56654
44 47-89984T4         IMPELLER 1 899842
45 12-29245         WASHER 2
46 11-8267119         NUT 2 13438
47 12-36001         WASHER 1
48 11-13436         NUT 1
49 10-96411         SCREW (2-1/4 IN.) 1
- 26-89238A3         SEAL KIT 1
- 27-813859A95         GASKET SET 1
- 56-90415A24         STUD KIT (LONG) 1 No Longer Available
- 56-90415A25         STUD KIT (X-LONG) 1 No Longer Available
