225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Drive Shaft Housing And Exhaust Tube

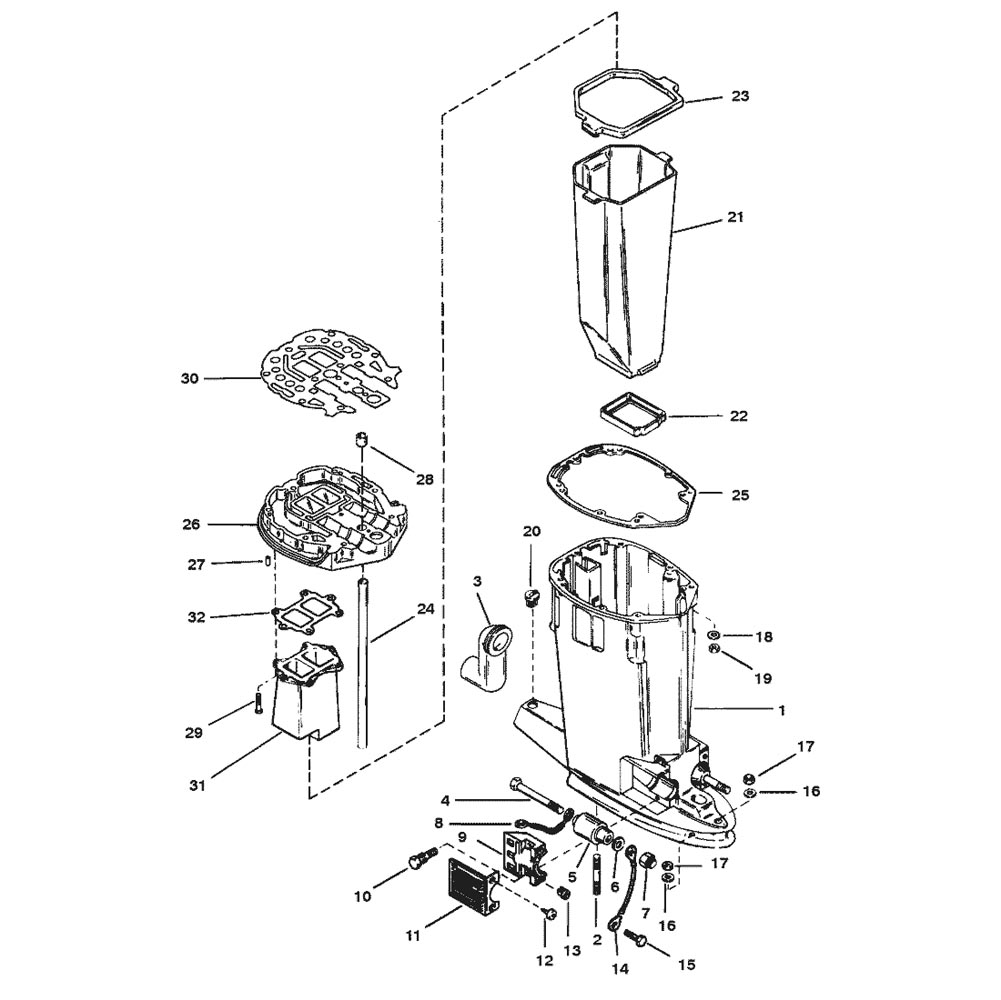

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1590-8343T15         DRIVE SHAFT HOUSING 1 8343A15
1 1590-8343T15         DRIVE SHAFT HOUSING 1 8343A16
2 16-579203         STUD 2 579201
3 8146181         IDLE EXHAUST BOOT 1 No Longer Available
4 10-898831         SCREW 2 63474
5 816054T1         LOWER MOUNT 2 816054
6 12-816056         WASHER 4
7 11-898832         NUT 2 28040
8 88238A10         GROUND WIRE 1
9 54-8M0036782         CLAMP 2 67076
10 10-66727         SCREW (1-1/4 IN.) 4
11 8M4500752         COVER 2 67077T
11 67077F1         COVER 2 No Longer Available
12 10-88417         SCREW (5/8 IN.) 4
13 11-35521         NUT 4
14 88238A10         GROUND WIRE 1
15 10-41508         SCREW 1
16 12-822836         WASHER 3
17 11-859116         NUT 3 134391
18 12-822838         WASHER 4
19 11-46335         NUT 4
20 19-64649         PLUG 1
21 18276T         EXHAUST TUBE 1 18276
22 66350001         SEAL (LOWER) 1 66350
23 8M0039076         SEAL (UPPER) 1 177261
24 32-8M0042788         WATER TUBE (LONG) 1 67295
24 32-8M0042790         WATER TUBE (X-LONG) 1 74729
25 27-991734         GASKET 1 991732
26 18233A5         PLATE ASSEMBLY 1 No Longer Available
27 17-43044         DOWEL PIN 2
28 26-38970         SEAL 1
29 10-90192         SCREW 6
30 27-183074         GASKET 1 183073
31 879288T71         EXHAUST EXTENSION (7-1/2 IN.) 1 41942F3
32 27-782461         GASKET 1 78246
- 27-813859A95         GASKET SET 1
