225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Transom Brackets

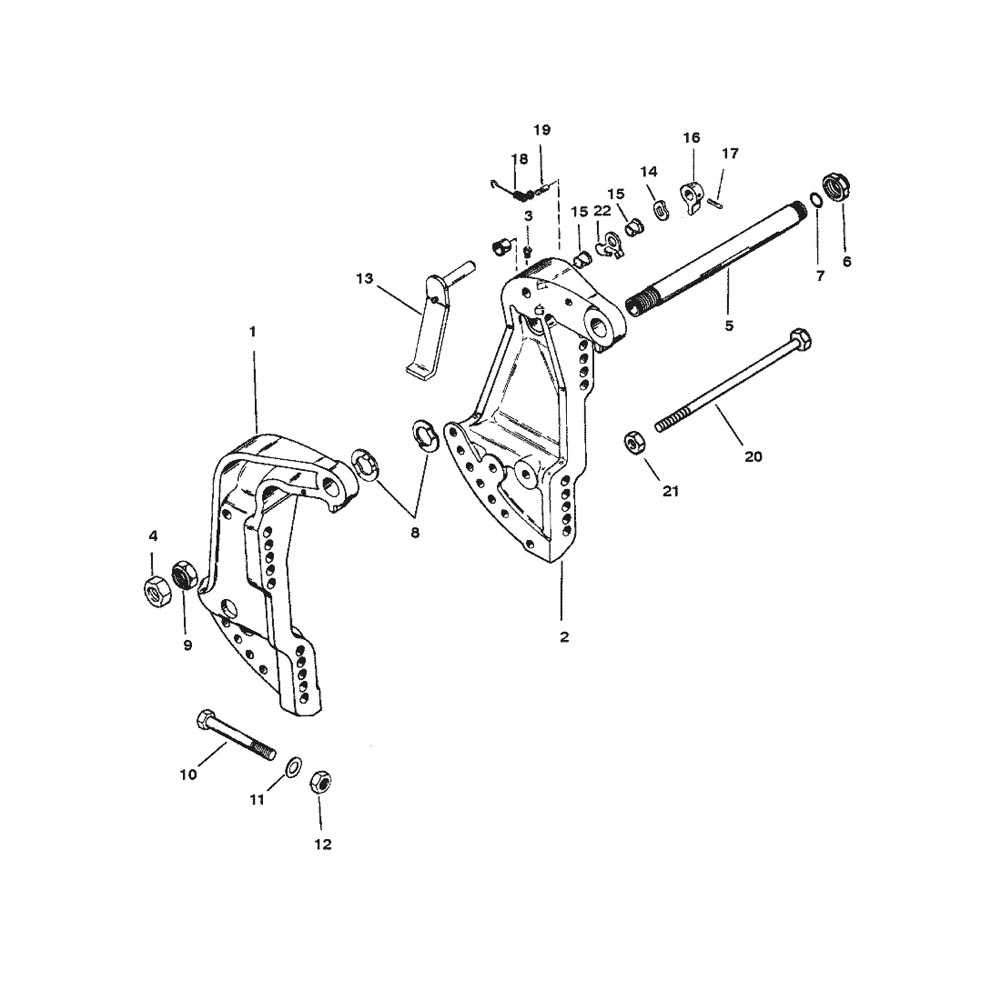

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 3401-8718F7         TRANSOM BRACKET (STARBOARD) 1 No Longer Available
2 3400-8716A8         TRANSOM BRACKET (PORT) 1 No Longer Available
1 3401-8718F8         TRANSOM BRACKET (STARBOARD) 1 No Longer Available
2 3400-8716A9         TRANSOM BRACKET (PORT) 1 No Longer Available
3 22-98727         GREASE FITTING (PORT) 1
4 11-8M0041651         JAM NUT 1 37984
5 99170A2         TILT TUBE 1 No Longer Available
6 11-826135         NUT (1 IN.-14) 1
7 25-45711         O-RING 1
8 13-88750         WAVE WASHER 2
9 11-826164         NUT (7/8-14) 1
10 10-677551         BOLT (4-1/2 IN.) 4
10 10-677552         BOLT (6-1/2 IN.) 4
11 12-28421         WASHER 4
12 11-82671117         NUT 4 No Longer Available
13 8M0115104         TILT LOCK LEVER ASSEMBLY 1 99629A2
14 13-99611         WAVE WASHER 1
15 23-65830         BUSHING 2
16 99633         KNOB 1
17 17-99615         GROOVE PIN 1
18 24-99622         SPRING 1
19 17-99604         GROOVE PIN 1
20 10-96930A1         BOLT ASSEMBLY 1
21 11-23161         NUT 1
22 814207         STOP 1 No Longer Available
